  • Visaton FR58-8 2-1/4" Full-Range Paper Cone Driver 8 Ohm

Visaton FR58-8 2-1/4" Full-Range Paper Cone Driver 8 Ohm

VisatonPart # 292-714
Model: FR58-8
The Visaton FR58-8 is a 2.3" full-range speaker featuring a coated paper cone and a rubber surround for enhanced durability. With a very linear and wide frequency response, it's versatile for a range of applications including Hi-Fi systems.

Key Features

  • Rated power of 10W and maximum power of 12W
  • Very linear and wide frequency response from 120–20000 Hz
  • Excellent performance across temperature range of -40 °C to +100 °C
  • IP64 protection to resist dust and splashes
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $10.98
Bulk Pricing
Quantity:Qty: 1-9 $10.98/ea
Quantity:Qty: 10+ $10.10/ea
2 In Stock
Get Notified When Available

We'll send you an email when Visaton FR58-8 2-1/4" Full-Range Paper Cone Driver 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FR58-8 2-1/4" Full-Range Paper Cone Driver 8 Ohm

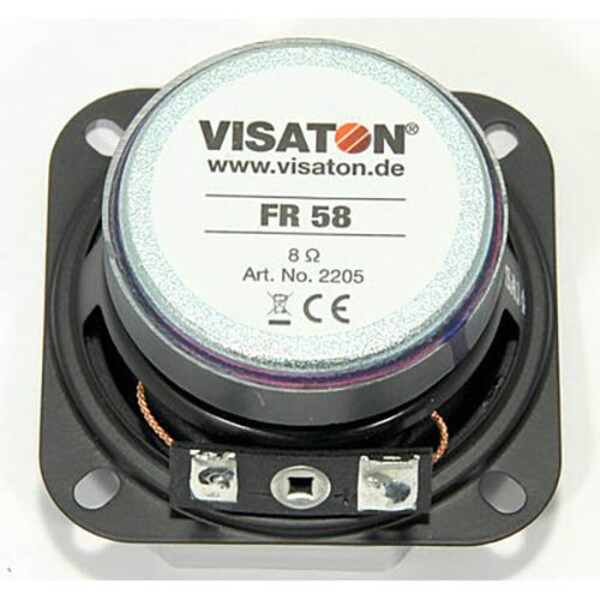

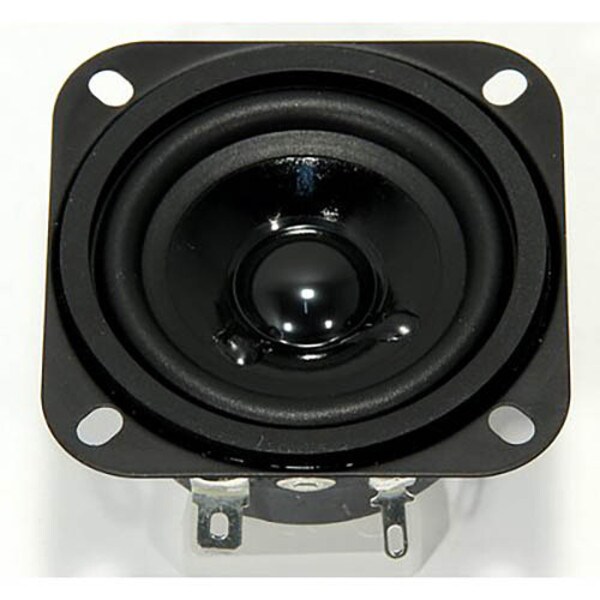

The Visaton FR58-8 is a 2.3" full-range speaker designed for versatility and durability. Featuring a coated paper cone and a rubber surround, it is built to deliver quality sound over a long lifespan. Its squared metal basket comes with 4 mounting holes and a rubber gasket, simplifying installation and ensuring a secure fit. The FR58-8 stands out with its very linear and wide frequency response, ranging from 120–20000 Hz. This wide frequency range, combined with a low resonant frequency of 190 Hz, makes it suitable for a multitude of applications, from custom audio projects to Hi-Fi systems. With a rated power of 10W and a maximum power of 12W, the FR58-8 is capable of delivering strong audio performance. It also excels in different environments, offering excellent performance across a temperature range of -40 °C to +100 °C.

Product Details

BrandVisaton
ModelFR58-8
Part Number292-714
Unit of MeasureEach
Weight0.3

Product Specifications

Nominal Diameter2-1/4"
Power Handling (RMS)10 Watts
Power Handling (MAX)12 Watts
Impedance
Frequency Response120 to 20,000Hz
Sensitivity81dB 2.83V/1m
Voice Coil Diameter0.55"

Thiele-Small Parameters

Resonant Frequency (Fs)190Hz

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber

Mounting Information

Overall Outside Diameter2.30"
Baffle Cutout Diameter2.24"
Depth1.18"
# Mounting Holes4
