  • Visaton FR10HMP-4 4" Full-Range Waterproof Driver 4 Ohm

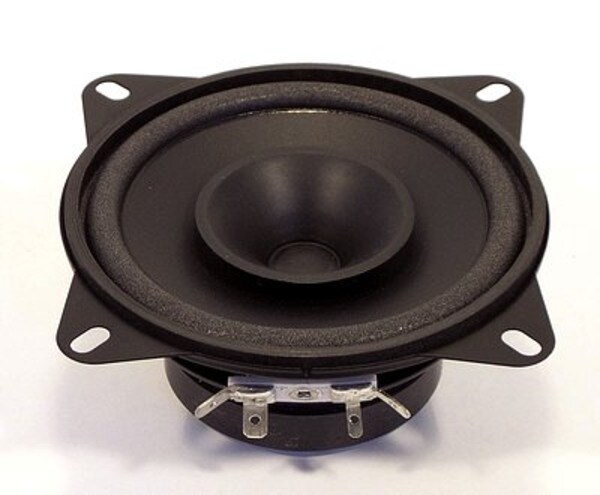

Visaton FR10HMP-4 4" Full-Range Waterproof Driver 4 Ohm

VisatonPart # 292-754
Model: FR10HMP-4
The Visaton FR10HMP-4 is a 4" full-range speaker offering excellent sound quality, designed with a waterproof coated membrane and a dual cone. With its European standard basket and straightforward fitting in vehicles with 10 cm cutouts, it delivers superior audio performance in a versatile and durable package.

Key Features

  • Rated power of 20W and a maximum power of 30W, offering strong audio output
  • Frequency response ranging from 90–20000 Hz for broad sound coverage
  • Operates effectively within a temperature range of -25 to 70 °C
  • Offers protection level of IP 64, safeguarding against dust and water spray
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $10.21
Bulk Pricing
Quantity:Qty: 1-9 $10.21/ea
Quantity:Qty: 10+ $9.39/ea
10 In Stock
Get Notified When Available

We'll send you an email when Visaton FR10HMP-4 4" Full-Range Waterproof Driver 4 Ohm is back in stock or available for preorder.

Order in the next 12 hr 10 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FR10HMP-4 4" Full-Range Waterproof Driver 4 Ohm

The Visaton FR10HMP-4 is a 4" full-range speaker designed with a waterproof coated membrane and a dual cone. The unit is carefully crafted to produce rich, detailed sound across a wide frequency range of 90–20000 Hz. With a rated power of 20W and a maximum capacity of 30W, this speaker provides robust audio output that can enhance any in-vehicle listening experience. Built with a standard European metal basket, the FR10HMP-4 embodies durability and style. Its waterproof membrane offers additional protection, ensuring reliable performance even in challenging weather conditions. The speaker is designed for easy installation in vehicles and mobile homes with 10 cm speaker cut-outs, making it a convenient choice for upgrading your sound system. Operating effectively within a temperature range of -25 to 70 °C, this full-range speaker is constructed to provide excellent sound quality in various environments. Complete with an IP 64 protection rating, the Visaton FR10HMP-4 ensures protection against dust ingress and water spray from any direction. For a reliable, high-performance audio solution that doesn't compromise on durability, look no further than the FR10HMP-4.

Product Details

BrandVisaton
ModelFR10HMP-4
Part Number292-754
Unit of MeasureEach
Weight0.65

Product Specifications

Nominal Diameter4"
Power Handling (RMS)20 Watts
Power Handling (MAX)30 Watts
Impedance
Frequency Response90 to 20,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.55"

Thiele-Small Parameters

Resonant Frequency (Fs)120Hz

Mounting Information

Overall Outside Diameter3.94"
Baffle Cutout Diameter3.70"
Depth1.77"
# Mounting Holes4
