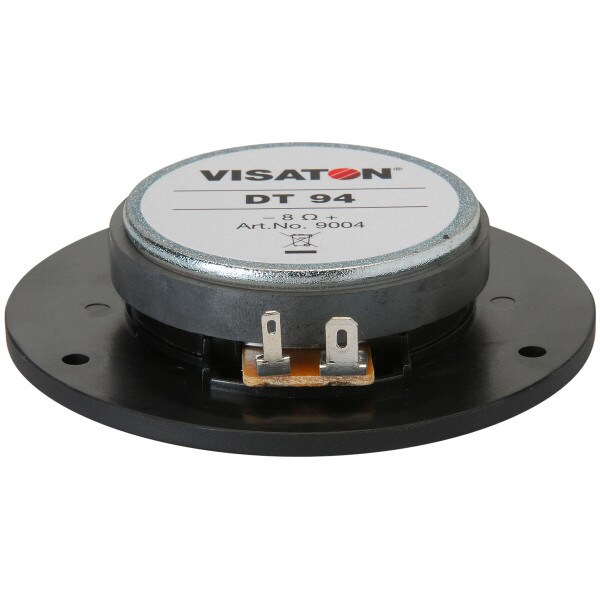

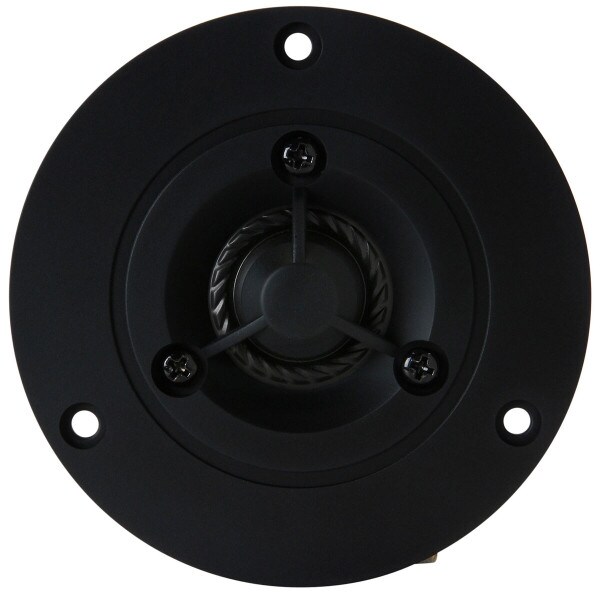

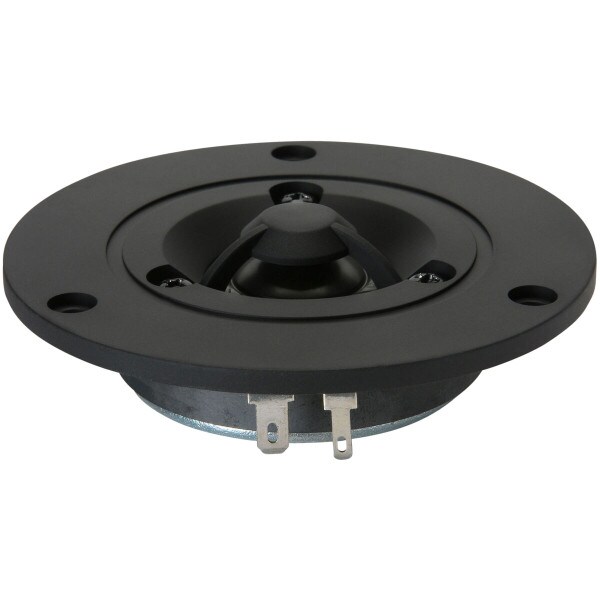

Visaton DT94-8 0.8" Polycarbonate Dome Tweeter 8 Ohm

VisatonPart # 292-556
Model: DT94 - 8

The 9004 DT94 8 ohm, 20 mm polycarbonate dome tweeter from Visaton is designed for high power handling and features smooth frequency response.

Key Features

  • 1.2 kHz to 22 kHz frequency response
  • Ferrofluid-cooled 8 ohm voice coil
  • 90 dB sensitivity
  • High power handling
  • Wide dispersion pattern
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $33.75
MSRP: $39.99
Save $6.24 (16%)
Bulk Pricing
Quantity:Qty: 1-9 $33.75/ea
Quantity:Qty: 10-24 $32.74/ea
Quantity:Qty: 25+ $31.34/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton DT94-8 0.8" Polycarbonate Dome Tweeter 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton DT94-8 0.8" Polycarbonate Dome Tweeter 8 Ohm

Visaton's 9004 DT94 8 ohm, 20 mm polycarbonate HiFi dome tweeter features smooth frequency response, high power handling (due to the ferrofluid cooled voice coil), and great dispersion characteristics that are a result of the integrated phase plug.

Product Details

BrandVisaton
ModelDT94 - 8
Part Number292-556
Unit of MeasureEach
Weight0.615

Product Specifications

Cone / Dome Diameter0.75"
Cutout Diameter2.52
Tweeter TypePoly / Mylar Dome
Power Handling (RMS)50 Watts
Impedance
Frequency Response1,200 to 22,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1900Hz
DC Resistance (Re)63.7Ω
Voice Coil Inductance (Le)0.09mH
Mechanical Q (Qms)3.07
Electromagnetic Q (Qes)0.66
Total Q (Qts)0.54

Mounting Information

Overall Outside Diameter3.70"
Depth0.75"
