  • Visaton DSM50FFL8 2" Titanium Dome Driver 8 Ohm

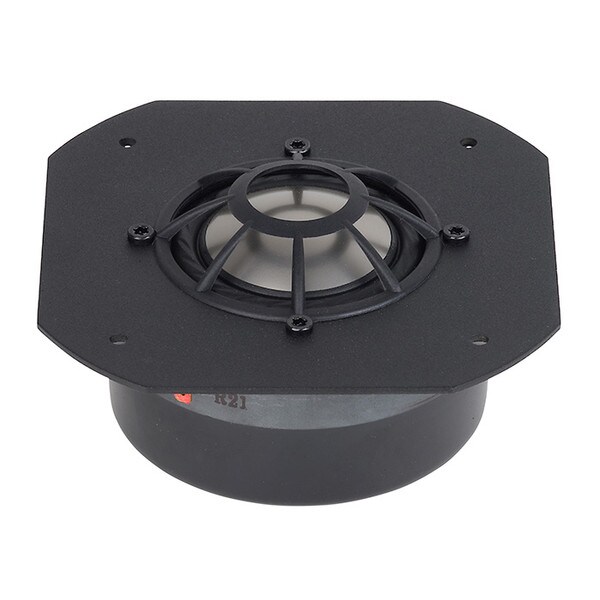

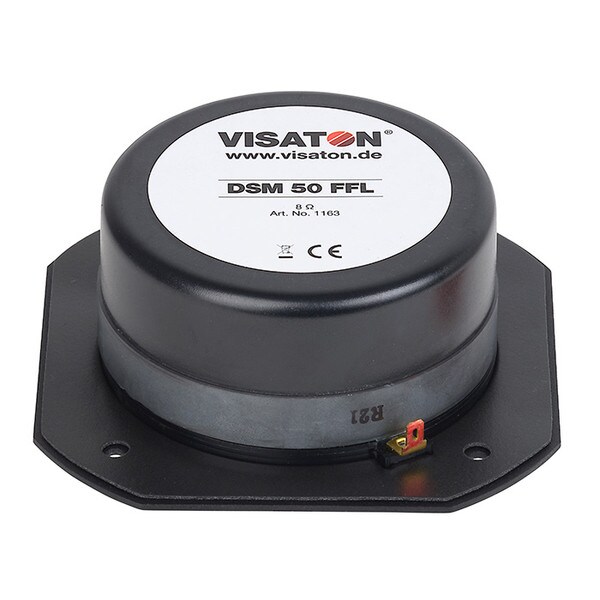

NEW Visaton DSM50FFL8 2" Titanium Dome Driver 8 Ohm

VisatonPart # 292-7801
Model: DSM 50 FFL

The Visaton DSM 50 FFL is a high-end 50 mm (2") titanium dome midrange driver designed for precise audio reproduction between 800 and 5,000 Hz. Its ultra-lightweight and rigid titanium dome, combined with a highly damped surround, ensures a linear frequency response free from partial oscillations, resulting in clear and accurate midrange sound. With robust construction and advanced materials, it is an excellent choice for high-fidelity audio applications.

Key Features

  • Frequency response ranging from 400 to 15,000 Hz for wide-range midrange reproduction
  • Resonance frequency at 430 Hz contributing to clear midrange performance
  • Peak power handling of 180 W with a 12 dB/octave high-pass filter at 800 Hz for robust performance
  • Titanium dome for lightweight rigidity and precise audio reproduction
  • For a quote on a large qty order, please press "Request Large Qty Quote"
NEW $131.98
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-9 $131.98/ea
Quantity:Qty: 10+ $118.78/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Visaton DSM50FFL8 2" Titanium Dome Driver 8 Ohm is back in stock or available for preorder.

Estimated back in stock 10/10/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton DSM50FFL8 2" Titanium Dome Driver 8 Ohm

The DSM 50 FFL is designed to deliver precise and balanced midrange sound, featuring a titanium dome that minimizes distortion and ensures high-frequency accuracy. Its robust build quality and carefully engineered components make it a dependable choice for high-end audio systems, providing clarity and detail that audio enthusiasts demand.

Technical Data

  • Nominal impedance: 8 Ohm
  • Frequency response: 400-15000 Hz
  • Mean sound pressure level: 90 dB (1 W/1 m)
  • Opening angle: (-6 dB) 180°/4000 Hz
  • Resonance frequency fs: 430 Hz
  • Magnetic induction: 1.4 T
  • Magnetic flux: 880 µWb
  • Height of front pole-plate: 3.5 mm
  • Voice coil diameter: 50 mm
  • Height of winding: 3 mm
  • Cutout diameter: 106 mm
  • Net weight: 1.26 kg
  • D.C. resistance Rdc: 6.7 Ohm
  • Mechanical Q factor Qms: 1.19
  • Electrical Q factor Qes: 0.7
  • Total Q factor Qts: 0.44
  • Equivalent volume Vas: 0.05
  • Effective piston area Sd: 20 cm²
  • Dynamically moved mass Mms: 1.2 g
  • Inductance of the voice coil L: 0.16 mH
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
  • Peak power handling with high pass: 180 W (12 dB/Okt.; 800 Hz)
  • Nominal power handling with high pass: 120 W (12 dB/Okt.; 800 Hz)

Product Details

BrandVisaton
ModelDSM 50 FFL
Part Number292-7801
Unit of MeasureEach
Weight0.31

Product Specifications

Nominal Diameter2"
Power Handling (RMS)120 Watts
Power Handling (MAX)180 Watts
Impedance8Ω
Frequency Response400 TO 15,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter1.969"

Thiele-Small Parameters

Resonant Frequency (Fs)430Hz
DC Resistance (Re)6.7Ω
Voice Coil Inductance (Le)0.16mH
Mechanical Q (Qms)1.19
Electromagnetic Q (Qes)0.7
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)0.05ft³
Diaphragm Mass Inc. Airload (Mms)1.2g
Surface Area of Cone (Sd)20cm²

Materials of Construction

Cone MaterialTitanium

Mounting Information

Baffle Cutout Diameter3.937"
Depth1.89"
# Mounting Holes4
