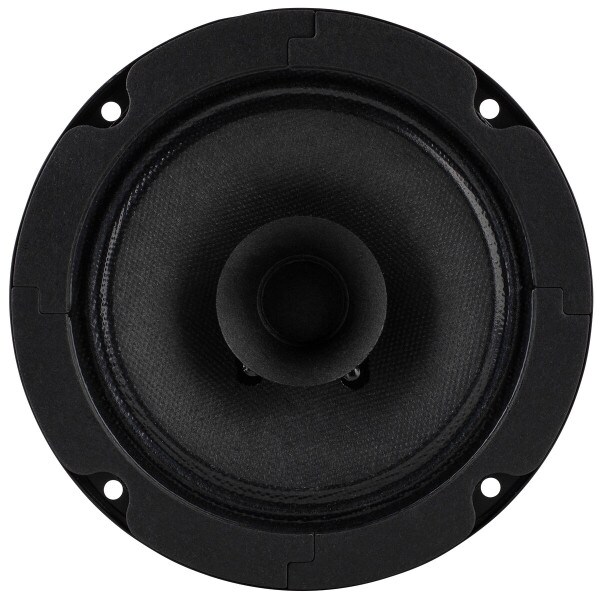

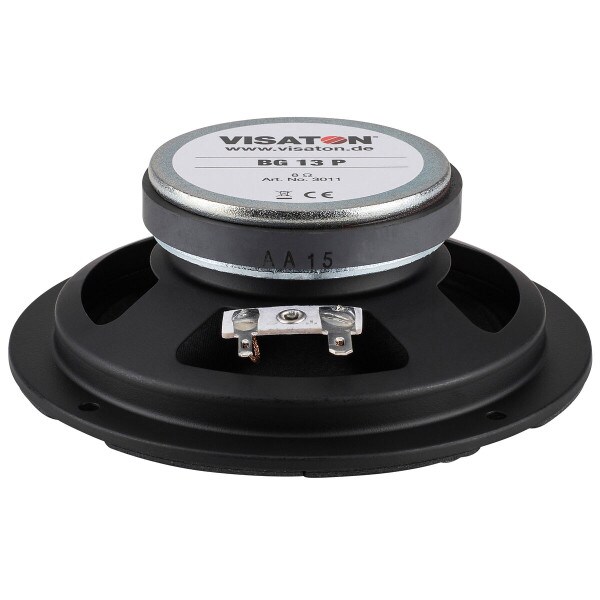

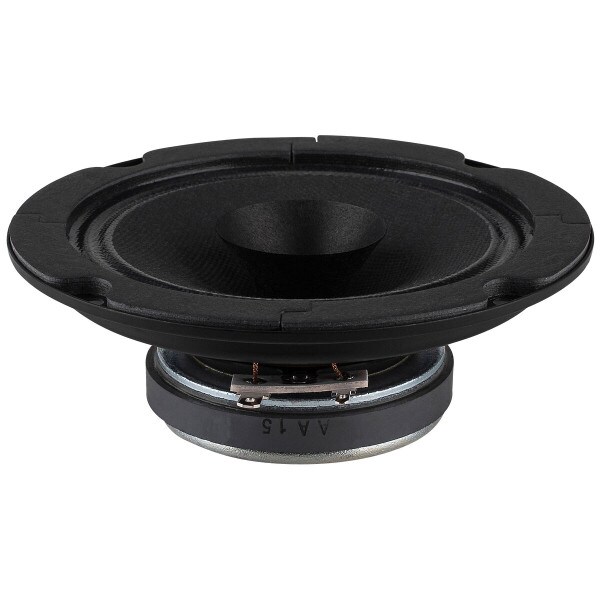

Visaton BG13P 5" Full Range Speaker 8 Ohm

VisatonPart # 292-644
Model: BG13P
Visaton's BG 13 P 5" full-range speaker has a wide frequency response and excels at voice reproduction. The use of a whizzer cone improves high frequency response.

Key Features

  • High efficiency for a compact driver
  • Ideal for use in vocal reproduction
  • Whizzer cone improves high frequency response
  • Smooth response from 150 to 20,000 Hz
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $18.85
MSRP: $22.99
Save $4.14 (18%)
Bulk Pricing
Quantity:Qty: 1-9 $18.85/ea
Quantity:Qty: 10-24 $18.29/ea
Quantity:Qty: 25+ $17.50/ea
70 In Stock
Get Notified When Available

We'll send you an email when Visaton BG13P 5" Full Range Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton BG13P 5" Full Range Speaker 8 Ohm

The BG 13 P 5" dual cone full-range delivers high efficiency across an extremely wide frequency range for a driver this size. Optimized for reproducing the human voice, this speaker is perfect for use in large scale PA line arrays or even small monitor speakers.

Product Details

BrandVisaton
ModelBG13P
Part Number292-644
UPC4007540030111
Unit of MeasureEach
Weight1.05

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter4.75
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance
Frequency Response120 to 20,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)168Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.65mH
Mechanical Q (Qms)3.06
Electromagnetic Q (Qes)1.58
Total Q (Qts)1.042
Compliance Equivalent Volume (Vas)2.01ft³
Mechanical Compliance of Suspension (Cms)0.29mm/N
BL Product (BL)3.22T·m
Diaphragm Mass Inc. Airload (Mms)3g

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.15"
Baffle Cutout Diameter4.33"
Depth1.81"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F3257.9Hz
