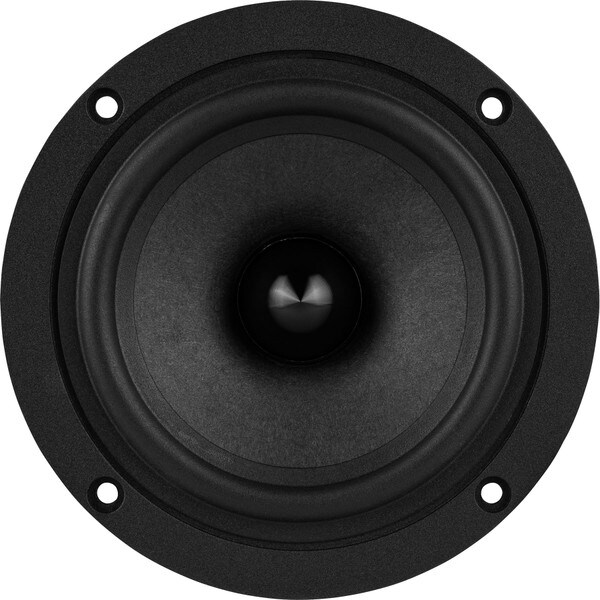

Visaton B 100 4" Full-Range Driver 6 Ohm

Visaton
Part #292-662

Visaton B 100 4" Full-Range Driver 6 Ohm

Visaton
Part #292-662
Model: B100
Visaton’s B 100 4" paper cone full-range driver produces response up to 20,000 Hz to deliver natural sound without the need for a tweeter. With an aluminum phase plug, basket, and shorting ring, Visaton designed this speaker to provide low distortion response with impressive efficiency.
Key Features
  • Naturally damped paper cone minimizes resonances for natural response
  • An aluminum phase plug improves off axis response and helps to keep inductance linear

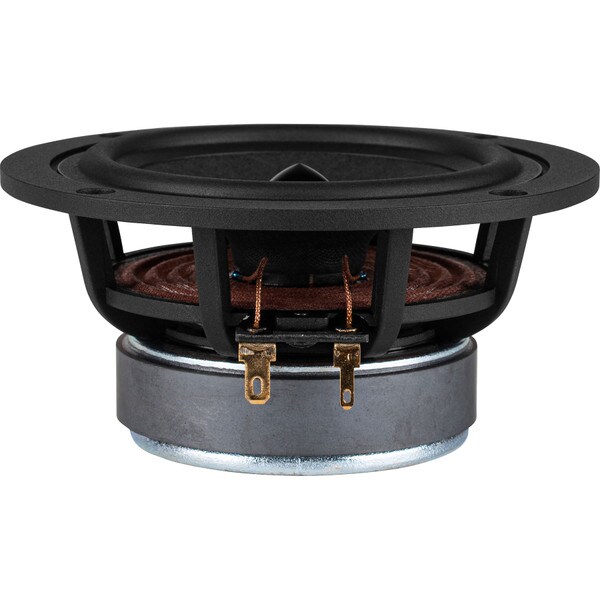

  • The cast aluminum basket provides extensive venting and a rigid frame
  • Gold plated terminals resist corrosion and improves signal transfer
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $113.64
+ FREE SHIPPING
MSRP: $134.99
Save $21.35 (16%)
Bulk Pricing
Quantity:Qty: 1-9 $113.64/ea
Quantity:Qty: 10-24 $110.52/ea
Quantity:Qty: 25+$106.15/ea
Ships next business day. Details

6In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton B 100 4" Full-Range Driver 6 Ohm

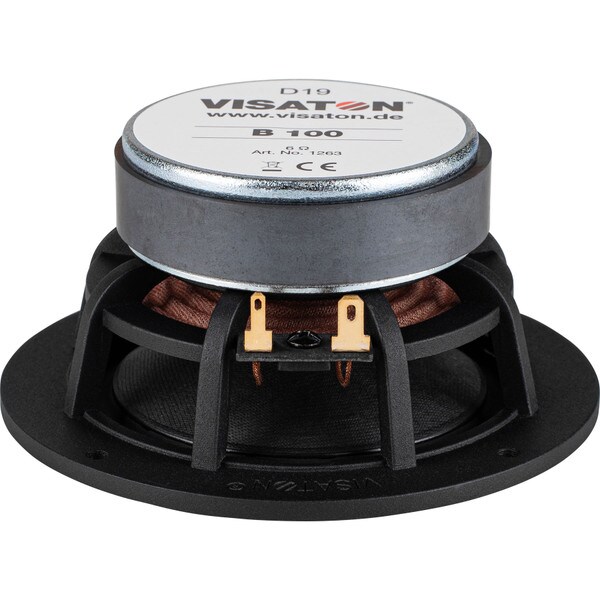

The compact B 100, from Visaton is a 4" full-range driver capable of producing natural response with extremely low distortion. The paper cone provides excellent damping to keep resonant peaks under control for a non-fatiguing sound. An aluminum shorting ring and phase plug keep the voice coil inductance under 0.4 mH which lowers distortion while improving high frequency response. A cast aluminum frame supports the large ferrites motor and provides ample space to reduce reflection from the cone and includes extensive venting under the spider. This 6 ohm driver is an excellent choice for use in compact speakers, portable speakers, or even sound bars.

Product Details

BrandVisaton
ModelB100
Part Number292-662
Unit of MeasureEach
Weight1.68

Product Specifications

Nominal Diameter4-1/2"
Bolt Circle Diameter4.37
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance6Ω
Frequency Response75 to 20,000Hz
Sensitivity89.6dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)75Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)0.36mH
Mechanical Q (Qms)10.13
Electromagnetic Q (Qes)0.54
Total Q (Qts)0.52
Compliance Equivalent Volume (Vas)0.1856156ft³
Mechanical Compliance of Suspension (Cms)1.407mm/N
BL Product (BL)4.1T·m
Diaphragm Mass Inc. Airload (Mms)3.2g
Maximum Linear Excursion (Xmax)1.6mm
Surface Area of Cone (Sd)54.1cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.75"
Baffle Cutout Diameter3.98"
Depth2.25"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.14ft³
Sealed F3114.5Hz
Vented Volume0.2ft³
Vented F369.8Hz
