NEW Visaton AL200-8 8" Aluminum Cone Woofer 8 Ohm

VisatonPart # 292-7805
Model: AL 200

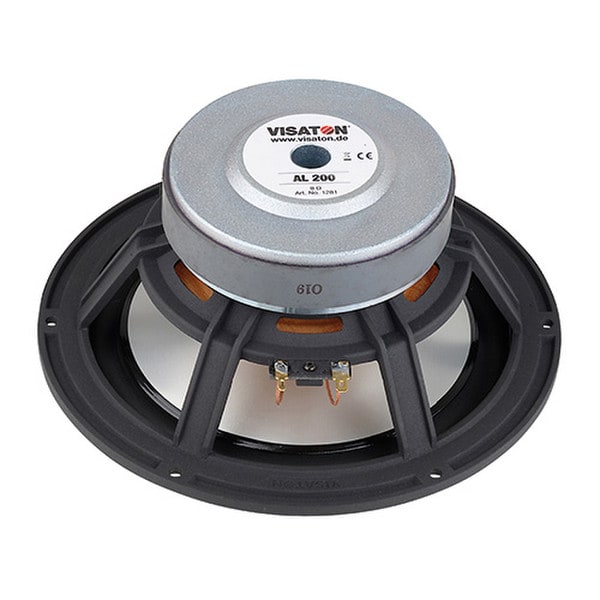

The Visaton AL 200 is a high-end 20 cm (8") woofer designed for audiophiles seeking precise and dynamic low-frequency performance. Its stiff aluminum cone, solid die-cast basket, and elastic rubber surround ensure durability and exceptional sound quality. The vented pole plate, damper, and Kapton voice coil carrier minimize mechanical and electrical losses, resulting in a fast pulse response ideal for both 2-way and 3-way high-end speaker systems.

Key Features

  • Frequency response from 32 Hz to 9,000 Hz for wide-range sound reproduction
  • Resonance frequency at 32 Hz for deep bass performance
  • Maximum power handling of 180 W for robust performance
  • Excursion limit of ±10 mm allowing significant diaphragm movement
  • Effective piston area of 216 cm² contributing to substantial sound pressure
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Similar items that may interest you:
Visaton GF200-2x4 8" DVC Woofer 2x4 Ohm
Price: $159.48Part # 292-7808
Visaton TIW200XS8 8" High-End Woofer 8 Ohm
Price: $179.28Part # 292-7809
See all items in Woofers
NEW $197.98
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-9 $197.98/ea
Quantity:Qty: 10+ $193.58/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton AL200-8 8" Aluminum Cone Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton AL200-8 8" Aluminum Cone Woofer 8 Ohm

The AL 200's lightweight aluminum cone ensures a fast pulse response, making it suitable for high-fidelity audio applications. Its design allows for integration into various cabinet sizes, with recommended volumes ranging from 30 liters to 70 liters in bass reflex configurations, achieving tuning frequencies between 27 Hz and 40 Hz. This versatility makes the AL 200 an excellent choice for audiophiles and speaker builders aiming for superior low-frequency performance in their custom speaker designs.

Technical Data

  • Rated Power: 120W
  • Maximum Power: 180W
  • Nominal impedance: 8 Ohm
  • Frequency response: fu-30000 Hz
    (fu: Lower cut-off frequency depending on cabinet)
  • Mean sound pressure level: 88 dB (1 W/1 m)
  • Opening angle: (-6 dB) 122°/4000 Hz
  • Excursion Limit: +/−10 mm
  • Resonance frequency fs: 32 Hz
  • Magnetic induction: 1.3 T
  • Magnetic flux: 930 µWb
  • Height of front pole-plate: 6 mm
  • Voice coil diameter: 38 mm
  • Height of winding: 20 mm
  • Cutout diameter: 190 mm
  • Net weight: 2.5 kg
  • D.C. resistance Rdc: 6.6 Ohm
  • Mechanical Q factor Qms: 3.73
  • Electrical Q factor Qes: 0.39
  • Total Q factor Qts: 0.35
  • Effective volume Vas: 77 l
  • Effective piston area Sd: 216 cm²
  • Dynamically moved mass Mms: 21 g
  • Inductance of the voice coil L: 1.2 mH
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)

Product Details

BrandVisaton
ModelAL 200
Part Number292-7805
Unit of MeasureEach
Weight4

Product Specifications

Nominal Diameter8"
Power Handling (RMS)120 Watts
Power Handling (MAX)180 Watts
Impedance8Ω
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1.496"

Thiele-Small Parameters

Resonant Frequency (Fs)32Hz
DC Resistance (Re)6.6Ω
Voice Coil Inductance (Le)1.2mH
Mechanical Q (Qms)3.73
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)2.72ft³
BL Product (BL)8.8T·m
Diaphragm Mass Inc. Airload (Mms)21g
Maximum Linear Excursion (Xmax)10mm
Surface Area of Cone (Sd)216cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum

Mounting Information

Overall Outside Diameter8.74"
Depth3.5"
# Mounting Holes6
