CLEARANCE Tymphany AULA02014-0006 8" Professional Paper Cone Woofer 8 Ohms

Factory BuyoutsPart # 299-2265
Model: AULA02014-0006
The Tymphany ALUA02014 8” paper cone woofer delivers high efficiency, smooth response, and minimal distortion making it perfect for use in studio monitors, portable PA’s, and high output home speakers. Thanks to thick copper shorting sleeve, huge ferrite magnet, vented pole piece, and damped paper cone this 8 ohm driver produces accurate response up to 2,000 Hz.

Key Features

  • The Tymphany ALUA02014 8” paper cone woofer delivers high efficiency, smooth response, and minimal distortion making it perfect for use in studio monitors, portable PA’s, and high output home speakers. Thanks to thick copper shorting sleeve, huge ferrite magnet, vented pole piece, and damped paper
  • The 2” 2-layer voice coil is wound on a fiberglass former allowing reliable high power handling
  • Excellent response up to 2,000 Hz making it a perfect match for many high output tweeters

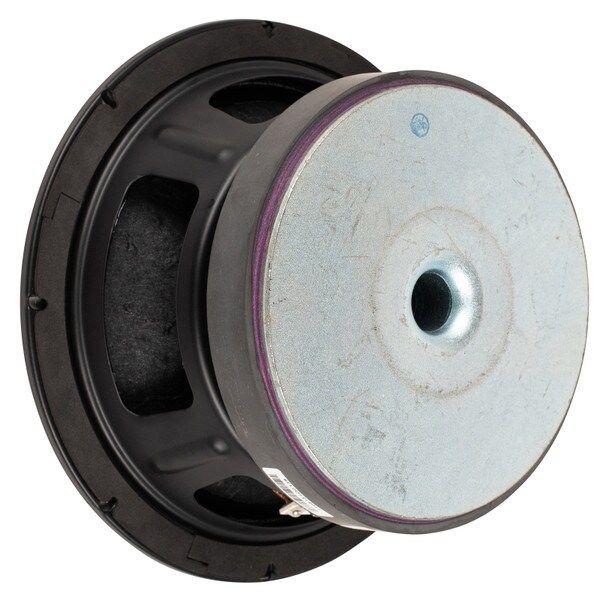

  • High sensitivity thanks to the massive ferrite magnet and lightweight cone
Get Notified When Available

We'll send you an email when Tymphany AULA02014-0006 8" Professional Paper Cone Woofer 8 Ohms is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Tymphany AULA02014-0006 8" Professional Paper Cone Woofer 8 Ohms

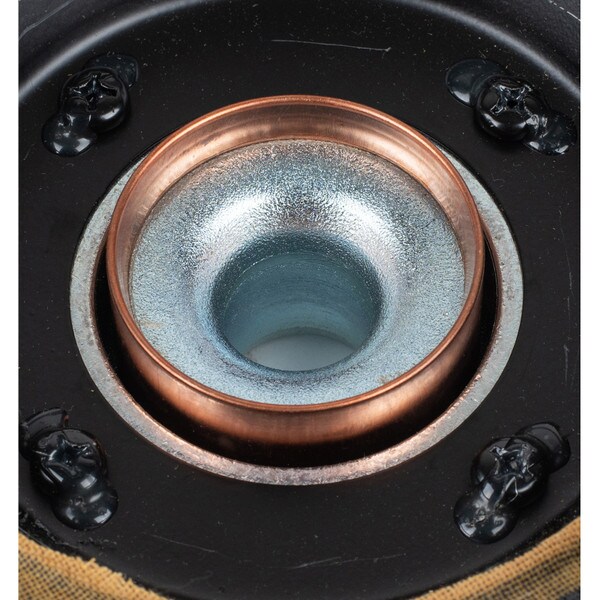

Tymphany’s ALUA02014 8” paper cone woofer is ideal for use in high output, low distortion designs. With a thick copper shorting sleeve surrounding the pole piece and powerful ferrite magnet, the motor assembly has been optimized to ensure extremely low distortion. The damped pulp paper cone and double roll surround deliver smooth response with almost no break-up under 2,500 Hz. The unique combination or efficiency, low distortion, and smooth response makes this a great choice for any high output speaker designs.

Note: This new old stock driver is from a factory buyout. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelAULA02014-0006
Part Number299-2265
UPC848864077406
Unit of MeasureEach
Weight9

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.75
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response60 to 6,000Hz
Sensitivity94.8dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)70Hz
DC Resistance (Re)5.7Ω
Voice Coil Inductance (Le)0.18mH
Mechanical Q (Qms)3.55
Electromagnetic Q (Qes)0.48
Total Q (Qts)0.42
Compliance Equivalent Volume (Vas)0.67ft³
Mechanical Compliance of Suspension (Cms)0.265mm/N
BL Product (BL)10.1T·m
Diaphragm Mass Inc. Airload (Mms)19.5g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)224.5cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.25"
Baffle Cutout Diameter7"
Depth3.875"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.4ft³
Sealed F3130Hz
Vented Volume0.7ft³
Vented F368Hz
