CLEARANCE True RMS Digital Multimeter with NCV, Frequency, Capacitance and Shock Proof Cover

Parts ExpressPart # 390-749

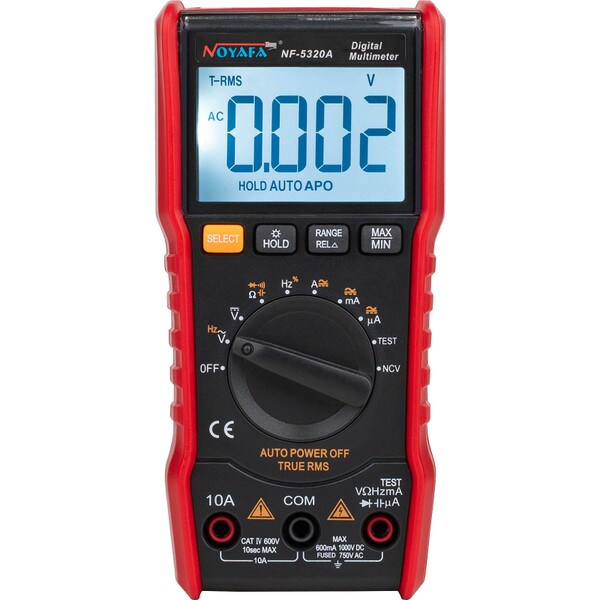

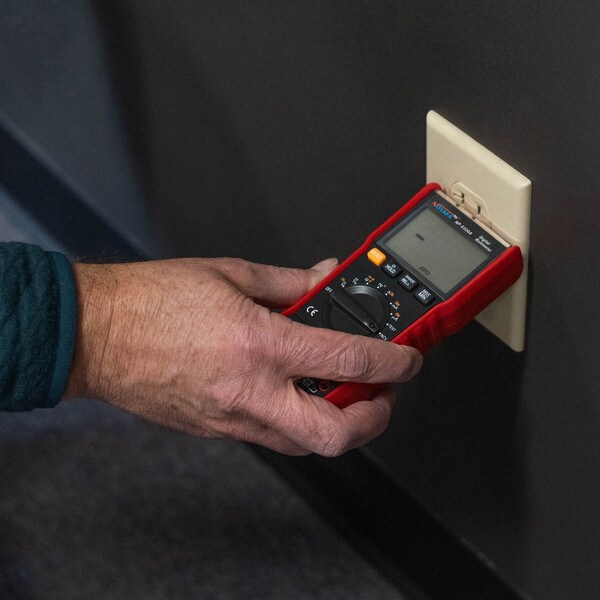

Test more for less with the NF-5320A. Check capacitance, and frequency as well as the standard test that most small meters perform. Turn the dial to NCV to check an AC socket for live voltage without any probes. All this at a price that won't break the bank.

Key Features

  • LCD display backlit for low light situations
  • Rubber outer case makes it shock resistant
  • Flip-out stand for workbench testing
  • Tone for blind continuity and no lead AC socket testing
  • Max and hold buttons for stable readings
  • Automatic shut down after 15 minutes extends battery life
  • Dual fuses help protect the life of the meter
Get Notified When Available

We'll send you an email when True RMS Digital Multimeter with NCV, Frequency, Capacitance and Shock Proof Cover is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

True RMS Digital Multimeter with NCV, Frequency, Capacitance and Shock Proof Cover

Built for Job Sights

This meter is perfect for taking out to the job site. It has a shock resistant outer case and a backlit display to see in low light areas. Select the audible sound position when you're testing fuses, or testing for continuity. The NF-5320A is small enough to fit in a tool belt or tool box.

Small But Loaded with Features

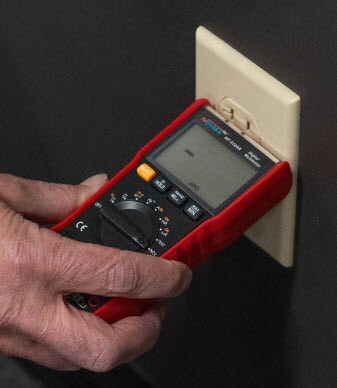

Don't let the small 5-3/4" x 2-3/4" x 1-5/8" size and price fool you. The NF-5320A performs more test than your standard small meter. It tests capacitance, frequency, and diodes which most low cost small meter leave out. It checks for live voltage around AC sockets without any test leads attached. The NF-5320A turns off by itself to save battery power like most meters, but it also has a stay on function for monitoring voltage which works well with the Max button.

Works as a Bench Meter

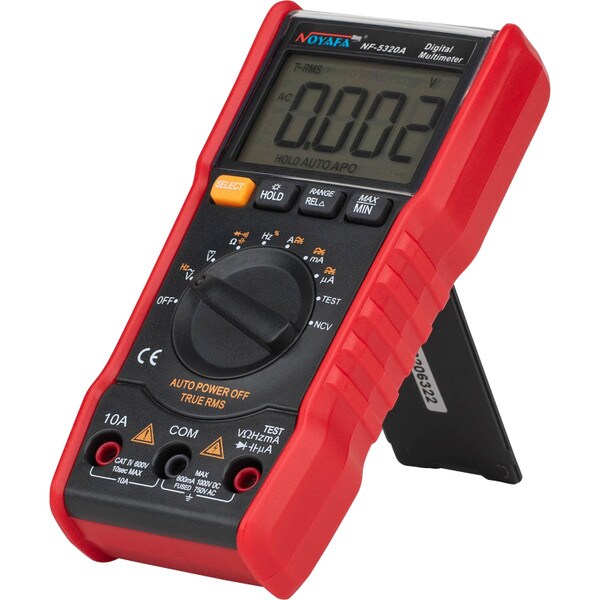

You can also use the NF-5320A as a bench meter. The built-in stand unsnaps to prop up your meter for a better viewing angle when using on you work bench. The stand works with or without the rugged case so the meter stays protected if needed. Convenient hold button freezes the display so that you can release the test leads without losing your reading.

Note: The gift box is used for multiple digital meters. The picture and features on the box may not match the NF-5320A.

Specifications:
• DC voltage range: 6V/ 60V/ 600V +/- (0.5% + 3), Minimum reading on 6V (0.001), 1000V +/- (0.8% + 10)
• AC voltage range: 6V/ 60V/ 600V +/- (0.8% + 3 digits), Minimum reading on 6V (0.001), 750V +/- (1.2% + 10)
• AC/DC current range: 60 mA/ 600 mA/ 6000 mA +/- (1.2% + 10 digits), 6A / 10A +/- (2.0% + 30 digits), Minimum reading  0.1 µA
• Resistance range: 600/ 6K/ 60K/ 600K/ 6M/ 40M Ohm +/- (0.8 - 2.5% 3 - 5 digits), Minimum reading 0.1 Ohm
• Display: 6,000 maximum count 1" x 1-3/4"
• Capacitance range: 60nF/ 600nF/ 6uf/ 60uF/ 600uF/ 6mF/ 30mF +/- (3.5-5.0% + 3-20 digits), Minimum reading 10 pF
• Frequency/duty: 10Hz/ 100 Hz/ 1000 Hz/ 10 kHz/ 100 kHz/ 1000 kHz/ 10000 kHz (+/- 1.0% +3 digits)
• Dimension: 5-3/4" L x 2-3/4" W x 1-5/8" H
• Fuses: 600 mA and 10A 5 x 20 mm
• Battery required: 2 x AAA included

Product Details

BrandParts Express
Part Number390-749
UPC848864074290
Unit of MeasureEach
Weight0.69
