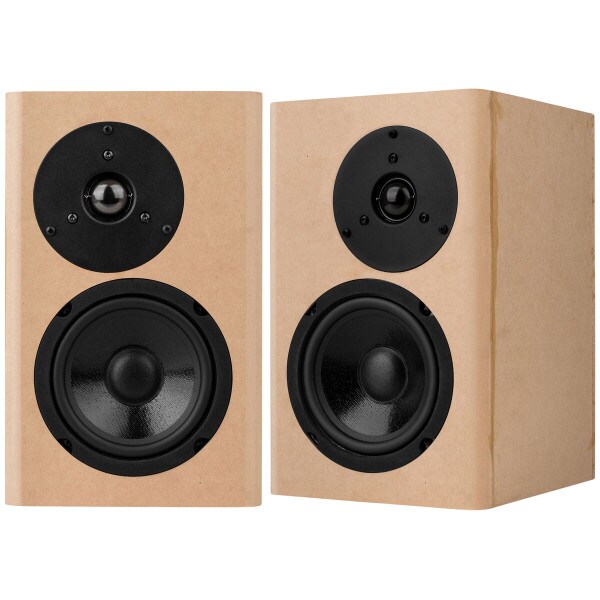

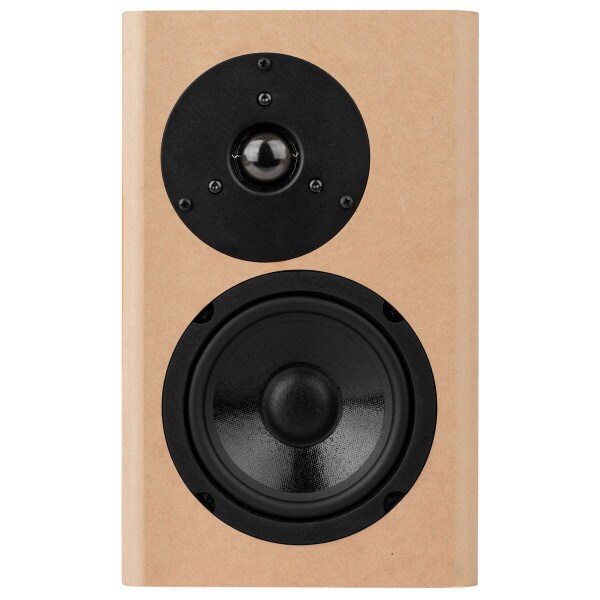

TriTrix MT Bookshelf Speaker Kit Pair with Knock-Down Cabinets
The TriTrix MT vented speaker kit is a compact design that delivers high performance full-range audio without breaking the bank, thanks to the paper cone woofers and soft dome tweeter. With an F3 in the 50’s and an F10 around 40 Hz, you can expect solid low end from the compact enclosures. Delivering natural response with an easy-to-listen-to sound, TriTrix has the ability to make even poor recordings sound great.
Features:
- Delivers a natural relaxed sound with flat smooth response
- Compact ported enclosure design for extended bass response
- Simple instruction manual makes anybody a speaker builder instantly
- Designed and tuned by well-known speaker designer Curt Campbell
- Setting the standard for performance on a budget, TriTrix MT saves you over $50 off the normal retail price. It’s one of the best reasons to build this speaker pair
Customer Comments:
"Surprised by the sound , the low end is rich and the high is just enough. I would buy these again." -Jonathan R ⋆⋆⋆⋆⋆
"Very natural, VERY musical, not at all fatiguing, a perfect voice match for the other Tritrix MTM and Transmission Lines (TL)... Overall, solid pleasant speaker system for those who want good sound quality without breaking the bank." -2Cent ⋆⋆⋆⋆⋆
About the Designer:
Curt Campbell
Curt has been a music lover all of his life. His ‘day job’ is working in commercial aviation where he supports avionics systems.
Customer Projects:

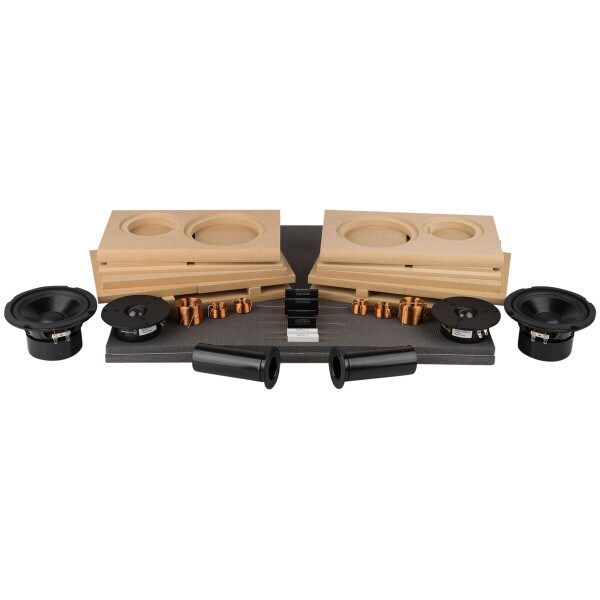

Kit Components:
Part # | QTY. | Description |

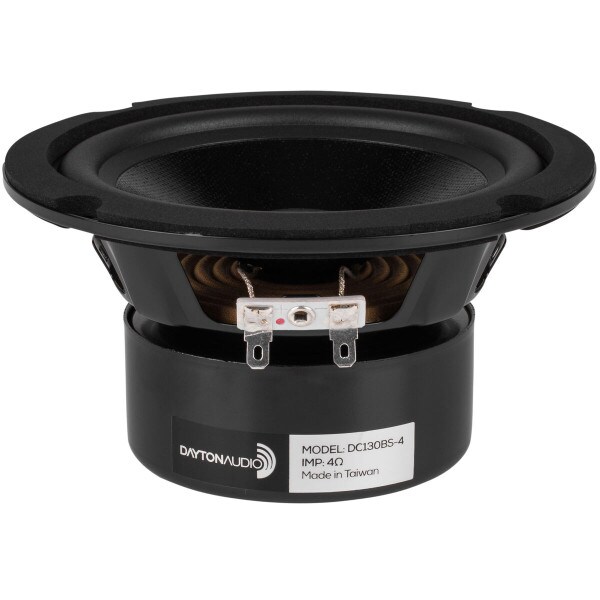

295-302 | 2 | Dayton Audio DC130BS-4 5-1/4” Classic Shielded Woofer 4 Ohm |

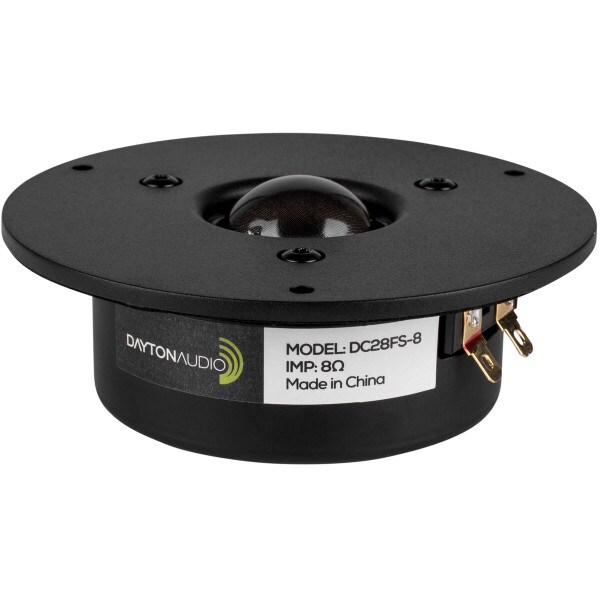

275-075 | 2 | Dayton Audio DC28FS-8 1-1/8” Silk Dome Shielded Tweeter |
016-2.2 | 2 | 2.2 Ohm 10W Resistor Wire Wound 5% Tolerance |
027-426 | 2 | Dayton Audio DMPC-8.2 8.2uF 250V Polypropylene Capacitor |
027-436 | 2 | Dayton Audio DMPC-20 20uF 250V Polypropylene Capacitor |
255-028 | 2 | Jantzen 1832 0.30mH 20 AWG Air Core Inductor |
255-200 | 2 | Jantzen 1947 0.05mH 18 AWG Air Core Inductor |
255-256 | 2 | Jantzen 1048 1.3mH 18 AWG Air Core Inductor |
260-388 | 2 | Port Tube 1-3/8” ID Adjustable |
260-520 | 2 | Sonic Barrier 1/2” Acoustic Foam w/PSA 18” x 24” |

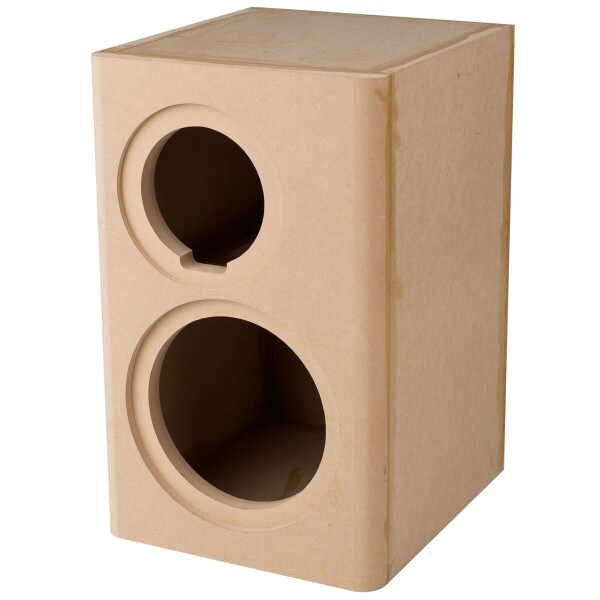

- | 1 | Denovo Audio CNC cut MDF cabinet panels |
Note:
- Screws, binding posts, and speaker wire are not included.
- Crossover components may be substituted with parts of equal or higher quality depending on available inventory.
Specifications:
- Power Handling: 40 watts RMS/80 watts max
- Frequency response: 45-20,000 Hz
- Impedance: 6 Ohm
- Sensitivity: 85 dB 1W/1m
- Dimensions: 12” H x 7.5” W x 8.25” D
