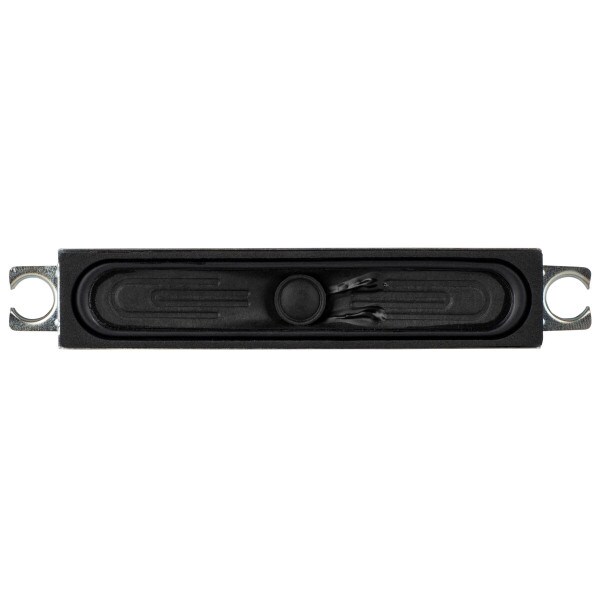

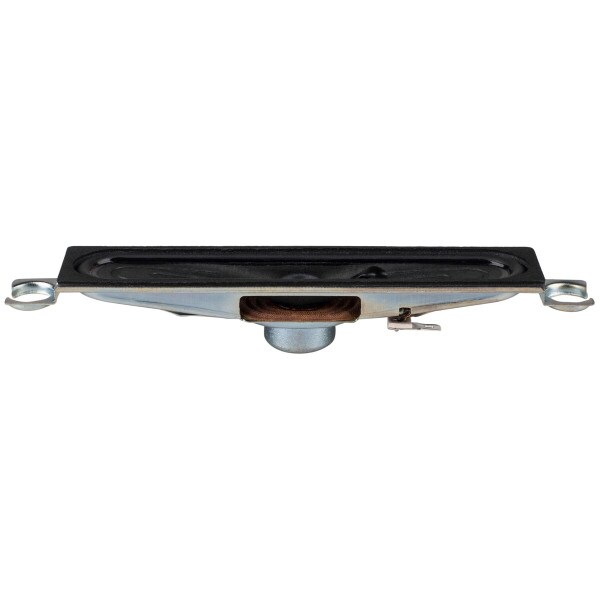

BUYOUT Toshiba AA-31816F-XX2G42 1" x 5-1/2" Full-Range Paper Cone Speaker 16 Ohm

Factory Buyouts
Part #289-2180

BUYOUT Toshiba AA-31816F-XX2G42 1" x 5-1/2" Full-Range Paper Cone Speaker 16 Ohm

Factory Buyouts
Part #289-2180
Model: AA-31816F-XX2G42
This 16 ohm 1" x 5-1/2" full-range replacement TV speaker is an OEM replacement for various Toshiba LCD TVs. With a paper cone, polyimide voice coil former, and rubber surround this driver will produce natural frequency response with minimal resonances.
Key Features
  • Paper cone with rubber surround provides excellent mechanical damping
  • Foam front gasket provides a good seal when rear mounted
  • Perfect for infinite baffle or open back designs
  • Designed to excel in the vocal range
BUYOUT $2.33
Bulk Pricing
Quantity:Qty: 1-9 $2.33/ea
Quantity:Qty: 10-49 $1.94/ea
Quantity:Qty: 50+$1.65/ea
Order in the next 0 hr 53 min to ship today. Details

Only 48 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Toshiba AA-31816F-XX2G42 1" x 5-1/2" Full-Range Paper Cone Speaker 16 Ohm

provide our customers with the best products at the lowest cost. We are excited to offer this 1" x 5-1/2" speaker, which is part of a massive TV speaker factory buyout from Brazil.

Originally found in a variety of LCD TVs from Toshiba, the AA-31816F-XX2G42 features a rectangular design with an extremely low profile frame making it a great choice for narrow designs such as sound bars and portable speakers. With a paper cone and voice coil former and a rubber surround this driver will produce smooth response from 150 to 13,000 Hz.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelAA-31816F-XX2G42
Part Number289-2180
UPC848864048123
Unit of MeasureEach
Weight0.1

Product Specifications

Nominal Diameter1 x 5"
Power Handling (RMS)8 Watts
Power Handling (MAX)16 Watts
Impedance16Ω
Frequency Response150 to 14,000Hz
Sensitivity78dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)240Hz
DC Resistance (Re)14.36Ω
Voice Coil Inductance (Le)0.25mH
Mechanical Q (Qms)3.63
Electromagnetic Q (Qes)7.08
Total Q (Qts)2.4
Compliance Equivalent Volume (Vas)0.0073ft³
Mechanical Compliance of Suspension (Cms)0.23mm/N
BL Product (BL)2.39T·m
Surface Area of Cone (Sd)25.07cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter7" x 1.25"
Baffle Cutout Diameter5.5" x 1"
Depth1"
# Mounting Holes2
