BUYOUT Toshiba 42-41716G-001 1-3/8" x 5-1/4" Paper Cone Full-Range Speaker 16 Ohm

Factory BuyoutsPart # 289-2244
Model: 42-41716G-001
2 Questions, 3 Answers or
This 16 ohm 1-3/8" x 5-1/4" full-range replacement TV speaker is an OEM replacement speaker for various Toshiba LCD TVs. With a paper cone, polyimide voice coil former, and rubber surround this driver will produce natural frequency response with minimal resonances.

Key Features

  • Foam front gasket provides a good seal when rear mounted
  • Paper cone with rubber surround provides excellent mechanical damping
  • Perfect for infinite baffle or open back designs
  • Ideal for line array experiments thanks to its low cost
BUYOUT $1.61
Bulk Pricing
Quantity:Qty: 1-9 $1.61/ea
Quantity:Qty: 10-49 $0.98/ea
Quantity:Qty: 50+ $0.58/ea
1484 In Stock
Get Notified When Available

We'll send you an email when Toshiba 42-41716G-001 1-3/8" x 5-1/4" Paper Cone Full-Range Speaker 16 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Toshiba 42-41716G-001 1-3/8" x 5-1/4" Paper Cone Full-Range Speaker 16 Ohm

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1-3/8" x 5-1/4" speaker, which is part of a massive TV speaker factory buyout from Brazil.

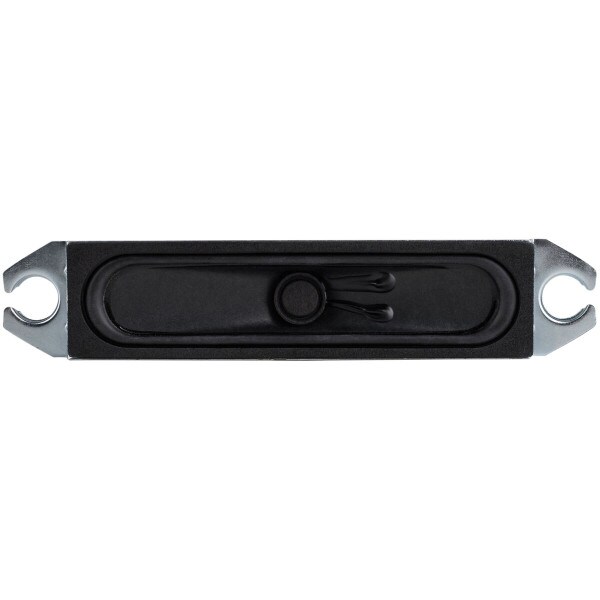

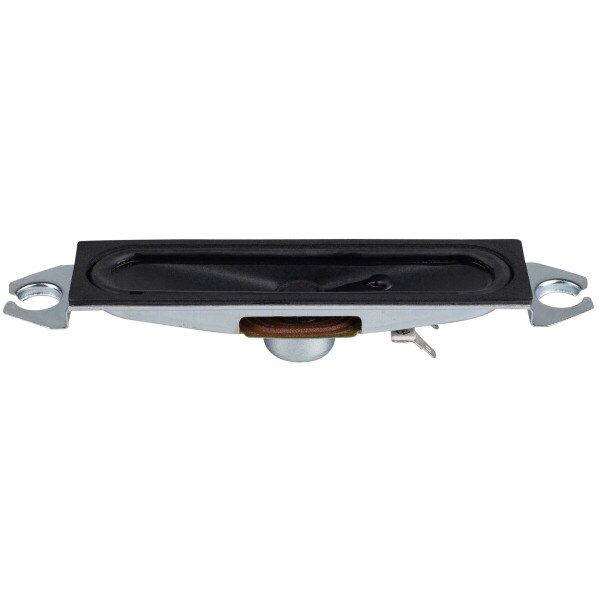

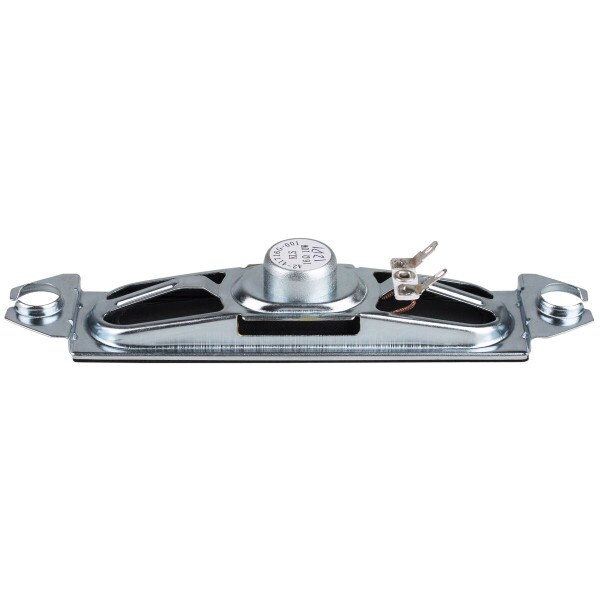

Originally found in a variety of LCD TVs from Toshiba, this speaker features a rectangular design with an extremely low profile frame making it a great choice for narrow designs such as sound bars and portable speakers. With a paper cone and voice coil former and a rubber surround this driver will produce smooth response from 150 to 13,000 Hz.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
Model42-41716G-001
Part Number289-2244
UPC848864048444
Unit of MeasureEach
Weight0.15

Product Specifications

Nominal Diameter1 x 5"
Power Handling (RMS)10 Watts
Power Handling (MAX)15 Watts
Impedance16Ω
Frequency Response150 to 13,000Hz
Sensitivity75.5dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)365Hz
DC Resistance (Re)14.9Ω
Voice Coil Inductance (Le)0.74mH
Mechanical Q (Qms)4.38
Electromagnetic Q (Qes)22.17
Total Q (Qts)3.66
Compliance Equivalent Volume (Vas)0.0034ft³
Mechanical Compliance of Suspension (Cms)0.115mm/N
BL Product (BL)1.59T·m
Surface Area of Cone (Sd)24.6cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel

Mounting Information

Overall Outside Diameter7" x 1.375"
Baffle Cutout Diameter5" x 1.125"
Depth1.125"
# Mounting Holes2
