CLEARANCE Topping PA3 Desktop Amplifier 80WPC

ToppingPart # 310-346
Model: PA3

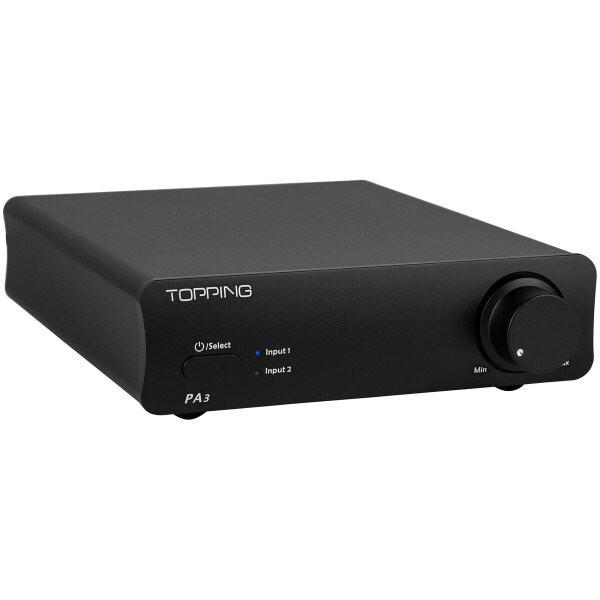

The Topping PA3 Class D desktop amplifier delivers a powerful 80 Watts per channel output for a rich, detailed sound. Two stereo RCA inputs allow you to connect multiple devices at the same time. To prevent faults such as overload, overheating, and voltage regulation issues, the PA3 incorporates a MCU intelligent protection and control microprocessor. Built from high quality electrical components, the PA3 delivers audiophile sound quality in a small footprint. Housed in a beautiful aluminum enclosure, Topping has utilized a curved design that accentuates the aesthetics features of the amplifier.

Key Features

  • 80 Watts per channel class D desktop amplifier delivers powerful, high output sound
  • Utilizes MCU intelligent protection and control to prevent overloads, overheating, over voltage and low voltage
  • Supports 2 way RCA inputs, allowing you to connect 2 devices at the same time
  • Features high quality electrical components to provide stunning audiophile sound quality
  • Curved aluminum enclosure with a screw less front plate provides an unobtrusive, modern design aesthetic

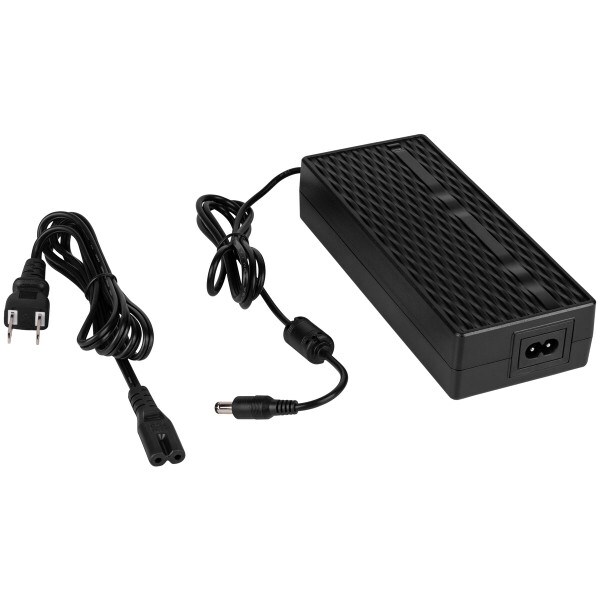

  • Package includes an AC adapter and power cable
Get Notified When Available

We'll send you an email when Topping PA3 Desktop Amplifier 80WPC is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Topping PA3 Desktop Amplifier 80WPC

Utilizing Class D amplifier topology, the Topping PA3 delivers a stunning 80 Watts per channel. The strong output is powerful enough to drive 10" speakers with ease. Connect two devices to the amp at once with the two stereo RCA inputs. The enclosure features an arc design with a screw less from plate that gives the amp a modern look. Fault indication LEDs on the front panel allow you to monitor the operation of the amp. The built-in MCU microprocessor monitors the amp to prevent overloads, overheating, over voltage, and low voltage situations. The MCU also provides input memory for the PA3. The PA3 is built from high quality electrical components that provides detailed, audiophile sound quality.

Specifications: • Amplifier type: Class D desktop • Analog inputs: 2 x RCA (L+R) • Analog output: Banana jack, BTL output • Suitable speaker impedance: 4 - 8 ohms • Maximum output power: 80W x 2 (4 ohms), 70W x 2 (8 ohms) • THD+N @ 1 kHz • Frequency response: 20-20,000 Hz • Input sensitivity: 0.6Vrms (4 ohms), 0.9Vrms (8 ohms) • Noise (A weighting): <0.5mV • Gain: 29.3 dB • SNR: 89 dB (4 ohms), 91dB (8 ohms) • Amplifier chip: TDA7498E • Certifications: CE, RoHS, FCC • Dimensions: 11.6" x 8.2" x 3.1".

Product Details

BrandTopping
ModelPA3
Part Number310-346
UPC848864051277
Unit of MeasureEach
Weight2.75

Product Specifications

Power (RMS/Channel 8 ohms)51 - 100 Watts
Weight Range< 10 lbs.
