CLEARANCE Titan 10" Ribbed Paper Cone Foam Surround Woofer 4 Ohm

Factory BuyoutsPart # 299-1016
4 Questions, 11 Answers or
This Titan 10" 4 ohm woofer features a ribbed paper cone with foam surround. It's a high-value replacement speaker that's also a good choice for custom projects.

Key Features

  • Ribbed treated paper cone with foam surround
  • Perfect for building a fun, simple party speaker
  • High Qts makes this driver suitable for large sealed and free air designs
  • Extended basket design minimizes bottoming out during high excursion
Get Notified When Available

We'll send you an email when Titan 10" Ribbed Paper Cone Foam Surround Woofer 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

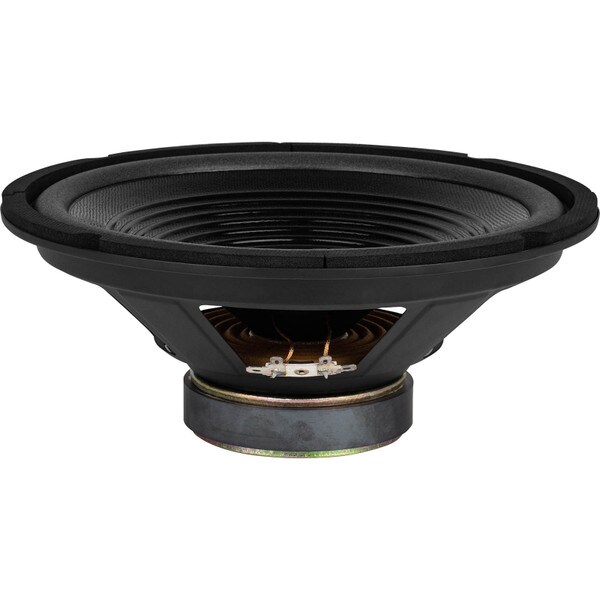

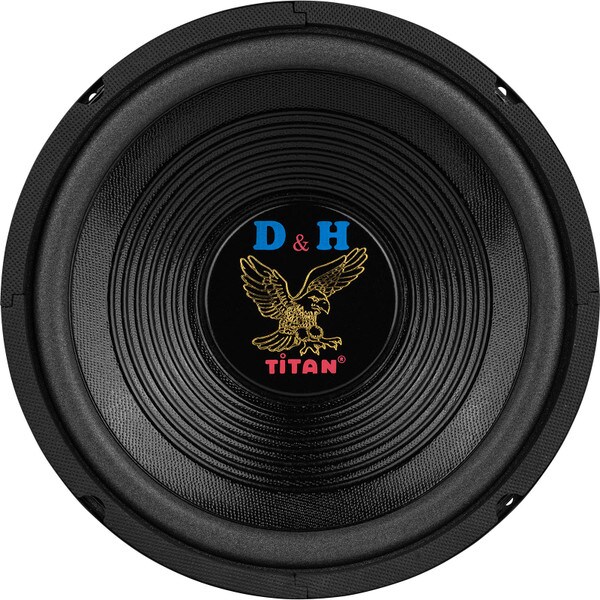

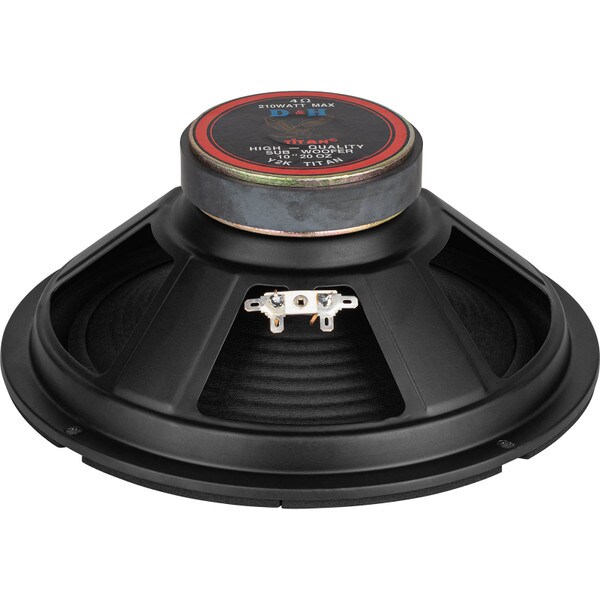

Titan 10" Ribbed Paper Cone Foam Surround Woofer 4 Ohm

This 10" 4 ohm woofer from Titan has a ribbed treated paper cone with a flat dust cap and foam half-roll surround. The high Qts makes this driver suitable for infinite baffle and sealed enclosures.

Factory buyout, quantities are limited.

Product Details

BrandFactory Buyouts
Part Number299-1016
UPC848864031149
Unit of MeasureEach
Weight3.45

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.625
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance
Frequency Response43 to 800Hz
Sensitivity88.5dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)43Hz
DC Resistance (Re)3.83Ω
Voice Coil Inductance (Le)0.86mH
Mechanical Q (Qms)3.97
Electromagnetic Q (Qes)1.43
Total Q (Qts)1.05
Compliance Equivalent Volume (Vas)2.77ft³
Mechanical Compliance of Suspension (Cms)0.466mm/N
BL Product (BL)4.57T·m
Diaphragm Mass Inc. Airload (Mms)28.4g
Maximum Linear Excursion (Xmax)4.5mm
Surface Area of Cone (Sd)344.5cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10"
Baffle Cutout Diameter9.125"
Depth4.125"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.55ft³
Sealed F346.9Hz
