CLEARANCE Timpano Audio TPT-MR10-4 Slim 10" Midrange Speaker 4 Ohm

Timpano AudioPart # 294-3310
Model: TPT-MR10-4 Slim

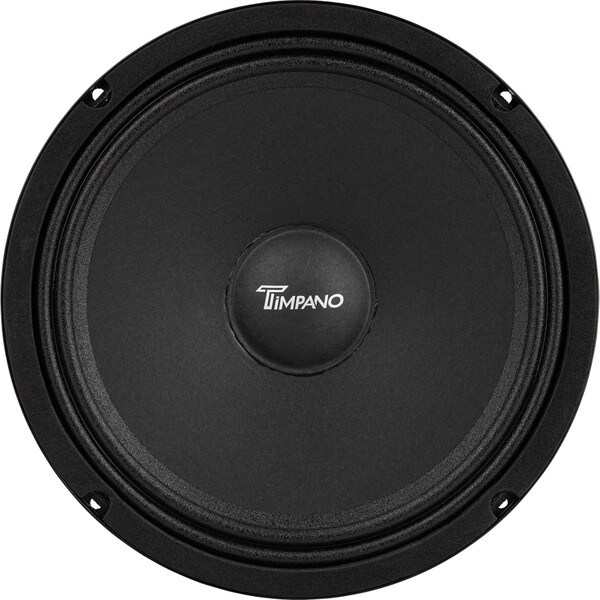

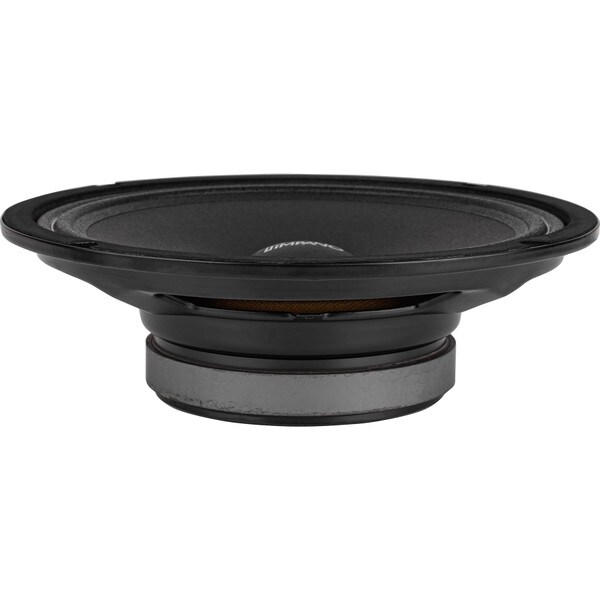

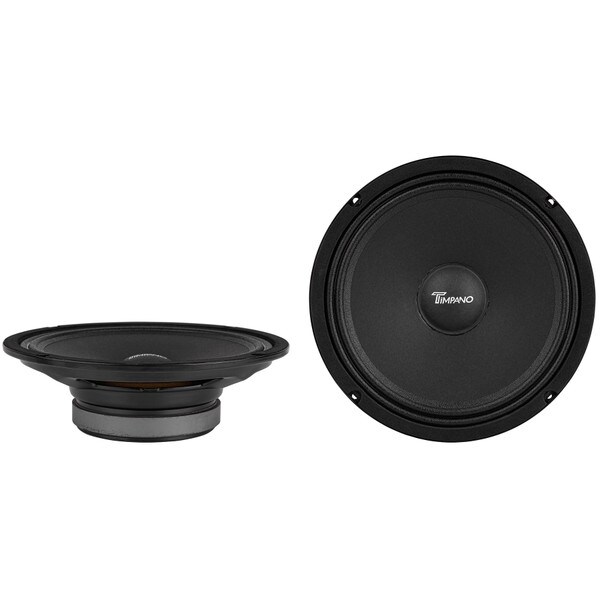

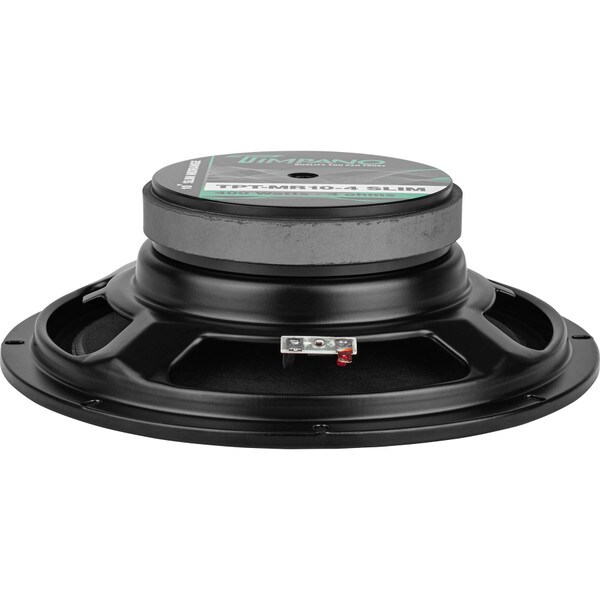

Timpano Audio's TPT-MR10-4 Slim 10" midrange driver provides remarkably smooth response in the vocal region even at extreme output levels. With a high Q and a mounting depth of just under 3", this driver is ideal for use in low profile installations, such as car doors. Capable of handling 200 watts RMS and with a sensitivity of 95 dB, the TPT-MR10-4 Slim is designed to deliver continuous high SPL output.

Key Features

  • Naturally damped cone for natural vocal reproduction and flat response
  • 95 dB sensitivity to provide high SPL when needed
  • Only 2.85" deep for installations where space is at a premium
  • Vented pole piece keeps voice coil cool for continuous high output
Get Notified When Available

We'll send you an email when Timpano Audio TPT-MR10-4 Slim 10" Midrange Speaker 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Timpano Audio TPT-MR10-4 Slim 10" Midrange Speaker 4 Ohm

The TPT-MR10-4 Slim 10" midrange from Timpano Audio can perform well in a professional sound system, but has been designed for use in the high SPL mobile audio market. With a naturally damped paper cone and double roll cloth surround, this driver keeps resonances under control for natural response throughout the sensitive vocal range. The vented pole piece and 2" voice coil are designed to dissipate heat allowing the TPT-MR10-4 Slim to handle 400 watts of continuous power. The large ferrite motor is less susceptible to heat than neodymium to minimize power compression when driven at high output for long periods of time. Requiring just under 3" of depth, this driver is perfect for the low profile installations that are necessary in today's extreme output mobile sound systems.

Product Details

BrandTimpano Audio
ModelTPT-MR10-4 Slim
Part Number294-3310
UPC611056239049
Unit of MeasureEach
Weight6.75

Product Specifications

Nominal Diameter10"
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance4Ω
Frequency Response80 to 4,500Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)70.2Hz
DC Resistance (Re)3.2Ω
Mechanical Q (Qms)10.4
Electromagnetic Q (Qes)0.78
Total Q (Qts)0.73
Compliance Equivalent Volume (Vas)1.3ft³
Mechanical Compliance of Suspension (Cms)0.18mm/N
BL Product (BL)7.25T·m
Diaphragm Mass Inc. Airload (Mms)28.1g
Surface Area of Cone (Sd)380cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Baffle Cutout Diameter9.05"
Depth2.85"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.75ft³
Sealed F390.6Hz
Vented Volume1.38ft³
Vented F363Hz
