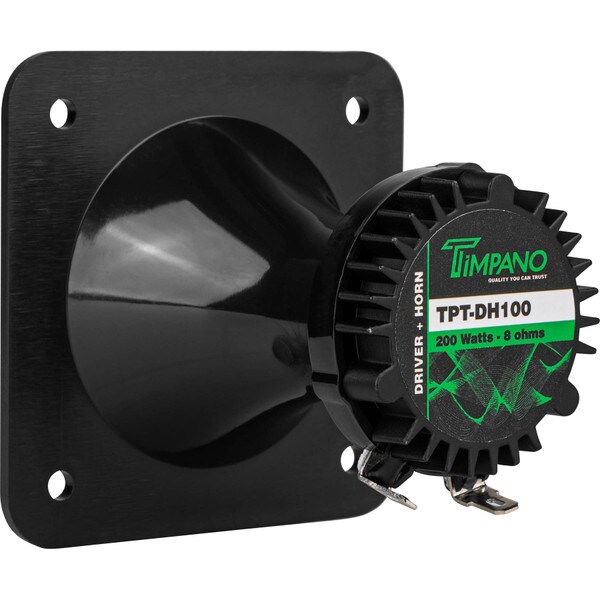

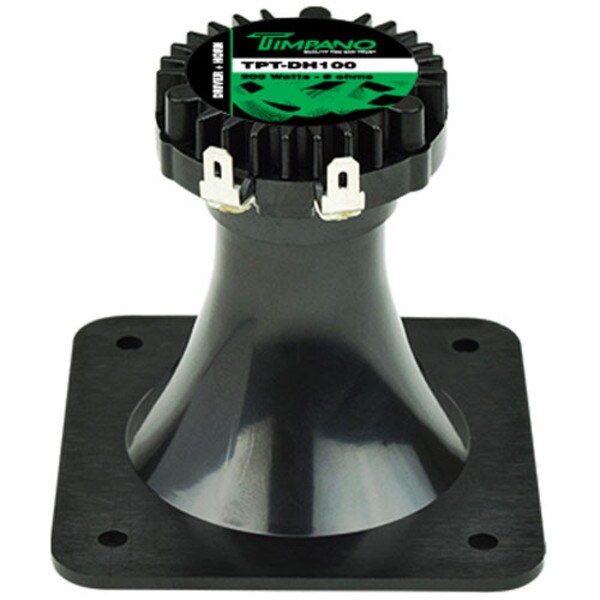

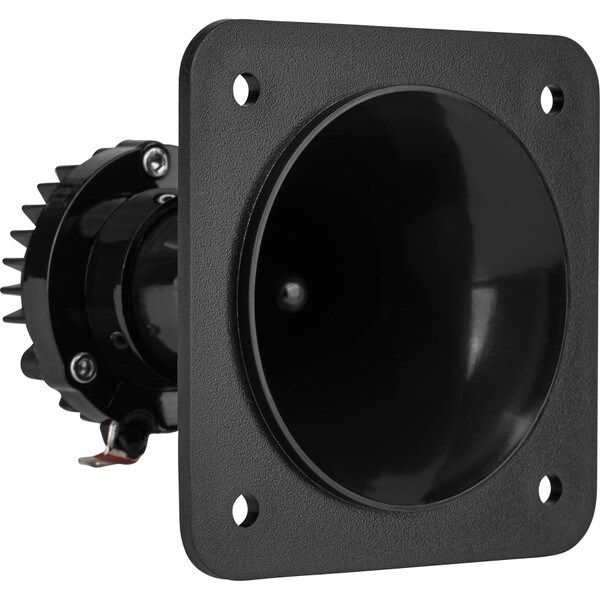

Timpano Audio TPT-DH100 1" Neodymium Horn Loaded Bullet Tweeter 8 Ohm

Timpano AudioPart # 294-3358
Model: TPT-DH100
Timpano Audio's high output TPT-DH100 compact horn tweeter uses powerful neodymium motor to cut weight without sacrificing output, which is ideal for locations such as car doors or trunk lids. This tweeter uses a 1" phenolic diaphragm to produce smooth and dynamic response.

Key Features

  • Less than 1/2 lb for easy installation in car doors and trunk lids
  • 106 dB sensitivity for high output even with moderate power
  • Naturally damped phenolic diaphragm produces smooth natural response
  • Compact horn design for controlled dispersion and high efficiency
Your Price: $19.95
MSRP: $24.94
Save $4.99 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Timpano Audio TPT-DH100 1" Neodymium Horn Loaded Bullet Tweeter 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Timpano Audio TPT-DH100 1" Neodymium Horn Loaded Bullet Tweeter 8 Ohm

The TPT-DH100 compact horn loaded tweeter from Timpano Audio weighs less than 1/2 pound but has enough output capability to keep up with high SPL sound systems. A 1" phenolic diaphragm is used to produce a smooth and natural response all the way up to 18,000 Hz. The horn loaded design controls dispersion and increases output to put the sound right where you need it. With a high power neodymium motor the TPT-DH100 weighs less than 1/2 pound without sacrificing efficiency or overall output capability. The low weight and compact design make this the ideal tweeter for installation into car doors and trunk lids.

Specifications: • Power handling: 75 watts RMS (crossover frequency 5,000 kHz, 12 dB/octave), 150 watts max • Impedance: 8 ohms • Useable range: 1,500-18,000 Hz • Recommended crossover: 5,000 Hz • SPL: 106 dB 2.83V/1m • Dimensions: 3-3/8" H x 3-3/8" W x 3-1/4" D • Cutout dimensions: 2-3/4" Dia.

Product Details

BrandTimpano Audio
ModelTPT-DH100
Part Number294-3358
UPC611056238639
Unit of MeasureEach
Weight0.4

Product Specifications

Diaphragm MaterialPhenolic
Power Handling (RMS)75 Watts
Impedance
