Tectonic Audio Exciter 13mm 2W 8 Ohm TEAX13C02-8/RH

TectonicPart # 297-214
Model: TEAX13C02-8/RH
The Tectonic TEAX13C02-8/RH 13 mm exciter provides a small, inexpensive means of turning flat panels of most compositions into an audio loudspeaker.

Key Features

  • Turn virtually any surface into a hi-fi speaker
  • The exciter's high efficiency reduces power requirements
  • Diminutive 1-1/4" diameter and 3/8" height for use in extremely tight spaces
Similar items that may interest you:
Dayton Audio Coin Type Audio Exciter 13mm 3W 8 Ohm DAEX13CT-8
Price: $4.59Part # 295-216
See all items in Exciters & Tactile Transducers
Your Price: $4.29
MSRP: $9.99
Save $5.70 (57%)
Bulk Pricing
Quantity:Qty: 1-3 $4.29/ea
Quantity:Qty: 4+ $3.84/ea
555 In Stock
Get Notified When Available

We'll send you an email when Tectonic Audio Exciter 13mm 2W 8 Ohm TEAX13C02-8/RH is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

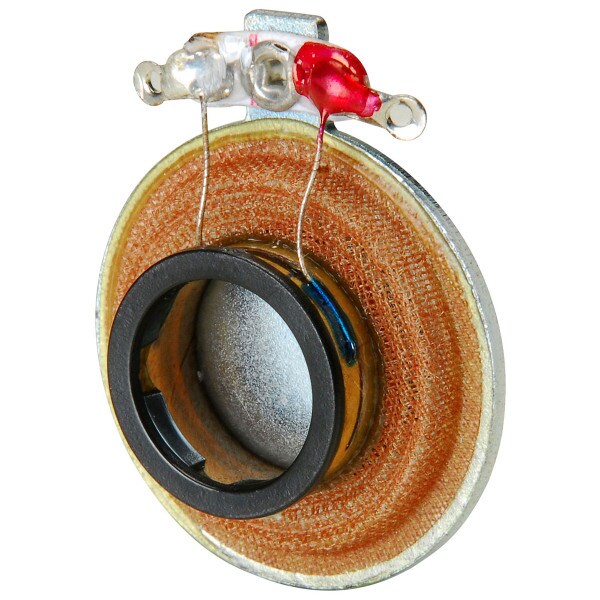

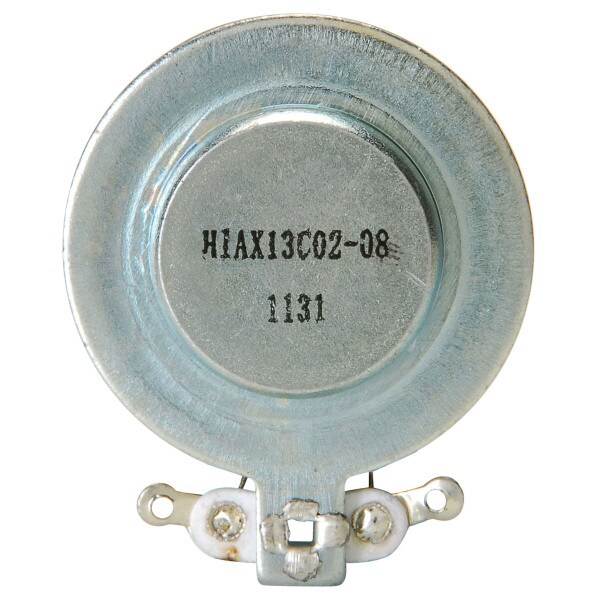

Tectonic Audio Exciter 13mm 2W 8 Ohm TEAX13C02-8/RH

Tectonic 13 mm TEAX13C02-8/RH turns virtually any surface into a high fidelity loudspeaker. This exciter's extremely small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!

The TEAX13C02-8/RH exciter employs a neodymium magnet for maximum magnetic flux around the voice coil and increased sensitivity. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, two-part epoxy is recommended. Two terminals extend from the exciter for wire soldering purposes.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Specifications: • Power handling: 2 watts RMS • VCdia: 13 mm • Nominal impedance: 8 ohms • Dimensions: 1.25" (31.75 mm) dia. x 0.35" (9 mm) H • Weight: 10 grams.

Product Details

BrandTectonic
ModelTEAX13C02-8/RH
Part Number297-214
UPC844632093777
Unit of MeasureEach
Weight0.022

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)2 Watts
Impedance8Ω
