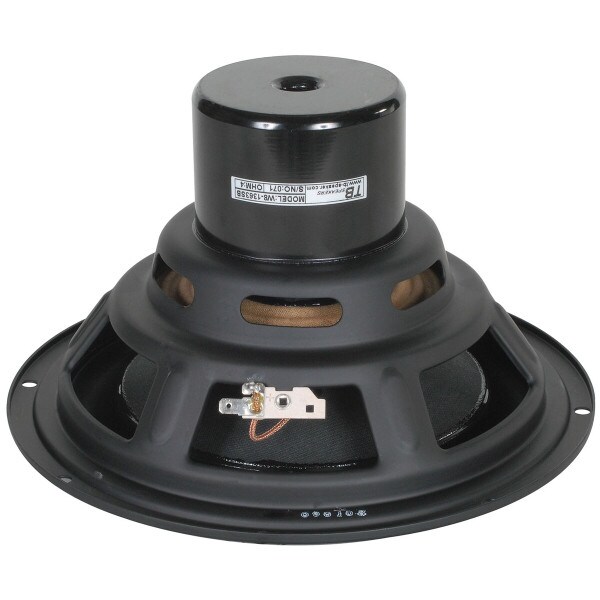

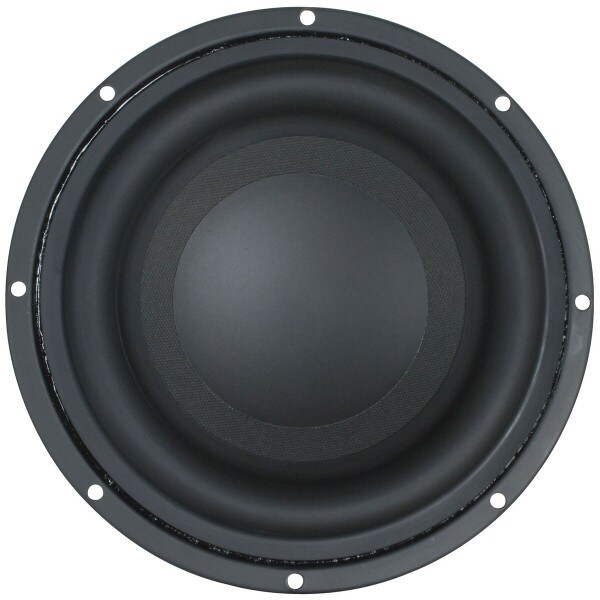

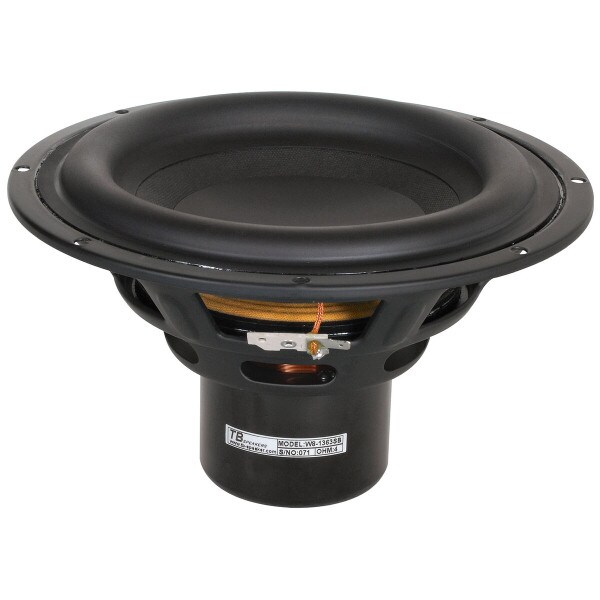

Tang Band W8-1363SB 8" Subwoofer

Tang Band
Part #264-833

Tang Band W8-1363SB 8" Subwoofer

Tang Band
Part #264-833
Model: W8-1363SB
Amazing bass in a compact package! This one-of-a-kind subwoofer features outstanding Xmax and a powerful neodymium motor. A wide roll rubber surround, heavy-duty paper cone, flat spider, and large 4-layer voice coil give impressive bass and high power handling.
Your Price: $191.98
+ FREE SHIPPING
MSRP: $249.99
Save $58.01 (23%)
Bulk Pricing
Quantity:Qty: 50+$191.98/ea

Out of Stock

Ships in 90-120 days, minimum order quantity 50 pcs.
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Tang Band W8-1363SB 8" Subwoofer

Amazing bass in a compact package! This one-of-a-kind subwoofer features outstanding Xmax and a powerful neodymium motor. A wide roll rubber surround, heavy-duty paper cone, flat spider, and large 4-layer voice coil give impressive bass and high power handling. Venting under the spider and through the pole reduce compression and maximize heat dissipation. This is the ultimate small box 8" subwoofer!

Product Details

BrandTang Band
ModelW8-1363SB
Part Number264-833
UPC844632008443
Unit of MeasureEach
Weight5.8801

Product Specifications

Nominal Diameter8"
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance
Frequency Response30 to 800Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)30Hz
DC Resistance (Re)3.2Ω
Voice Coil Inductance (Le)0.66mH
Mechanical Q (Qms)4.26
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.67ft³
Mechanical Compliance of Suspension (Cms)0.28mm/N
BL Product (BL)14.02T·m
Diaphragm Mass Inc. Airload (Mms)99.78g
Maximum Linear Excursion (Xmax)12mm
Surface Area of Cone (Sd)220cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter8.62"
Baffle Cutout Diameter7.2"
Depth5.27"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F388.2Hz
Vented Volume0.75ft³
Vented F329.9Hz
