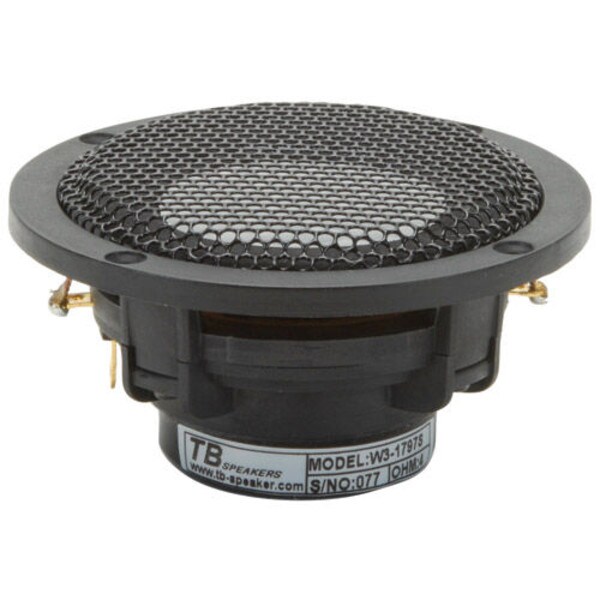

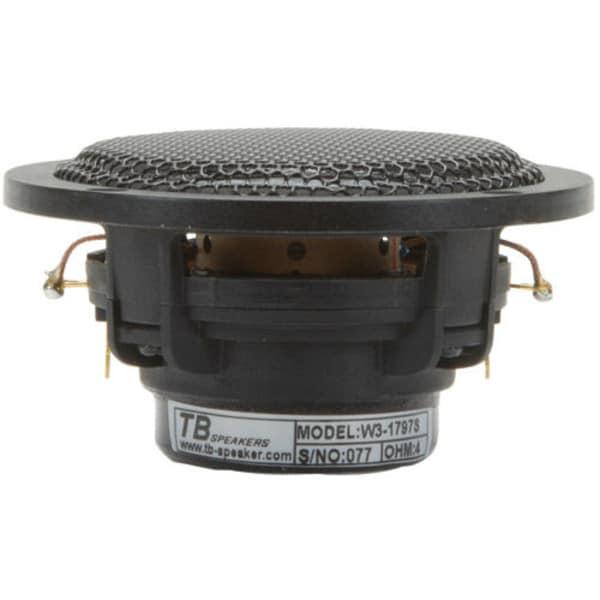

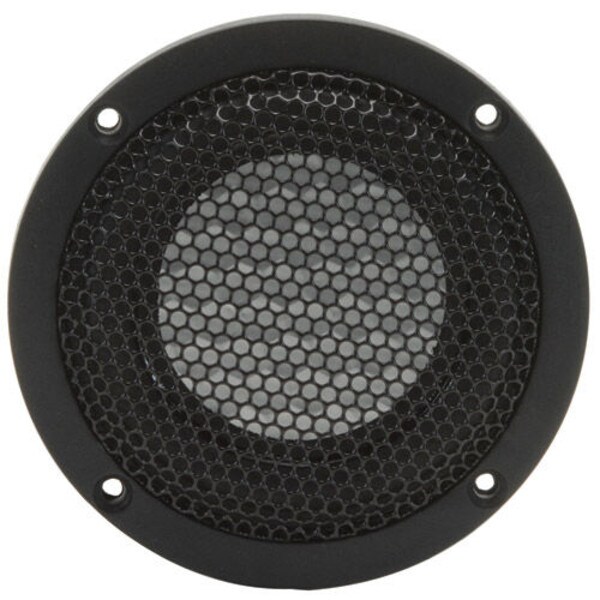

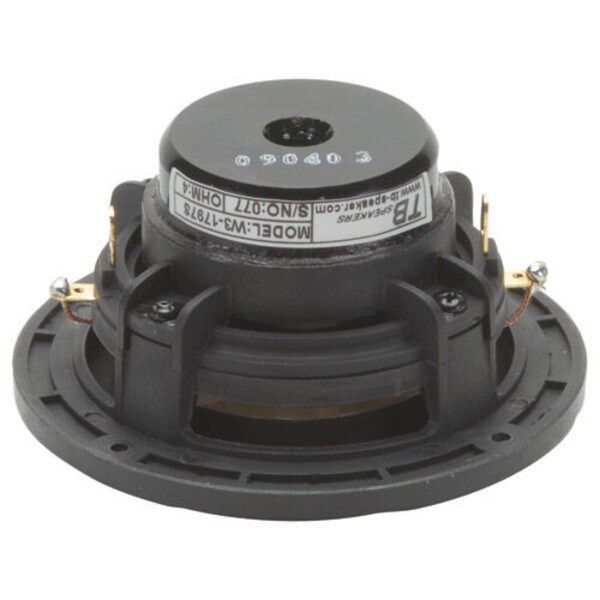

Tang Band W3-1797S 3" Neodymium Midrange Driver

Tang BandPart # 264-888
Model: W3-1797S
This compact driver features a self-shielding neodymium magnet system, flat aluminum sandwich cone, integrated protective screen, and extremely low second and third order distortion.
Your Price: $104.98
+ FREE SHIPPING
MSRP: $136.99
Save $32.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $104.98/ea
Quantity:Qty: 4-9 $99.73/ea
Quantity:Qty: 10+ $94.48/ea
37 In Stock
Get Notified When Available

We'll send you an email when Tang Band W3-1797S 3" Neodymium Midrange Driver is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band W3-1797S 3" Neodymium Midrange Driver

This compact driver features a self-shielding neodymium magnet system, flat aluminum sandwich cone, integrated protective screen, and extremely low second and third order distortion. The Tang Band W3-1797S is intended for full range use as well as dedicated midrange, with very wide dispersion characteristics.

Specifications: • Power handling: 25 watts RMS/50 watts max • VCdia: 1-1/4" • Impedance: 4 ohms • Re: 3.6 ohms • Frequency range: 90-20,000 Hz • Fs: 90 Hz • SPL: 85 dB 1W/1m • Vas: 0.04 cu. ft. • Qms: 1.66 • Qes: 0.36 • Qts: 0.29 • Xmax: 1 mm • Dimensions: Overall diameter: 3.66", Cutout diameter: 2.9", Depth: 1.93".

Product Details

BrandTang Band
ModelW3-1797S
Part Number264-888
UPC844632078989
Unit of MeasureEach
Weight0.8

Product Specifications

Nominal Diameter3"
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance4Ω
Frequency Response90 to 20,000Hz
Sensitivity82dB 2.83V/1m
Voice Coil Diameter1.25"

Thiele-Small Parameters

Resonant Frequency (Fs)90Hz
DC Resistance (Re)3.6Ω
Mechanical Q (Qms)1.66
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.04ft³
Maximum Linear Excursion (Xmax)1mm

Materials of Construction

Cone MaterialAluminum

Mounting Information

Baffle Cutout Diameter2.9"
Depth1.93"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.04ft³
Sealed F3282.9Hz
Vented Volume0.05ft³
Vented F387.22Hz
