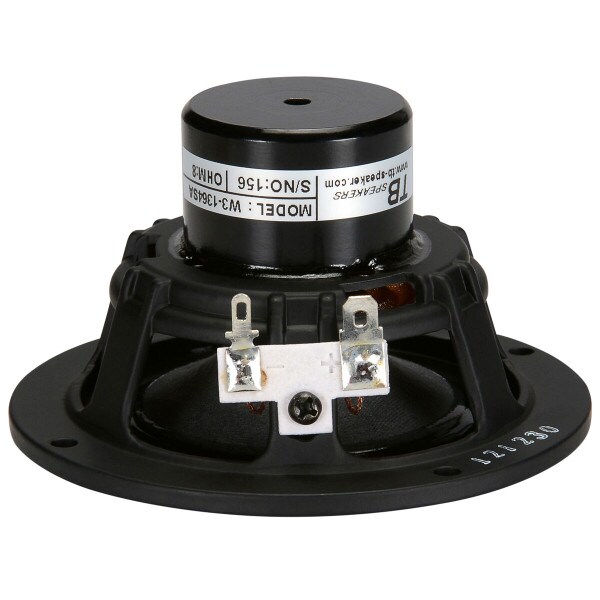

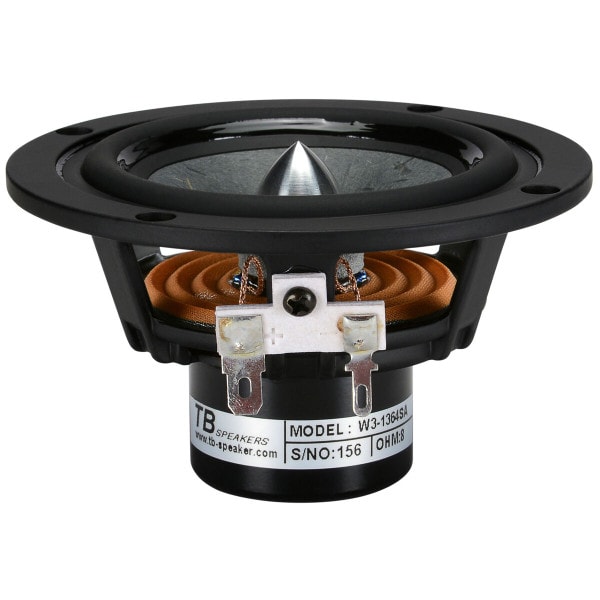

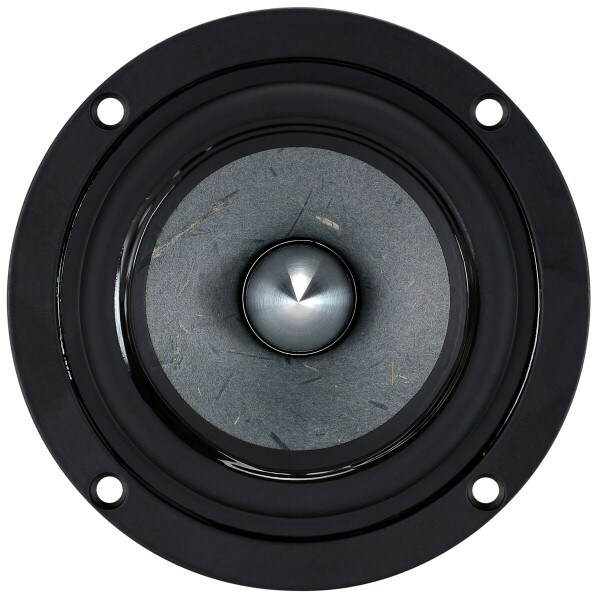

Tang Band W3-1364SA 3" Bamboo Cone Driver

Tang BandPart # 264-844
Model: W3-1364SA
A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further. The result of these features is a smooth frequency response with a very natural, open sound.

Key Features

  • Paper cone reinforced with bamboo fibers reduces cone resonances
  • Copper shorting ring lowers inductance and distortion
  • Powerful neodymium motor cuts weight without sacrificing performance
  • Suprisingly smooth response from 100 to 20,000 Hz
Your Price: $74.99
MSRP: $104.99
Save $30.00 (29%)
Bulk Pricing
Quantity:Qty: 1-3 $74.99/ea
Quantity:Qty: 4+ $71.99/ea
22 In Stock
Get Notified When Available

We'll send you an email when Tang Band W3-1364SA 3" Bamboo Cone Driver is back in stock or available for preorder.

Order in the next 13 hr 41 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band W3-1364SA 3" Bamboo Cone Driver

Another Tang Band first, Bamboo fiber cones! A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further. The result of these features is a smooth frequency response with a very natural, open sound.

Product Details

BrandTang Band
ModelW3-1364SA
Part Number264-844
UPC844632003516
Unit of MeasureEach
Weight0.66

Product Specifications

Nominal Diameter3"
Power Handling (RMS)12 Watts
Power Handling (MAX)25 Watts
Impedance
Frequency Response105 to 20,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)105Hz
DC Resistance (Re)6.6Ω
Mechanical Q (Qms)2.48
Electromagnetic Q (Qes)0.77
Total Q (Qts)0.59
Compliance Equivalent Volume (Vas)0.07ft³
Diaphragm Mass Inc. Airload (Mms)1.78g
Maximum Linear Excursion (Xmax)0.5mm

Materials of Construction

Cone MaterialBamboo Fiber / Paper
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3.625"
Baffle Cutout Diameter3"
Depth2"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.07ft³
Sealed F3142.3Hz
Vented Volume0.07ft³
Vented F398Hz
