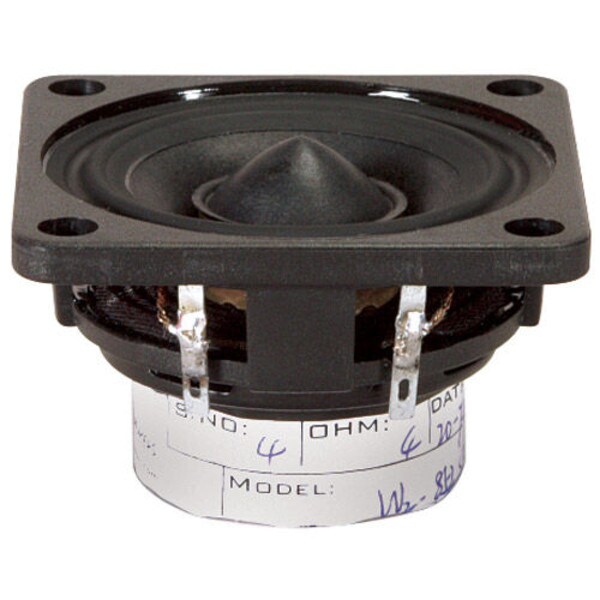

Tang Band W2-852SH 2" Shielded Speaker Driver

Tang BandPart # 264-808
Model: W2-852SH
The W2-852SF is an elegant 2" driver featuring a paper cone and specially designed paper dustcap.

Key Features

  • Unique full range design with a vented spider and S-roll surround
  • Resonant-resistant polymer frame
  • Dust cap is attached directly to the voice coil for improved high frequency response
Your Price: $36.45
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 300+ $36.45/ea
Out of Stock
Get Notified When Available

We'll send you an email when Tang Band W2-852SH 2" Shielded Speaker Driver is back in stock or available for preorder.

Ships in 90-120 days, minimum order quantity 300 pcs.
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band W2-852SH 2" Shielded Speaker Driver

The W2-852SF is an elegant 2" driver featuring a paper cone and specially designed paper dustcap. This rigid dustcap is attached directly to the voice coil, providing improved high frequency performance and increased effective surface area. A new cast polymer chassis allows allows for easier installation and a cleaner look. A vented spider, s-shaped surround, and shielded neodymium magnet round out the attributes. Great high frequency extension and good off-axis response makes this very capable as a mid-tweeter.

Product Details

BrandTang Band
ModelW2-852SH
Part Number264-808
UPC844632019418
Unit of MeasureEach
Weight0.3

Product Specifications

Nominal Diameter2"
Power Handling (RMS)8 Watts
Power Handling (MAX)16 Watts
Impedance
Frequency Response160 to 20,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.8"

Thiele-Small Parameters

Resonant Frequency (Fs)160Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)1.49
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.008ft³
Mechanical Compliance of Suspension (Cms)1.05mm/N
BL Product (BL)2.99T·m
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)13cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter2.24"
Baffle Cutout Diameter2.04"
Depth1.39"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Vented Volume0.01ft³
Vented F3153.3Hz
