We'll send you an email when Tang Band W2-1803S 2" Neodymium Poly Full-Range Driver is back in stock or available for preorder.
This item available through special order only. Minimum order quantity is 50 pieces

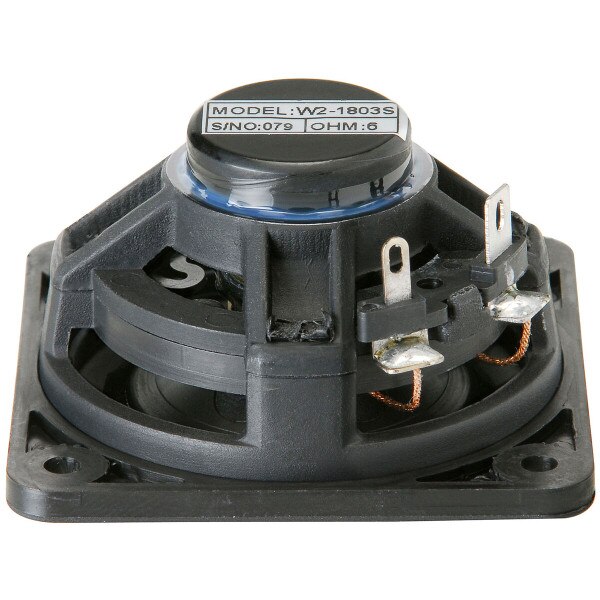

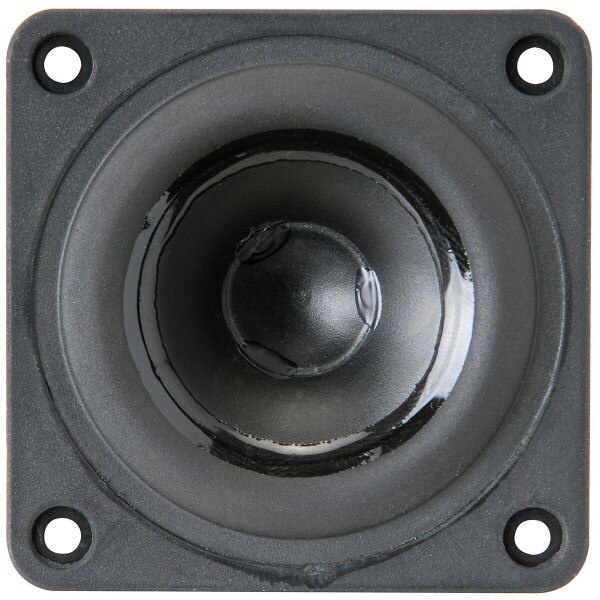

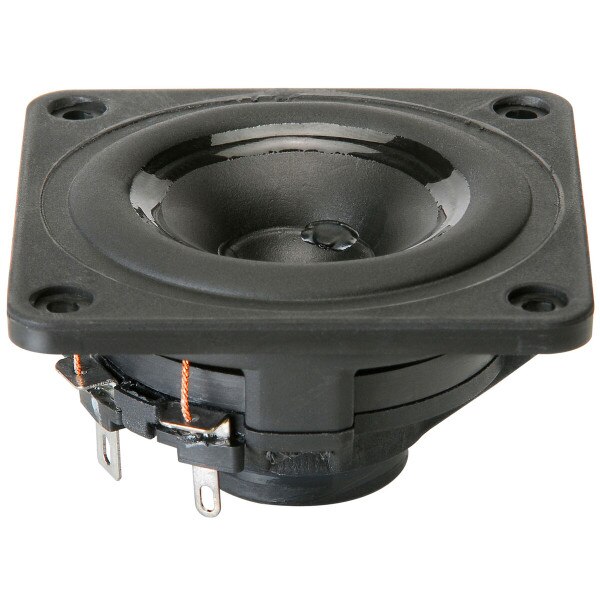

Miniature full-range transducer. Polypropylene diaphragm with Santoprene rubber surround. 9/16" aluminum voice coil and high-energy, lightweight neodymium magnet structure. Works well in small computer audio applications, or wherever tiny hi-fidelity drivers are required.
Product Details | |
|---|---|
| Brand | Tang Band |
| Model | W2-1803S |
| Part Number | 264-885 |
| UPC | 844632078958 |
| Unit of Measure | Each |
| Weight | 0.15 |
Product Specifications | |
|---|---|
| Nominal Diameter | 2" |
| Power Handling (RMS) | 3 Watts |
| Power Handling (MAX) | 6 Watts |
| Impedance | 6Ω |
| Frequency Response | 155 to 20,000Hz |
| Sensitivity | 82dB 2.83V/1m |
| Voice Coil Diameter | 0.5625" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 155Hz |
| DC Resistance (Re) | 5.6Ω |
| Voice Coil Inductance (Le) | 0.08mH |
| Mechanical Q (Qms) | 2.84 |
| Electromagnetic Q (Qes) | 0.94 |
| Total Q (Qts) | 0.7 |
| Compliance Equivalent Volume (Vas) | 0.01ft³ |
| Mechanical Compliance of Suspension (Cms) | 1.37mm/N |
| BL Product (BL) | 2.12T·m |
| Diaphragm Mass Inc. Airload (Mms) | 0.77g |
| Maximum Linear Excursion (Xmax) | 0.7mm |
| Surface Area of Cone (Sd) | 13cm² |
Materials of Construction | |
|---|---|
| Cone Material | Poly |
| Surround Material | Santoprene® |
| Magnet Material | Neodymium |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 2.24" |
| Baffle Cutout Diameter | 2.05" |
| Depth | 1.25" |
| # Mounting Holes | 4 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.02ft³ |
| Sealed F3 | 178.1Hz |
| Vented Volume | 0.02ft³ |
| Vented F3 | 119.6Hz |
