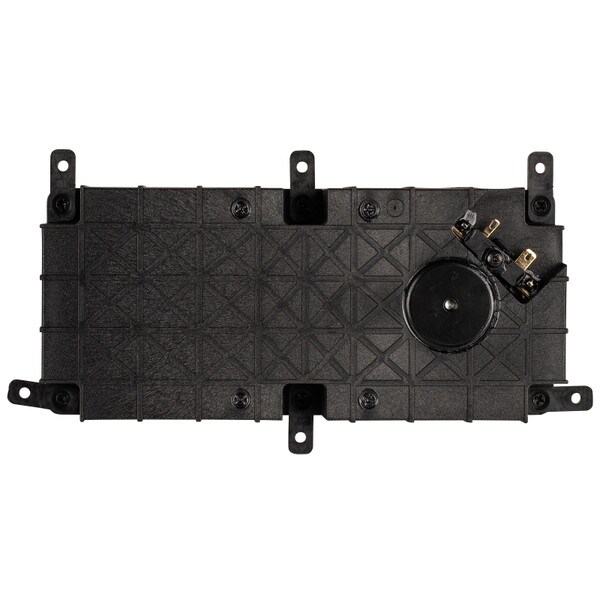

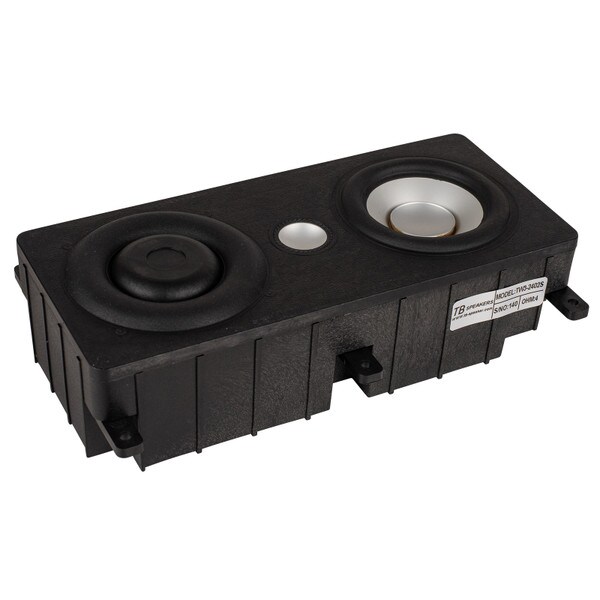

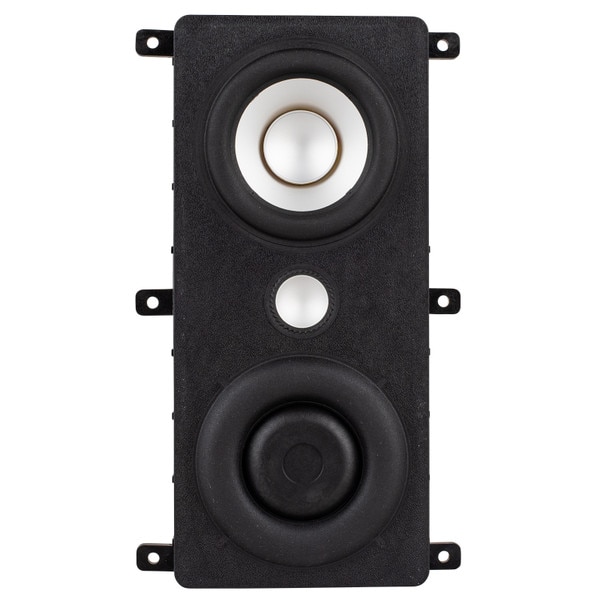

Tang Band TW3-2402S 3" 2-Way Speaker Module

Tang BandPart # 264-984
Model: TW3-2402S
2 Questions, 3 Answers or
The Tang Band TW3-2402S is a high-performance sound module designed to deliver exceptional sound quality. With its advanced design and superior materials, this speaker delivers precise and clear audio down to 55Hz. Perfect for home audio systems, studio monitors, and custom speaker projects, the TW3-2402S enhances your listening experience with unparalleled clarity and detail.

Key Features

  • Frequency response up to 40 kHz for clarity in your high frequencies
  • An aluminum diaphragm offers advanced heat dissapation
  • Compact and lightweight for optimal versatility
  • Screw holes can rotate for better flexibility in use options
  • Designed to exclude uses of glue
  • One pair is designed to cover a 430 sq ft room
Your Price: $80.10
MSRP: $99.98
Save $19.88 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Tang Band TW3-2402S 3" 2-Way Speaker Module is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band TW3-2402S 3" 2-Way Speaker Module

The Tang Band TW3-2402S tweeter is designed to deliver clear and precise high-frequency sound for audiophiles and DIY enthusiasts. With an advanced diaphragm design and a frequency response up to 40 kHz, it reproduces detailed high-frequency audio that few other modules can deliver. Whether for home audio systems, studio monitors, or your next project, the TW3-2402S offers a reliable option for those seeking improved high-frequency clarity.Featuring a neodymium magnet, the TW3-2402S provides excellent performance in a compact size, making it versatile for various installations. The Tang Band TW3-2402S is a solid contender for enhancing your high-end experience.

  • Driver (Woofer)：3" dome shape driver
  • Driver (Tweeter)：0.71" dome shape driver
  • Diaphragm Material: Alum. composite with elastomer
  • Housing Material: PP composite material
  • Finish: Black
  • Dimensions：8.03" x 4.72" x 2.24"
  • Voice Coil Diameter (Woofer)：1"
  • Voice Coil Diameter (Tweeter)：0.72"
  • Nominal：4 Ohms
  • Power Input：20 watts RMS, 40 watts max
  • Frequency Response：55Hz - 40K Hz
  • Sensitivity 1W/1m：83 dB
  • Fs：55 Hz

Product Details

BrandTang Band
ModelTW3-2402S
Part Number264-984
UPC848864076942
Unit of MeasureEach
Weight1.3

Product Specifications

Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance4Ω
Frequency Response55 to 40,000Hz
Sensitivity83dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)55Hz

Materials of Construction

Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

# Mounting Holes6
