Tang Band T1-2025SC Full-Range Speaker Module 1-5/8" x 1-1/2"

Tang BandPart # 264-939
Model: T1-2025SC

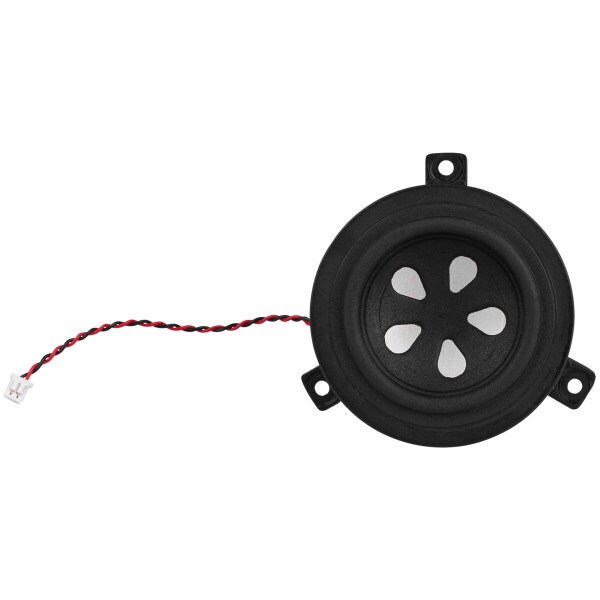

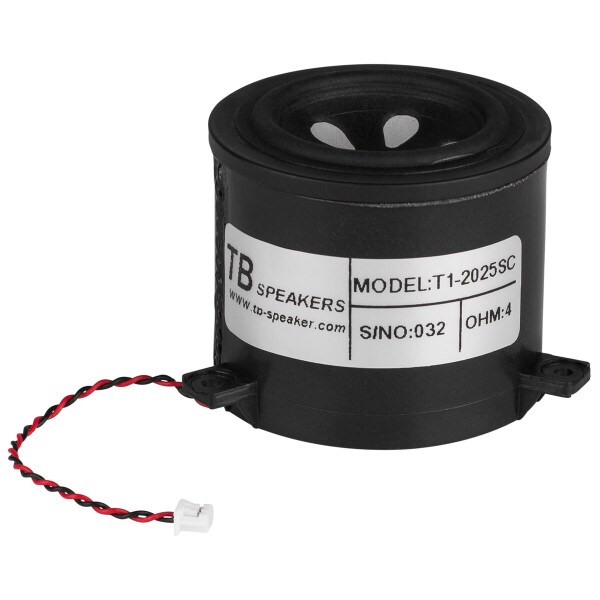

Tang Band's T1-2025SC speaker module features a passive radiator-assisted 1" aluminum composite cone full-range that plays from 95 to 20,000 Hz in a tiny 1.65" diameter package. This module makes it easy to design extremely compact speaker systems capable of impressive output.

Key Features

  • Tiny 1-5/8" diameter self-contained design
  • 1" mm damped aluminum composite cone driver with rubber surround

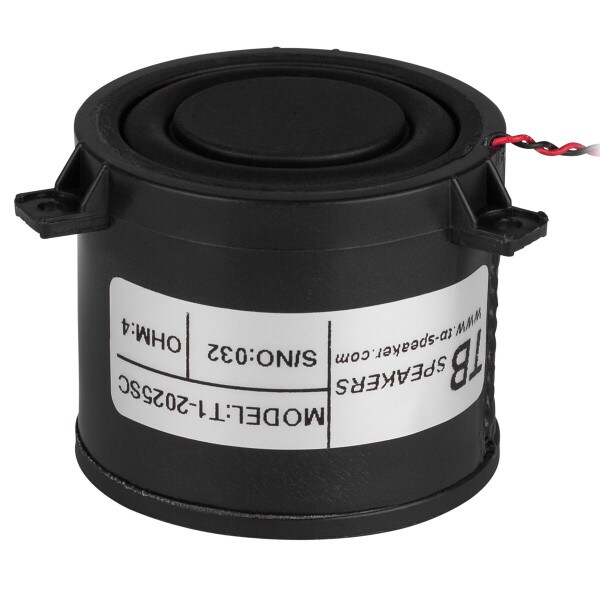

  • Rear-mounted passive radiator extends response down to 75 Hz
  • Just add an amplifier for high-quality, full-range sound!
Your Price: $26.28
MSRP: $43.99
Save $17.71 (40%)
Bulk Pricing
Quantity:Qty: 1-3 $26.28/ea
Quantity:Qty: 4+ $24.96/ea
In Stock
Get Notified When Available

We'll send you an email when Tang Band T1-2025SC Full-Range Speaker Module 1-5/8" x 1-1/2" is back in stock or available for preorder.

Order in the next 7 hr 37 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band T1-2025SC Full-Range Speaker Module 1-5/8" x 1-1/2"

Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel TV speakers, and portable audio systems. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

The T1-2025SC speaker module is built around a passive radiator assisted, 1" (25.4 mm) damped aluminum composite cone driver. This allows for an extremely wide frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment. This module is ideal for use in toys and models, desktop speakers, sound bars, and portable speaker designs.

For power, we recommend the Tang Band KIT0058 (part # 264-966) 2 x 5 watt full range speaker module amplifier with Bluetooth. With built in high pass crossover, EQ, compression, and subwoofer out the KIT0058 makes it easy to power the T1-2025SC speaker module.

Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 80 Hz high pass filter for the best possible sound. Higher power handling and output is possible by deploying multiple modules together.

Product Details

BrandTang Band
ModelT1-2025SC
Part Number264-939
UPC848864050515
Unit of MeasureEach
Weight0.2

Product Specifications

Nominal Diameter1"
Bolt Circle Diameter2.165
Power Handling (RMS)2 Watts
Power Handling (MAX)4 Watts
Impedance4Ω
Frequency Response95 to 20,000Hz
Sensitivity78dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)95Hz

Materials of Construction

Cone MaterialAluminum / Magnesium
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter1.653"
Baffle Cutout Diameter1.653"
Depth1.5"
# Mounting Holes3
