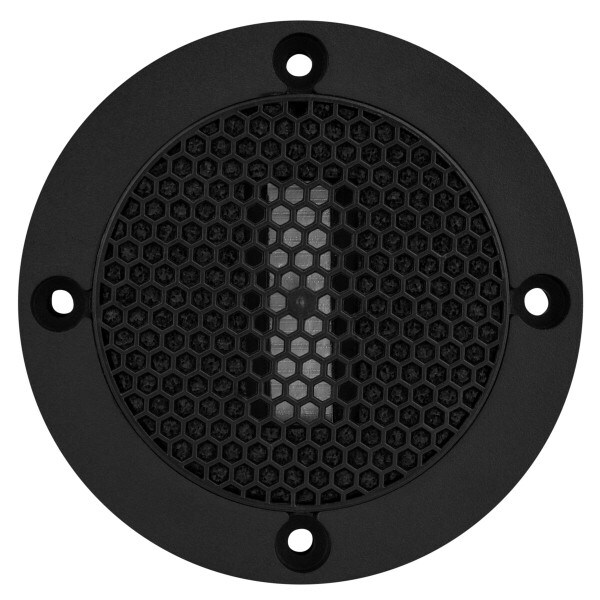

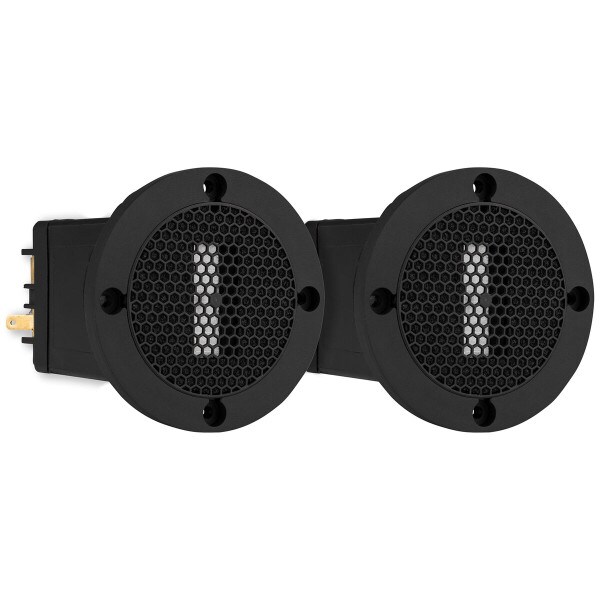

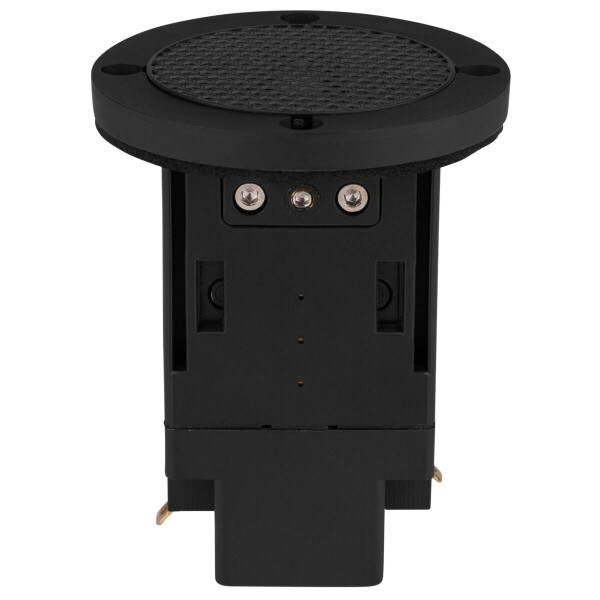

Tang Band RT-2202S Aluminum Ribbon Tweeter Matched Pair 6 Ohm

Tang BandPart # 264-849
Model: RT-2202S
Tang Band's acoustically matched RT-2202S ribbon tweeter pair uses an extremely lightweight aluminum diaphragm to provide incredible detail and unmatched transient response. With extremely smooth response up to 30,000 Hz, tweeter is exceptionally easy to work with.

Key Features

  • Remarkably light aluminum diaphragm delivers incredible transient response
  • Integrated grill protects the delicate ribbon from fingers and other foreign objects
  • Matching transformer provides an easy load to most amplifiers
  • Powerful neodymium motor for precise diaphragm control
  • This item available through special order only. Minimum order quantity is 50 pieces
Your Price: $199.98
+ FREE SHIPPING
MSRP: $259.99
Save $60.01 (23%)
Bulk Pricing
Quantity:Qty: 50+ $199.98/ea
Out of Stock
Get Notified When Available

We'll send you an email when Tang Band RT-2202S Aluminum Ribbon Tweeter Matched Pair 6 Ohm is back in stock or available for preorder.

Ships in 90-120 days, minimum order quantity 50 pcs.
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band RT-2202S Aluminum Ribbon Tweeter Matched Pair 6 Ohm

This item available through special order only. Minimum order quantity is 50 pieces

Matched by the manufacturer to be within 1.5 dB of each other from 3,000 to 20,000 Hz, Tang Band's RT-2202S aluminum ribbon tweeter pair will deliver everything you need for a true reference quality system. The extremely low moving mass and powerful motor allows this ribbon tweeter to reproduce the finest details while delivering incredibly low levels of distortion. Thanks to the small ribbon design Tang Band has managed to minimize the vertical lobing issues associated with most larger ribbons. In addition, foam surrounds the diaphragm to reduce diffraction from the faceplate keeping response as smooth as possible. The RT-2202S is an excellent choice for your next speaker design.

Specifications: • Power Handling: 8 watts RMS (no crossover)/80 watts max • Impedance: 6 ohms • Frequency range: 2,000-35,000 Hz • SPL: 91 dB 1W/1m • Recommended minimum crossover frequency: 2,500 @ 12dB/octave.

Note: The rear assembly of this tweeter is not airtight, therefore it is recommended that this tweeter be mounted in an isolated enclosure or in an open baffle so the rear of the diaphragm is not exposed to extreme pressure. Also, to prevent damage to the diaphragm, do not input a signal below 1,000 Hz to this tweeter without an adequate crossover network.

Caution: Use care when removing these tweeters from the package. Due to the strength of the magnets, do not allow the tweeters to come into contact with each other. Damage to the tweeters or severely pinched fingers may occur.

Product Details

BrandTang Band
ModelRT-2202S
Part Number264-849
UPC848864039237
Unit of MeasureEach
Weight3.5

Product Specifications

Cutout Diameter1.81
Tweeter TypeRibbon
Power Handling (RMS)8 Watts
Impedance6Ω
Frequency Response2,000 to 35,000Hz
Sensitivity91dB 2.83V/1m

Thiele-Small Parameters

DC Resistance (Re)6Ω

Mounting Information

Overall Outside Diameter2.83"
Depth3.5"
