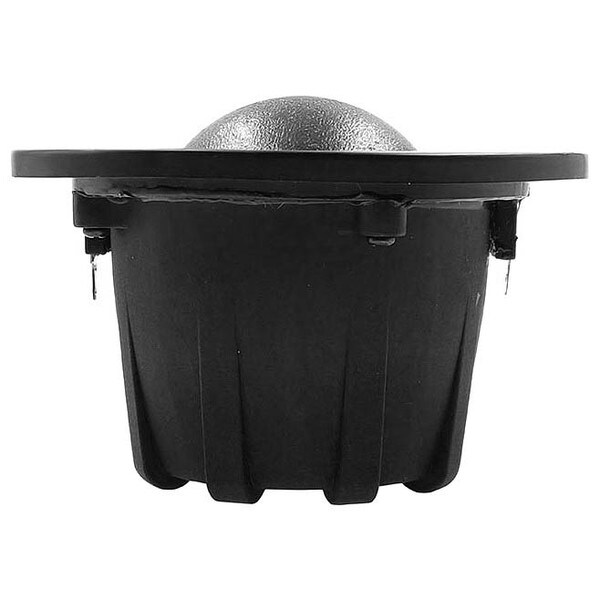

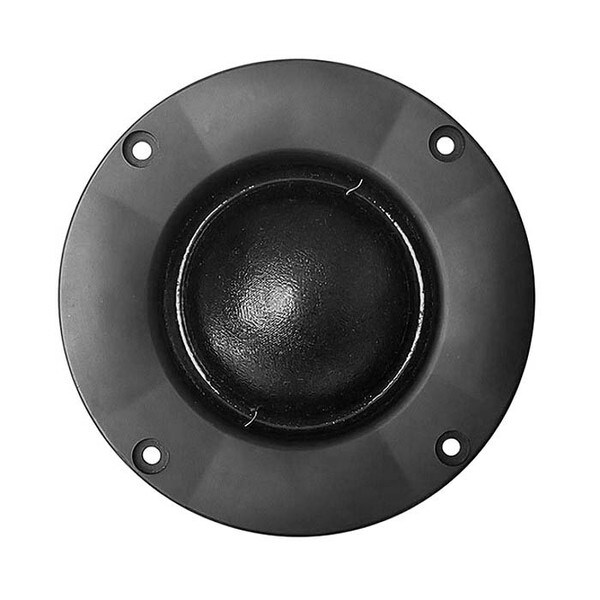

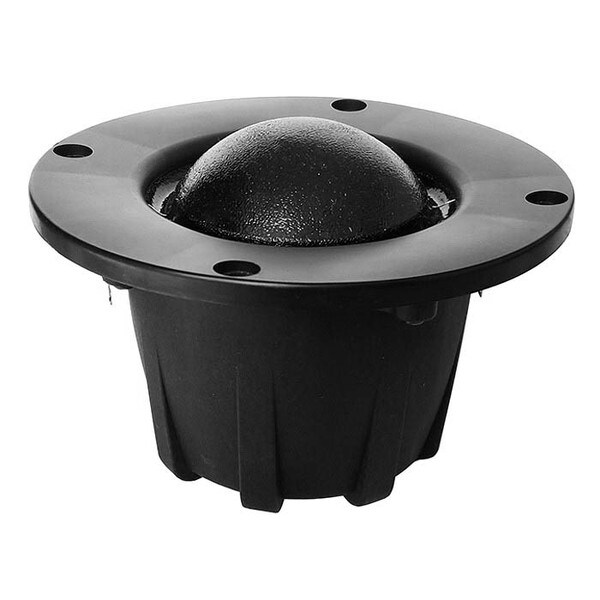

Tang Band 50-1426SE 2" Fabric Dome Midrange

Tang BandPart # 264-855
Model: 50-1426SE
The Tang Band 50-1426SE Fabric Dome Midrange is a great choice if you are looking for an easy to work with, low distortion, natural sounding midrange for your next project.

Key Features

  • Soft fabric dome with high-loss coating to help mitigate resonant peaks
  • Ferrofluid cooled for increased power handling
  • Optimized rear chamber for cleaner low-midrange sound
  • Neodymium magnet for increased motor strength and decreased size
  • Low second and third harmonic distortion for a very natural tone
Similar items that may interest you:
Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm
Price: $49.98Part # 285-022
Morel CAM 558 2-1/8" Soft Dome Midrange
Price: $124.00Part # 287-025
See all items in Midrange / Midbass Drivers & Full-Range Speakers
Your Price: $125.55
+ FREE SHIPPING
MSRP: $144.99
Save $19.44 (13%)
Bulk Pricing
Quantity:Qty: 1-3 $125.55/ea
Quantity:Qty: 4+ $119.27/ea
5 In Stock
Get Notified When Available

We'll send you an email when Tang Band 50-1426SE 2" Fabric Dome Midrange is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band 50-1426SE 2" Fabric Dome Midrange

The Tang Band 50-1426SE sports a coated fabric dome and optimized rear chamber for ultra low 2nd and 3rd order distortion, giving this midrange a very natural, uncolored tone. A neodymium motor means efficiency is high and space is saved, allowing closer center-to-center spacing with the small mounting flange. The 50-1426SE uses ferrofluid cooling for increased power handling and decreased power compression. Its extended bandwidth makes this suitable for just about any application.

Product Details

BrandTang Band
Model50-1426SE
Part Number264-855
UPC848864070834
Unit of MeasureEach
Weight2.5

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter3.93
Power Handling (RMS)20 Watts
Power Handling (MAX)150 Watts
Impedance6Ω
Frequency Response500 to 10,000Hz
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)500Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.025mH
Mechanical Q (Qms)0.91
Electromagnetic Q (Qes)0.92
Total Q (Qts)0.46
Maximum Linear Excursion (Xmax)0.65mm

Materials of Construction

Cone MaterialSoft Dome
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter4.37"
Baffle Cutout Diameter3.55"
Depth2.38"
# Mounting Holes4
