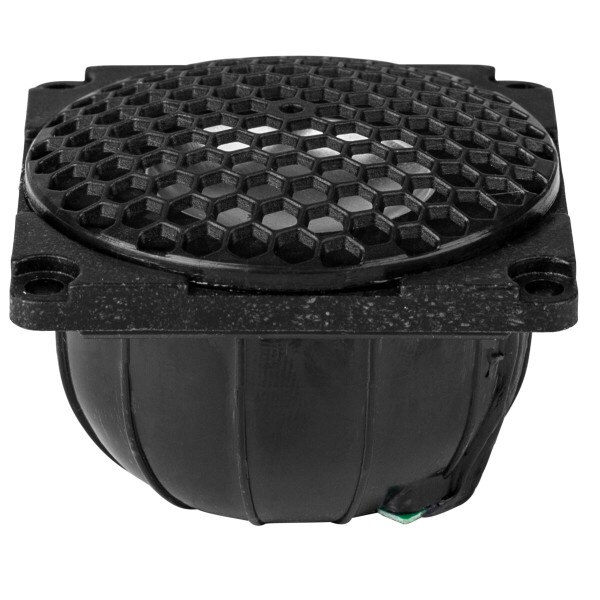

Tang Band 25-2234S 1" Hi-Resolution 40k Aluminum / Magnesium Dome Neodymium Tweeter 4 Ohm

Tang BandPart # 264-801
Model: 25-2234S
With smooth response and low distortion all the way up to 40,000 Hz, Tang Band's 25-2234S tweeter gives designers an affordable option for use in systems that meet the new high-resolution audio standards.

Key Features

  • Delivers flat response from 1,000 Hz up to 40,000 Hz to reproduce even the finest details

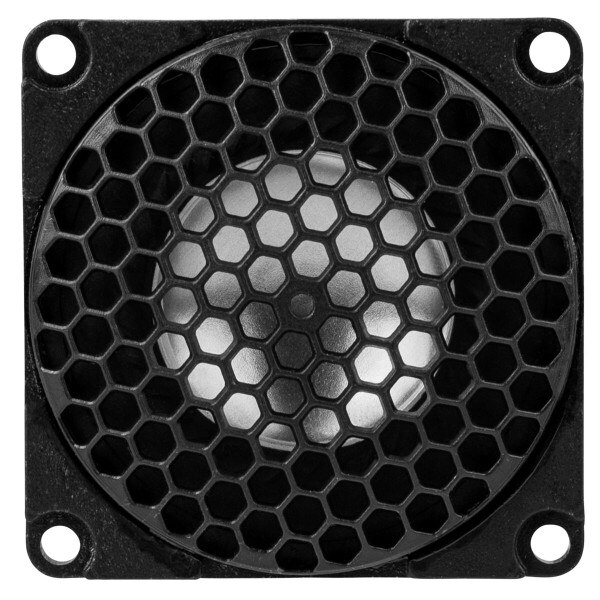

  • Integrated faceplate protects the fragile diaphragm
  • Compact 1.88" square faceplate for use in even the smallest systems
  • Aluminum/Magnesium dome has excellent damping properties
  • This item available through special order only. Minimum order quantity is 50 pieces
Get Notified When Available

We'll send you an email when Tang Band 25-2234S 1" Hi-Resolution 40k Aluminum / Magnesium Dome Neodymium Tweeter 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Tang Band 25-2234S 1" Hi-Resolution 40k Aluminum / Magnesium Dome Neodymium Tweeter 4 Ohm

This item available through special order only. Minimum order quantity is 50 pieces

Tang Band's 25-2234S 1" Aluminum/magnesium dome tweeter has smooth response beyond 20,000 Hz, all the way up to 40,000 Hz, to meet even the newest high-resolution audio standards. The aluminum/magnesium composite diaphragm has extremely low mass with excellent damping which allows for increased high frequency and accurate transient response. The compact 1-7/8" x 1-7/8" faceplate allows this tweeter to be installed into even the smallest designs while the integrated grill protects the fragile dome from damage.

Product Details

BrandTang Band
Model25-2234S
Part Number264-801
UPC848864033044
Unit of MeasureEach
Weight0.18

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter1.69
Tweeter TypeMetal Dome
Power Handling (RMS)8 Watts
Impedance
Frequency Response900 to 40,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)900Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.02mH

Mounting Information

Overall Outside Diameter1.88" x 1.88"
Depth1.29"
