TDA7492 Digital Audio Amplifier Board 2x50W

Parts Express
Part #320-606

TDA7492 Digital Audio Amplifier Board 2x50W

Parts Express
Part #320-606
This Class D amplifier board produces immense power in a condensed space.
Key Features
  • Class D amplifier produces 2 x 50 watt @ 8 ohms
  • Can be wired R+ to L+ for mono mode
  • Phoenix connectors for easy speaker hook up

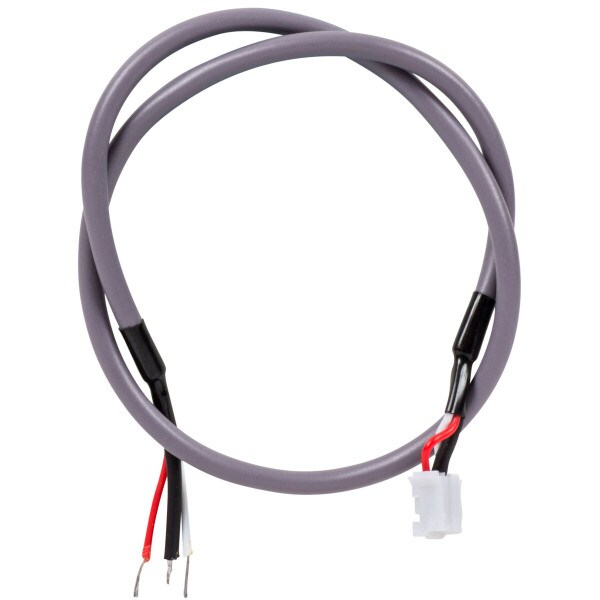

  • 8" stereo wiring harness included
  • Short-circuit and over-temperature protection
  • STMicroelectronics TDA7492 chip is priced low but has big power
  • Four model GAIN parts can auto work on different voltages
Your Price: $17.98
MSRP: $26.99
Save $9.01 (33%)
Bulk Pricing
Quantity:Qty: 1-9 $17.98/ea
Quantity:Qty: 10+$16.18/ea
Order in the next 4 hr 51 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

TDA7492 Digital Audio Amplifier Board 2x50W

Originally designed for high-end televisions, this tiny amp board delivers 50 watts into two channels. Use this Class D amplifier in DIY projects where high power is needed in a limited space.

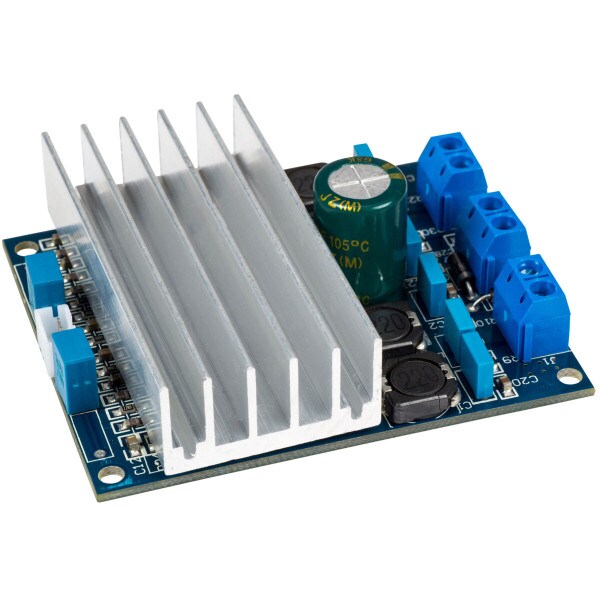

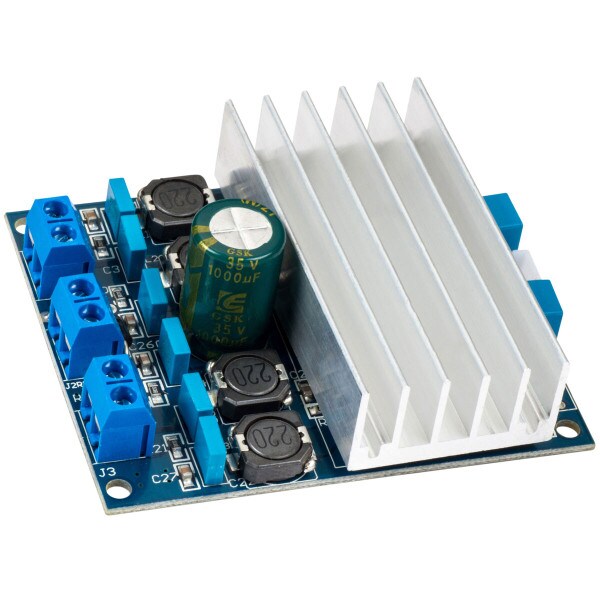

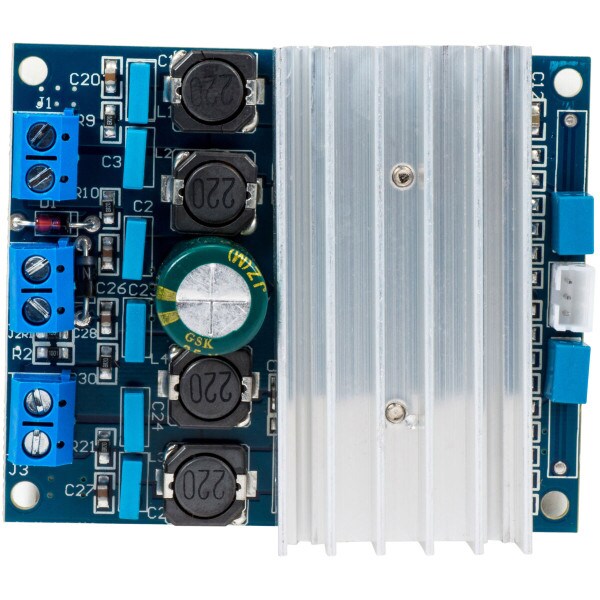

The board includes a massive heat sink, and three dual-terminal phoenix connectors for easy termination of speaker lines. Included in the box is a 8" stereo input lead, making connection a breeze. Depending on the voltage powering the unit, you will need 1A to 4A of current.

Note: When the speaker impedance is 4 ohms, the operating voltage must be less than 18V. When the speaker impedance is 6 ohms, the operating voltage can not exceed 24V. When the speaker impedance is 8 ohms, the working voltage can not exceed 26V.

Specifications: Power handling: 2 x 50 watts @ 8 ohms • Minimum impedance: 4 ohms • THD: 0.1% @ 8 ohms @ 1 watt • Recommended power supply: 10V - 26V • Requires 1A - 4A • Stereo wiring harness included • Dimensions: 2-3/4" L x 2-5/16" W x 7/8" H.

Product Details

BrandParts Express
Part Number320-606
UPC848864016580
Unit of MeasureEach
Weight0.1433

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)26 - 50 Watts
