T-Amp Tripath TA2024 2 x 15W Audio Digital Amplifier Board

Parts Express
Part #320-600

T-Amp Tripath TA2024 2 x 15W Audio Digital Amplifier Board

Parts Express
Part #320-600
The T-Amp revolution continues here! This compact stereo amplifier based on the Tripath TA2024 chip outputs 2 x 15 watts and is perfect for building into audio projects or use as a standalone amp.
Key Features
  • Pre-assembled, pre-tested for easy project integration
  • Class T fidelity and energy efficiency
  • 2 x 15W continuous power, adequate for most speakers
  • Requires only 12 VDC 2A

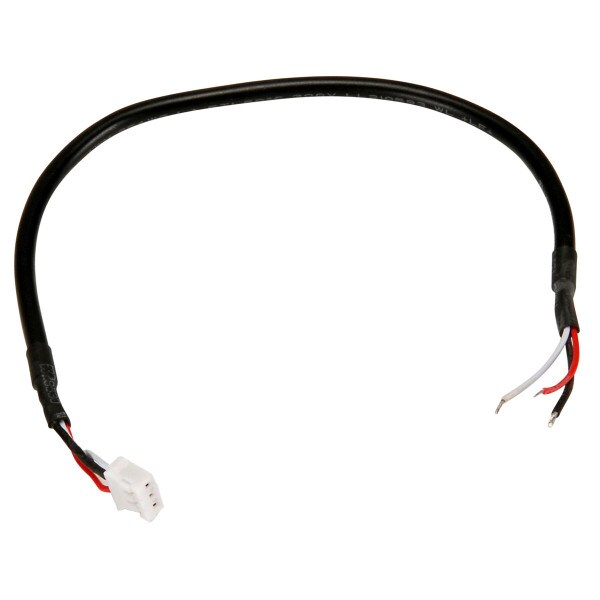

  • Includes JST type PH 2.0 cable for quick line input connection
Your Price: $14.98
MSRP: $21.99
Save $7.01 (32%)
Bulk Pricing
Quantity:Qty: 1-9 $14.98/ea
Quantity:Qty: 10+$13.48/ea

Back-Ordered

Advertised price subject to change due to tariff uncertainty
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

T-Amp Tripath TA2024 2 x 15W Audio Digital Amplifier Board

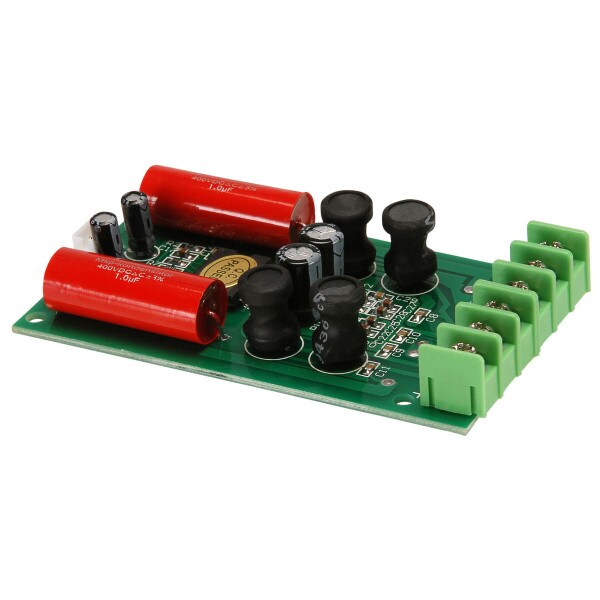

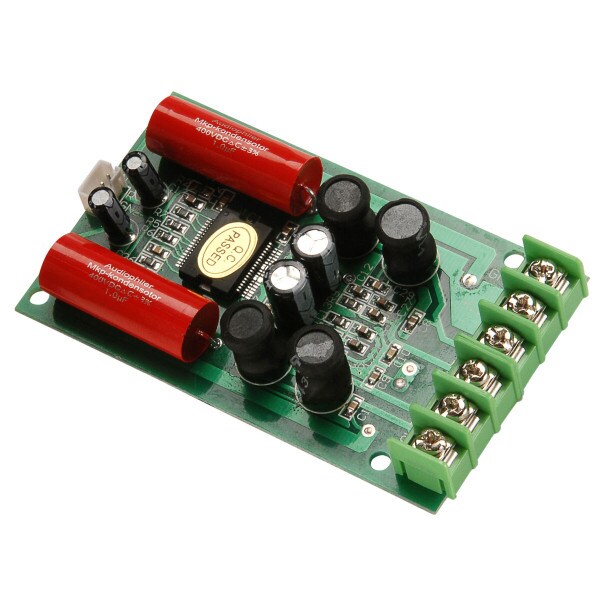

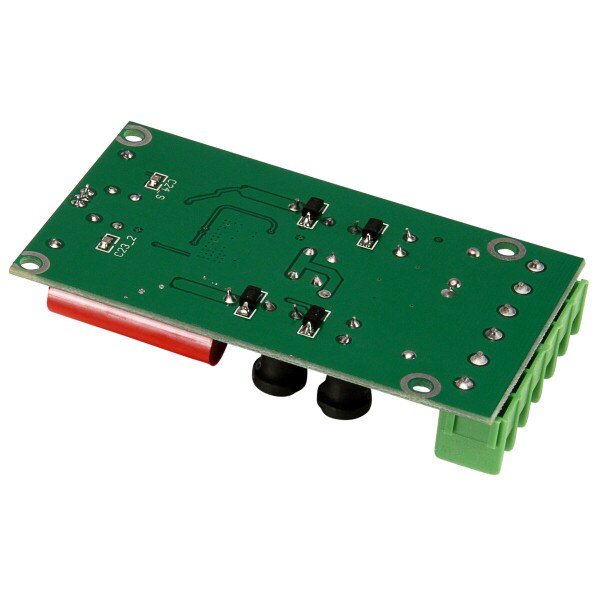

This board is designed around the Tripath TA-2024 integrated circuit. The TA2024 is a 15W/channel continuous average two-channel Class-T Digital Audio Power Amplifier IC using Tripath's proprietary Digital Power Processing™ technology. Class-T amplifiers offer both the audio fidelity of a Class-AB amplifier and the power efficiency of a Class-D amplifier.

Perfect for projects, this board features over-current and over-temperature protection circuits. It can be built into powered speakers or used as a standalone amplifier. The board's small size is even ideal for inclusion in OEM products or store displays.

Specifications: • Output power: 9W x 2 @ 4 ohms (0.04% THD+N), 11W x 2 @ 4 ohms (0.1% THD+N), 6W x 2 @ 8 ohms (0.1% THD+N), 15W x 2 @ 4 ohms (10% THD+N), 10W x 2 @ 8 ohm (THD+N) • IHF-IM: 0.18% @ 1W, 4 ohms • Efficiency: 88% @ 10W, 8 ohms • Dynamic range: 102 dB • Recommended power: 12 VDC, 2A • Dimensions: Board: 3.54" x 2.09" (90 x 53 mm); Mounting holes (center to center): 2.88" x 1.81".

Product Details

BrandParts Express
Part Number320-600
UPC848864051345
Unit of MeasureEach
Weight0.1

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
