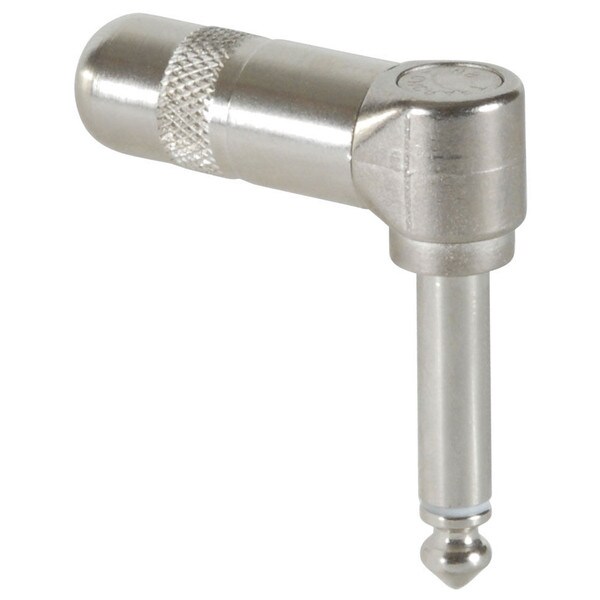

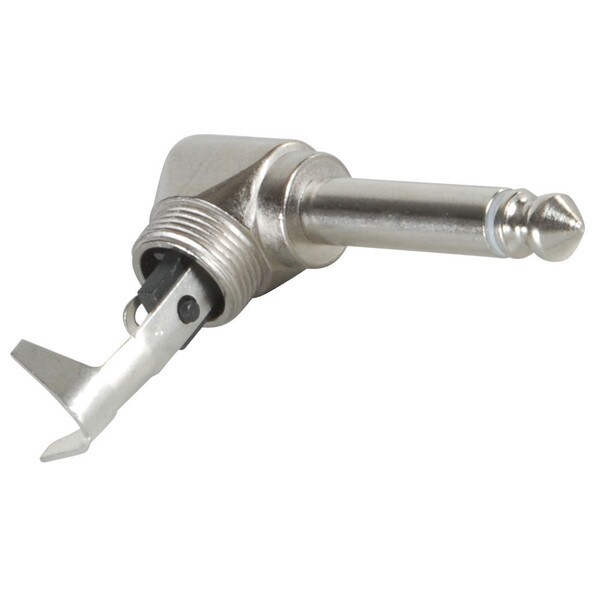

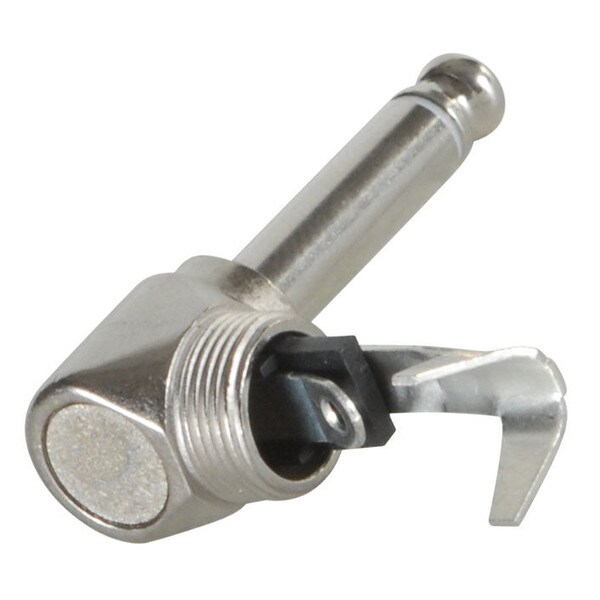

Switchcraft 226 1/4" Mono 90 degree Plug Nickel

SwitchcraftPart # 093-128
Model: 226PKG
Switchcraft's 1/4" right angle mono plugs have one-piece tip rods for added strength and durability. Features include solder terminals and a shielded nickel handle.

Key Features

  • 3-piece assembly
  • All metal exterior construction
  • Rugged cable clamp isolates pulling and twisting strains
  • Right-angle handle minimizes space required behind equipment.
  • Large terminals accept up to 16 AWG wiring (cables up to 0.25" diameter)
Your Price: $5.98
MSRP: $12.09
Save $6.11 (51%)
Bulk Pricing
Quantity:Qty: 1-99 $5.98/ea
Quantity:Qty: 100-249 $5.68/ea
Quantity:Qty: 250+ $5.50/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Switchcraft 226 1/4" Mono 90 degree Plug Nickel is back in stock or available for preorder.

Estimated back in stock 7/17/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Switchcraft 226 1/4" Mono 90 degree Plug Nickel

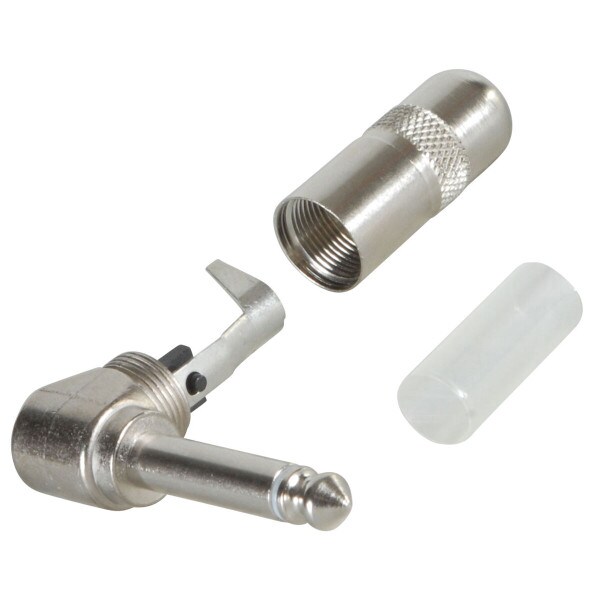

Switchcraft's 1/4" right-angle mono plugs are designed for OEMs and users of commercial phone plugs. The plugs offer large terminals for easy wiring, and only three pieces to assemble - handle, insulator, and finger/housing assembly - and feature rugged reliability for stable, long-term, trouble-free operation. At only a 1/2" wide, these plugs are ideal for crowded, multi-channel panels. The tip, rod, and handle are all nickel-plated copper alloy. Right-angle handle minimizes space required behind equipment. Rugged cable clamp isolates pulling and twisting strains. Knurled handles allows for a positive grip during connect/disconnect. Features include solder terminals and a shielded nickel handle. Mfg. #226. Specifications: • Housing/sleeve: Nickel-plated • Tip terminal: Tin-plated copper alloy • Sleeve (clamp) terminal: Tin-plated steel • Insulation: Thermoplastic • Dielectric withstanding voltage: 500 VAC • Insulation resistance: 50,000 Mohms minimum (initial) • Operating temperature: -20°C to +65°C.

Product Details

BrandSwitchcraft
Model226PKG
Part Number093-128
UPC844632071713
Unit of MeasureEach
Weight0.1

Product Specifications

ConductorsMono TS
GenderMale / Plug
Mounting TypeCable Mount
