CLEARANCE Sure Electronics AA-BK31394 1x1,000W Class D Audio Amplifier Brick DBKL1 - T-AMP

Sure ElectronicsPart # 320-3328
Model: AA-BK31394
20 Questions, 21 Answers or

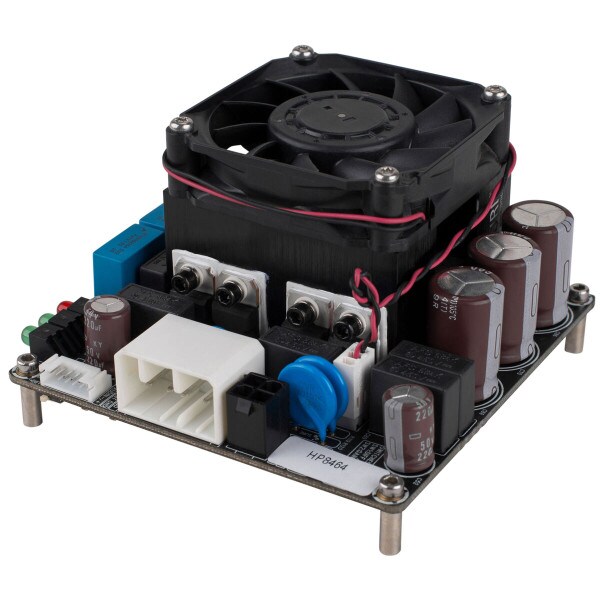

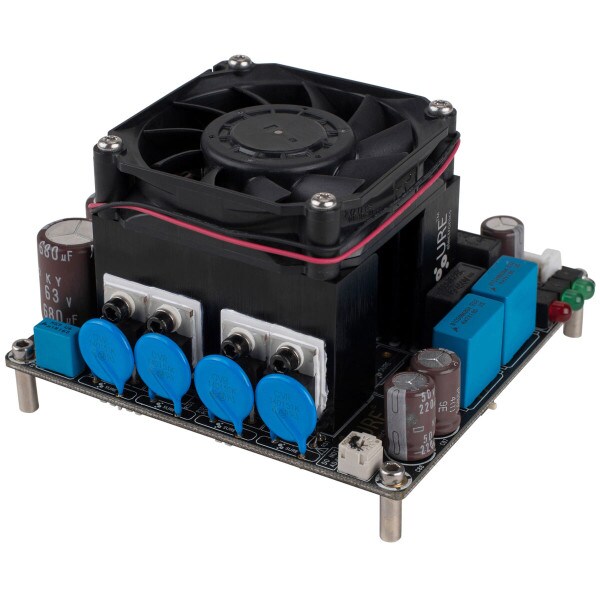

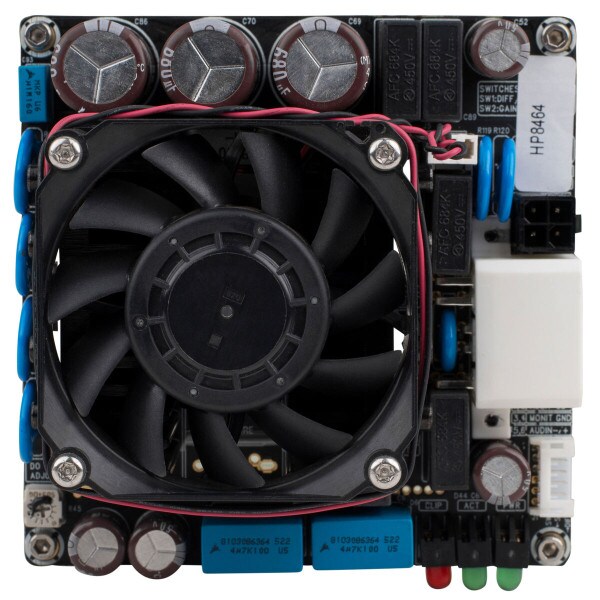

Enjoy a warm, high power sound from this Class-T (a branch from Tripath Class-D) series 1,000 watt mono brick-style audio amp board. Enjoy a warm, high power sound from this Class-T (a branch from Tripath Class-D) series 800 watt mono brick-style audio amp board. The Wondom AA-BK31394 uses very low RDSon MOSFETs and extremely fast recovery diodes to help create a high quality sound.

Key Features

  • Audio signal detection saves energy
  • High level and low level gain control for flexibility
  • 1,000 watts from an amp board only 3.9" W x 3.9" L x 1.97" H

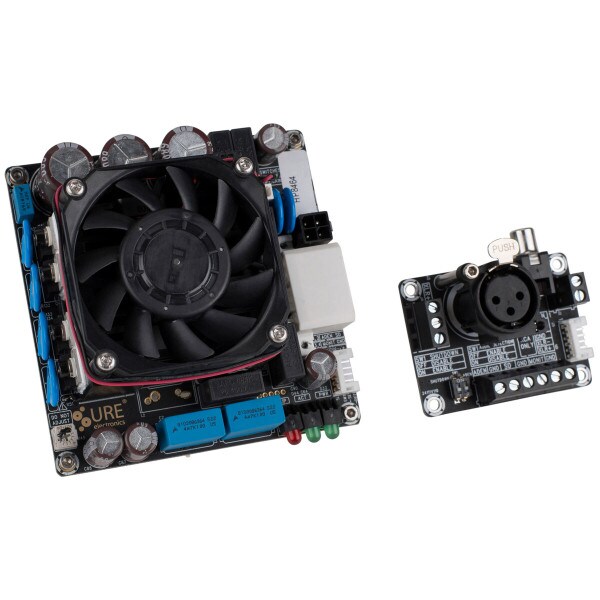

  • Includes input interface and control breakout board MB-BB41112 for quick hook-up to many devices
  • Four output speaker wires to power up to four drivers in an active speaker system
  • 2 ohm stable for multiple speaker designs
  • Complies with FCC and CE standards
Get Notified When Available

We'll send you an email when Sure Electronics AA-BK31394 1x1,000W Class D Audio Amplifier Brick DBKL1 - T-AMP is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Sure Electronics AA-BK31394 1x1,000W Class D Audio Amplifier Brick DBKL1 - T-AMP

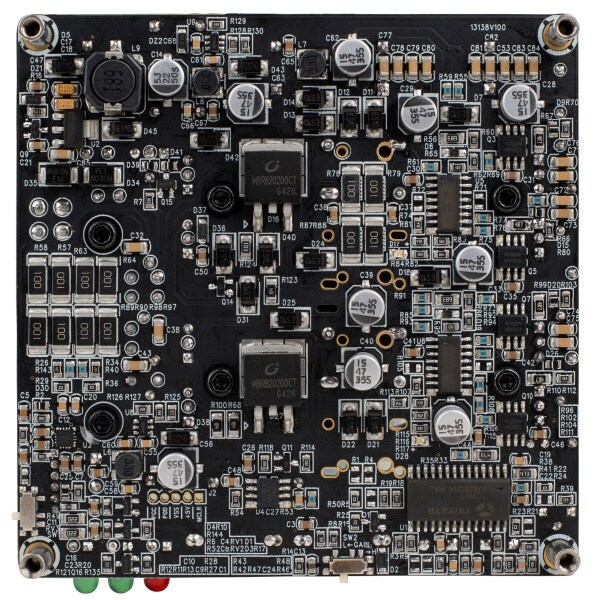

The Wondom AA-BK31394 is the perfect amp board to power your next high power active speaker project. It uses the STA516BE chip to deliver a warm, but powerful sound that you can only get from a Class-T IC. Combine an active crossover with a single subwoofer or design a 4-way powered speaker with individual passive hi and low filters to create a powerful high quality sound. This amp board needs very little space, so if you want to design a high power small active monitor the AA-BK31394 board is your answer. Four Screw in standoffs included for easy mounting

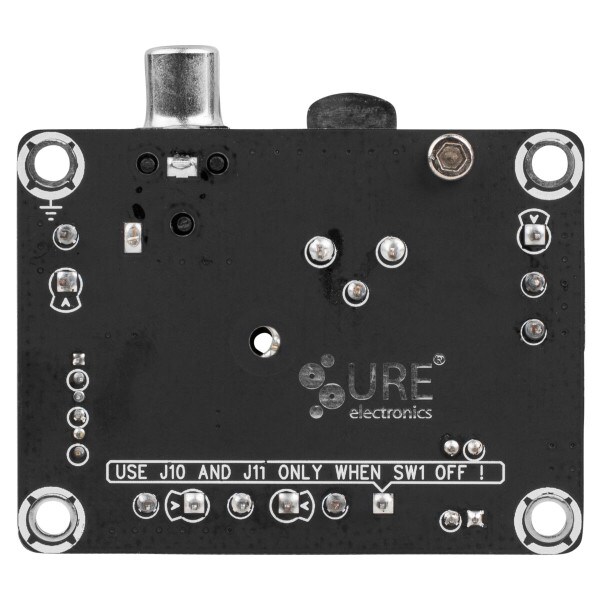

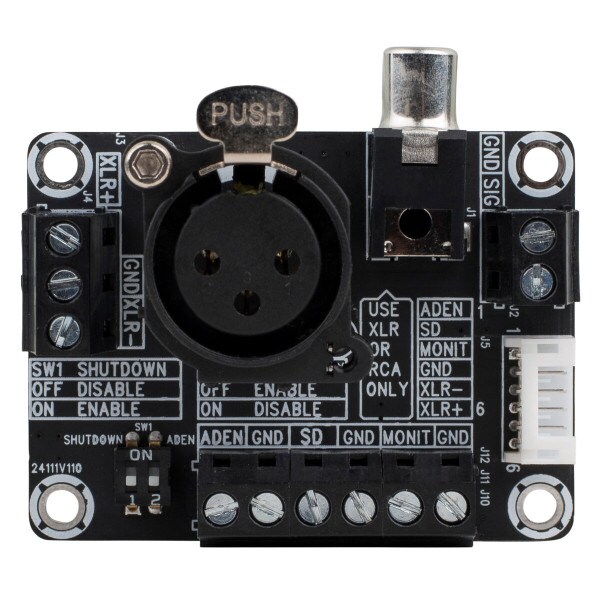

This Wondom amp board includes the MB-BB41112 input interface and control breakout board for quick integration with passive mixing boards. The inputs include XLR and RCA jacks or bare wire, and it has a monitor output for verifying the inputs. The control functions include signal detection and power switch option.

Specifications:
• Input power: 36 to 60 VDC
• Output power (w/56 VDC power supply): 1,000W (2 ohms, THD 10%), 800W (2 ohms, THD 1%)
• Maximum current draw: 19A
• Frequency response: 20 - 20,000 Hz
• Minimum impedance: 2 ohms
• Size: 3.9" x 3.9" x 1.97"

Product Details

BrandSure Electronics
ModelAA-BK31394
Part Number320-3328
UPC6959687311944
Unit of MeasureEach
Weight1.35

Product Specifications

Board Type1 Channel Mono Amp
Power (RMS/Channel 8 ohms)251 - 500 Watts
