Sure Electronics AA-AK32151 2x15W Class-D Stereo Power Amp Kit TPA3122

Sure Electronics
Part #320-322

Sure Electronics AA-AK32151 2x15W Class-D Stereo Power Amp Kit TPA3122

Sure Electronics
Part #320-322
Model: AA-AK32151
The easy-to-assemble stereo audio amplifier kit's Class-D design provides pristine, accurate audio reproduction combined with an authoritative bass punch, while requiring lower input current than conventional Class-AB amplifiers.
Key Features
  • Easily assembled dual channel Class-D amplifier
  • Outstanding fidelity and efficiency
  • Heat sink not required for most applications
  • Switch-adjustable input sensitivity
  • Just add a power supply!
Your Price: $21.98
MSRP: $44.99
Save $23.01 (51%)
Bulk Pricing
Quantity:Qty: 1-3 $21.98/ea
Quantity:Qty: 4-49 $21.25/ea
Quantity:Qty: 50+$20.83/ea
Order in the next 5 hr 18 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Sure Electronics AA-AK32151 2x15W Class-D Stereo Power Amp Kit TPA3122

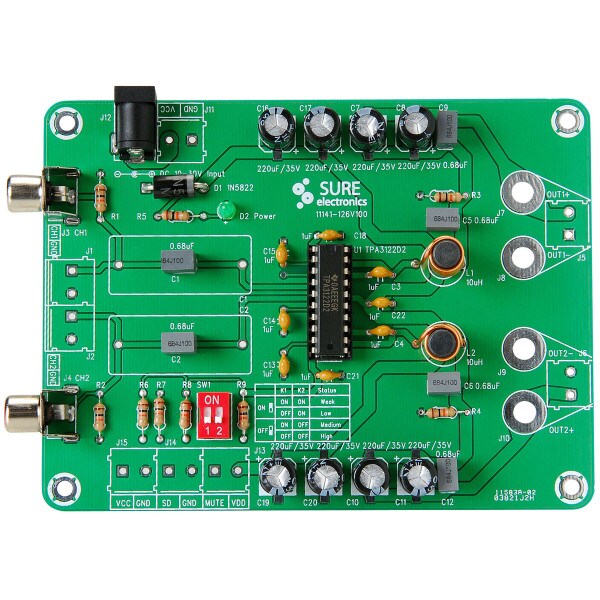

This Class-D stereo audio amplifier kit incorporates the TPA3122D2 power amplifier IC. Class-D designs provide pristine, accurate audio reproduction combined with an authoritative bass punch, while requiring lower input current than conventional Class-AB amplifiers. Completion of this easy-to-assemble kit will result in a fully functional, dual-channel audio amplifier.

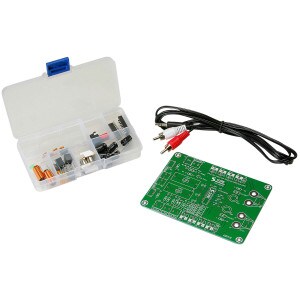

The TPA3122 amp IC is capable of producing up to 15 watts per channel (8 ohms @ 28 VDC input power), and the device's efficiency eliminates the need for an external heat sink when playing music. The complete amplifier can be powered by a wide range of 10 VDC to 30 VDC supplies. If you want to use an AC adapter with 10 to 30 VDC output make sure the DC plug is a 2.1 x 5.5 mm wired tip positive. Included switch can be used to set the gain as 20 dB, 26 dB, 32 dB, or 36 dB. This kit contains through-hole components exclusively, which solder easily into the pre-drilled printed circuit board. Power supply not included. Dimensions: 121.90 L × 91.40 W × 1.60 H (±0.20) mm.

Note: Please match the components listed in the Users Manual (found in the Manual/Resources section on the right hand side) to the Item Number on the printed circuit board.

Product Details

BrandSure Electronics
ModelAA-AK32151
Part Number320-322
UPC844632091575
Unit of MeasureEach
Weight0.25

Product Specifications

Project Kit TypeAmplifiers & Audio
