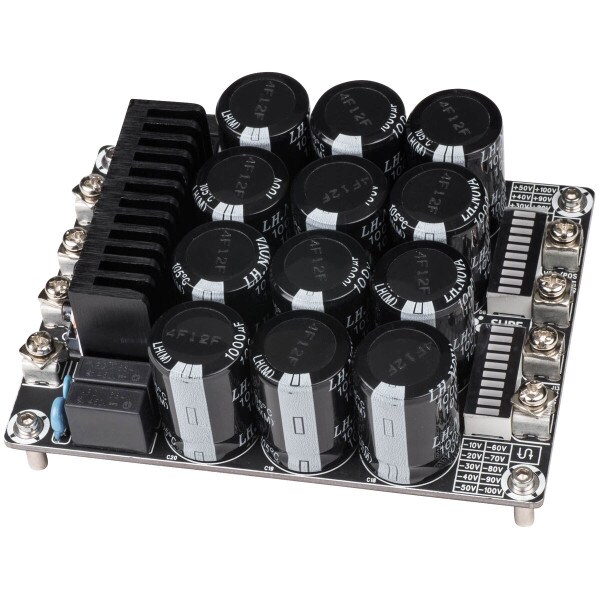

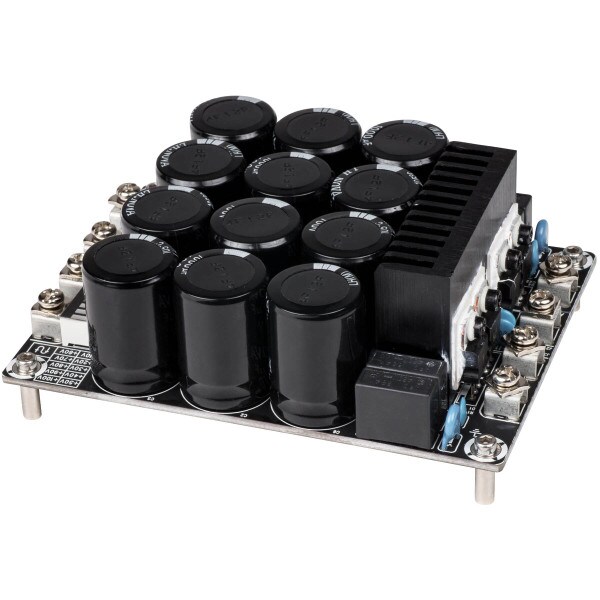

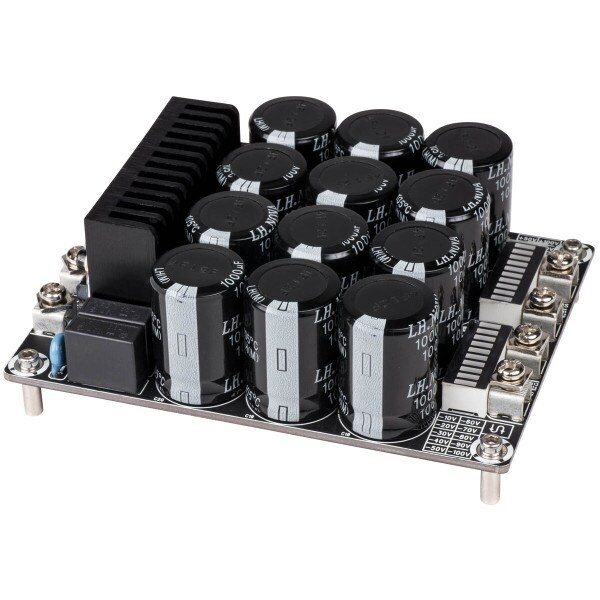

Sure Electronics AA-AB41121 75V 30A 12000uF Rectifier Board for Amplifiers

Sure ElectronicsPart # 320-3371
Model: AA-AB41121
This rectifier board converts AC input voltage into separate positive DC and negative DC voltage outputs, perfect for supplying power to amplifier boards requiring large symmetrical power supplies!

Key Features

  • Converts up to 75 VAC to symmetrical positive and negative DC voltage
  • Robust terminal connections, 1/2" standoffs, and multi-layer PCB
  • Supports power converting for up to 1,500 watt devices
  • Twelve 1,000 uF capacitors for power buffering
Your Price: $55.98
MSRP: $109.99
Save $54.01 (49%)
Bulk Pricing
Quantity:Qty: 1-3 $55.98/ea
Quantity:Qty: 4-49 $52.81/ea
Quantity:Qty: 50+ $48.58/ea
Out of Stock
Get Notified When Available

We'll send you an email when Sure Electronics AA-AB41121 75V 30A 12000uF Rectifier Board for Amplifiers is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Sure Electronics AA-AB41121 75V 30A 12000uF Rectifier Board for Amplifiers

Add stable power to your amplifier boards and amp projects using this rectifier board that's built with 12,000 microfarads of power-buffering, ripple-reducing capacitance. Four high performance, ultra-fast ST Electronics' STTH1602 diodes are combined with ceramic capacitors for minimum harmonics.

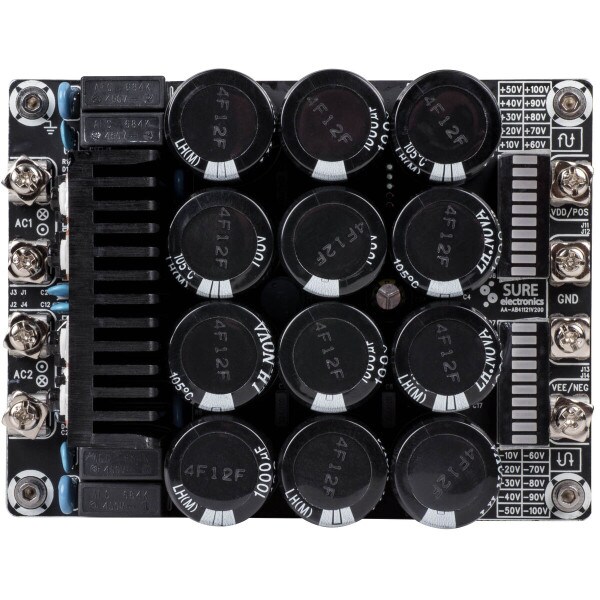

AC power is applied to the input (positive on the AC1 X terminal, negative on the AC2 X terminal, with center taps connected to the inside AC1 and AC2 terminals if used), with positive DC output on the VDD/POS terminal and symmetrical negative DC output on the VEE/NEG terminal. An LED indicator shows the voltage output for each channel.

Note: To calculate voltage output, multiply the secondaries voltage by 1.414 (the square root of 2). For instance, if you were to connect a 110 VAC primary input to two 75 VAC secondary output transformer to this rectifier board, the output would +106 VDC and -106 VDC.

Specifications:
• Repetitive peak reverse voltage (VRRM): 200V
• Supply voltage: 0 to 75 VAC
• RMS forward current: 30A
• Forward voltage drop: 1.1V
• For use with devices up to 2,250 watts
• Dimensions: 4.75" L x 3.5" W x 1.875" H (120 x 89 x 47.6 mm)

Product Details

BrandSure Electronics
ModelAA-AB41121
Part Number320-3371
UPC848864012247
Unit of MeasureEach
Weight0.95

Product Specifications

Board TypeBattery & Power
