Sure Electronics AA-AB32231 2x8W 1x16W at 4 Ohm TPA3110 Class D Audio Amplifier Board

Sure Electronics
Part #320-329

Sure Electronics AA-AB32231 2x8W 1x16W at 4 Ohm TPA3110 Class D Audio Amplifier Board

Sure Electronics
Part #320-329
Model: AA-AB32231

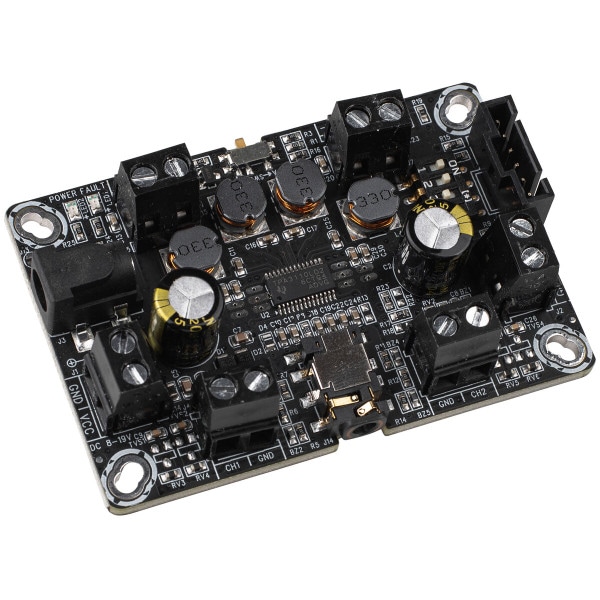

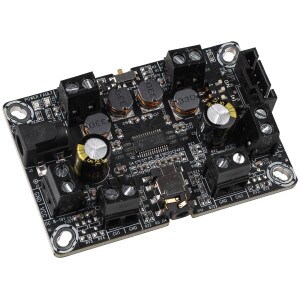

This 2 x 8W (1 x 16W) Class D dual channel amplifier board employs a Tripath-style TPA3110 chip. Each channel is rated at 8 watts, delivered with state-of-the-art sound quality.
Key Features
  • Pre-assembled, pre-tested
  • Superb sound quality
  • Perfect Class D architecture
  • Fully-bridged stereo output

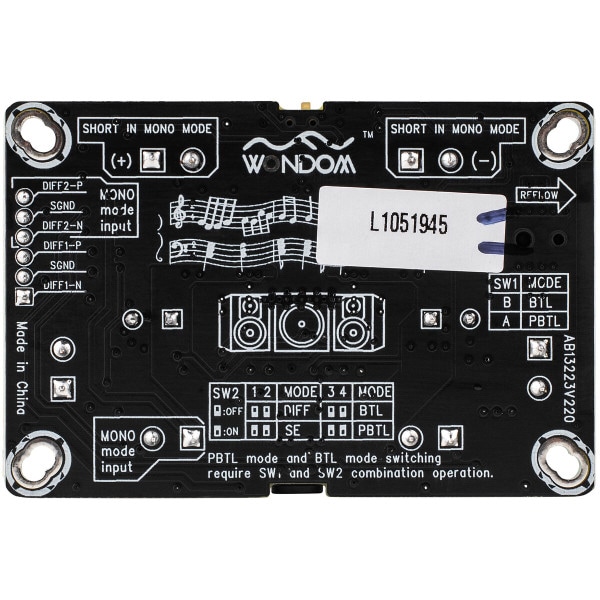

  • Switchable between single and dual channels for versatility
  • Up to 92% efficiency
  • Does not require a heat sink for most applications
Your Price: $16.98
MSRP: $26.99
Save $10.01 (37%)
Bulk Pricing
Quantity:Qty: 1-3 $16.98/ea
Quantity:Qty: 4+$15.49/ea
Order in the next 5 hr 9 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Sure Electronics AA-AB32231 2x8W 1x16W at 4 Ohm TPA3110 Class D Audio Amplifier Board

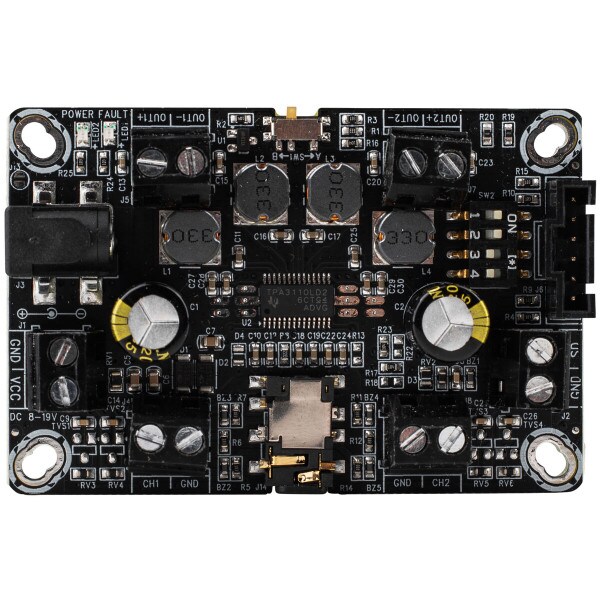

Each channel of this Class D dual channel amplifier board delivers 8W (16W single channel), state-of-the-art sound quality. The TPA3110's efficiency eliminates the need for an external heat sink when playing music under average listening conditions. Integration of high-quality SMD and MKP plug-in capacitors ensures hi-fi amplification output. Requires a DC power supply ranging from 8 to 19V (available separately) and performs admirably with 4 ohm and 8 ohm speakers. Recommended power supply 3A Switching Power Supply.

Specifications: • Output power: 4W x 2 @ 8 ohms (<0.1% THD+N), 8W x 2 @ 8 ohms (<10% THD+N), 8W x 1 @ 4 ohms (<0.1% THD+N), 16W x 1 @ 4 ohms (<10.0% THD+N) • Frequency response: 20 Hz to 20 kHz (±3 dB) • Signal to noise ratio: 100 dB (A-weighted) • Recommended power supply: 12 VDC @2 A • 2.1 x 5.5 mm tip (+) DC input jack • Dimensions: 3.6" L x 2.7" W x 0.65" H.

Product Details

BrandSure Electronics
ModelAA-AB32231
Part Number320-329
UPC844632098871
Unit of MeasureEach
Weight0.15

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
