Overview

Easy to Build Portable Bluetooth Boombox

One of the best things about this kit is that it requires no soldering. That's right, you won't need to fuss with any intricate soldering techniques. Instead, all the connections are designed to be direct plug-ins. This means that you can easily connect the various components together with a few simple crimped terminals.

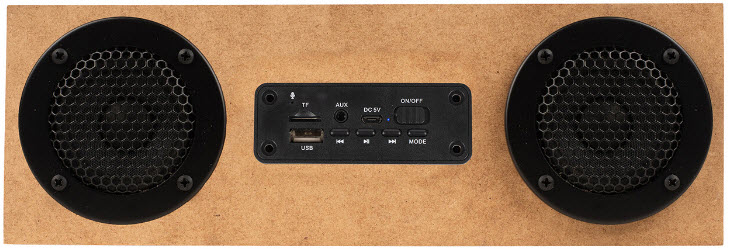

Not only does this kit save you from the headache of soldering, but it also ensures a hassle-free assembly process. The clear wiring instructions and hole/enclosure dimensions provided will guide you step-by-step through the entire process, making it an enjoyable and stress-free experience. The simple wooden enclosure pictured is an approximate size to get the best sound from the 2-1/2" speakers. Use your creative woodworking skills and make a unique speaker/boombox come to life playing your favorite tunes.

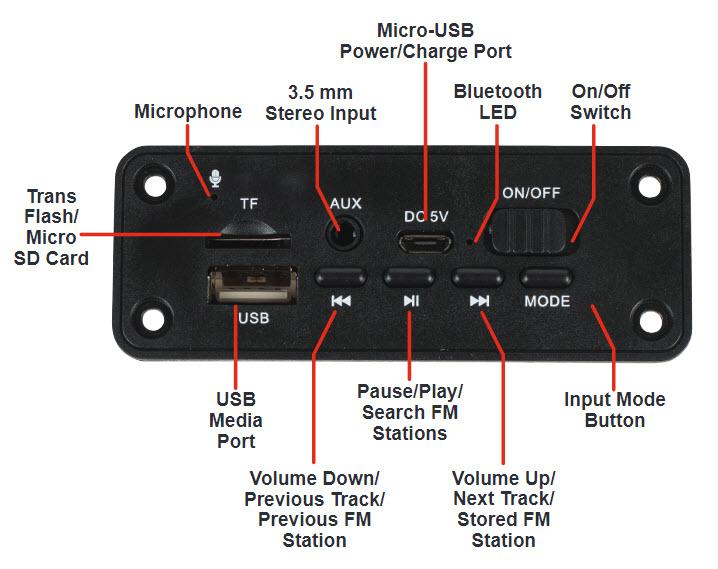

Imagine the convenience of being able to listen to FM radio, play music saved on a flash drive, input music from another device, or stream your favorite play list wirelessly through Bluetooth, all thanks to this versatile kit. No matter what your preferred audio source is, you can be confident that your creation will be enjoyed by everyone around you.

But that's not all - we've made sure that recharging the Lithium Polymer battery is a breeze. Simply plug the included USB cable into any USB-A powered port, and in a few hours you're ready to go. And here's the best part – you can still enjoy your music while it's charging! Which ever design you choose make sure you make room for this battery for true portable use.

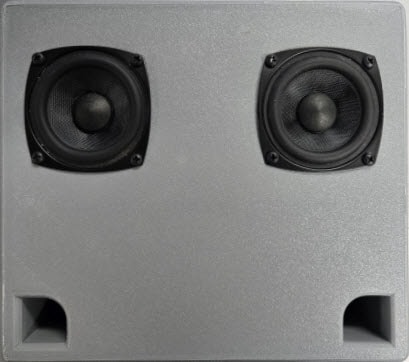

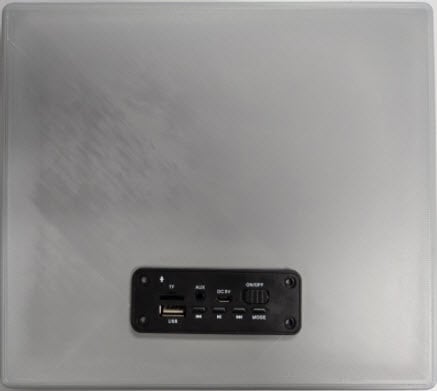

Let's talk 3D printer. We've attached 3D printer zip files to enable you to create a vertical style Bluetooth speaker. The amplifier's faceplate is on the backside which enables charging in the rear so no cables are sticking out of the front. Front bass ports shoot the low end right at you, and are built into the 3D design. This is a simple box style design which is the perfect size for over all sound quality, but feel free to create your own unique shapes with your 3D printer.




So, whether you are a seasoned woodworker, into 3D printing or just starting out, this kit offers a great opportunity to combine your love for woodworking with the ever-growing world of Bluetooth audio. With its ease of assembly and no-soldering-required design, you can confidently bring your vision to life and create a unique and functional piece that you can proudly display or gift to someone special.

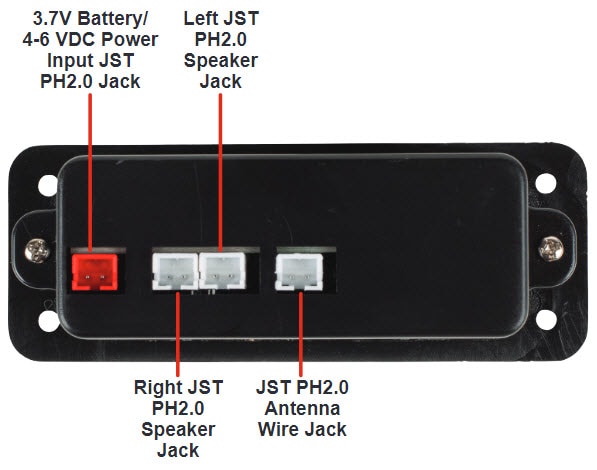

Note: Use silicon sealer around the faceplate's rear sockets (after you plug everything in) to prevent air leaks. Use the power wire for the antenna wire since the battery comes with the a power plug.

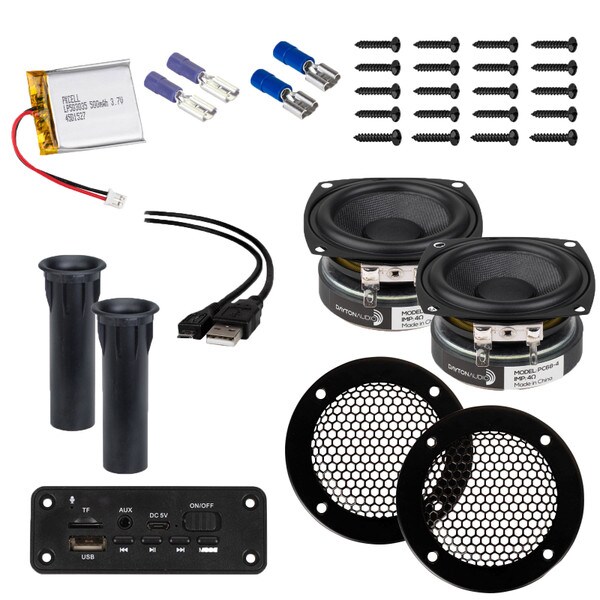

Included in this package:

Additional items (sold separately) that will help with the overall sound output and portability:

  • 260-566 – Sonic Barrier Acousta-Blue Denim Fiber Sound Damping Material
  • 260-317 – Acousta-Stuf Polyfill Sound Damping Material
  • 320-435 – Adhesive Rubber Feet
  • 260-702 – Strap Type Cabinet Handle 10"
  • 125-391 – USB-C PD and USB-A QC3.0 Low Profile Car Lighter Adapter
