BUYOUT Sharp 1208PB158 Speaker 8 Ohm

Factory Buyouts
Part #299-4142

BUYOUT Sharp 1208PB158 Speaker 8 Ohm

Factory Buyouts
Part #299-4142
Model: EAS14PL327A6

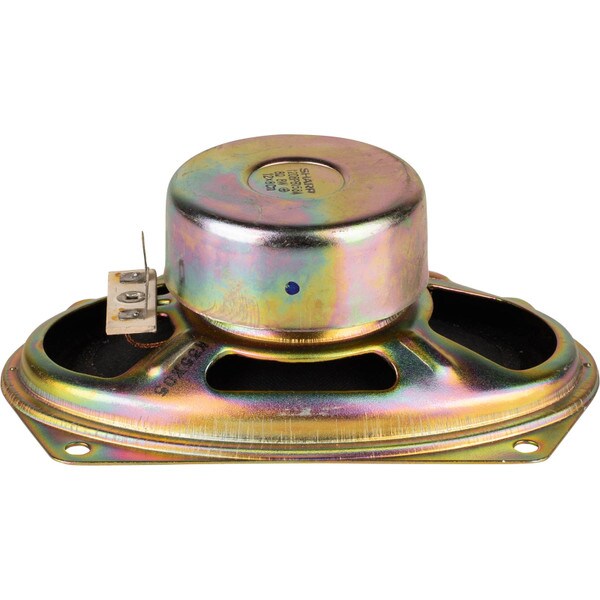

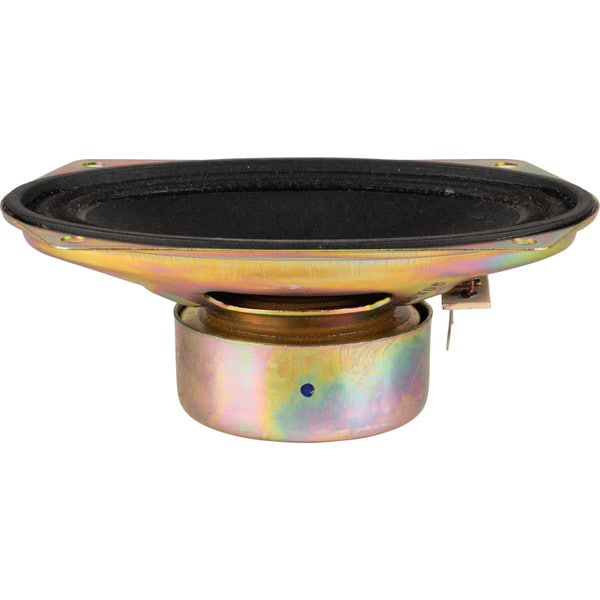

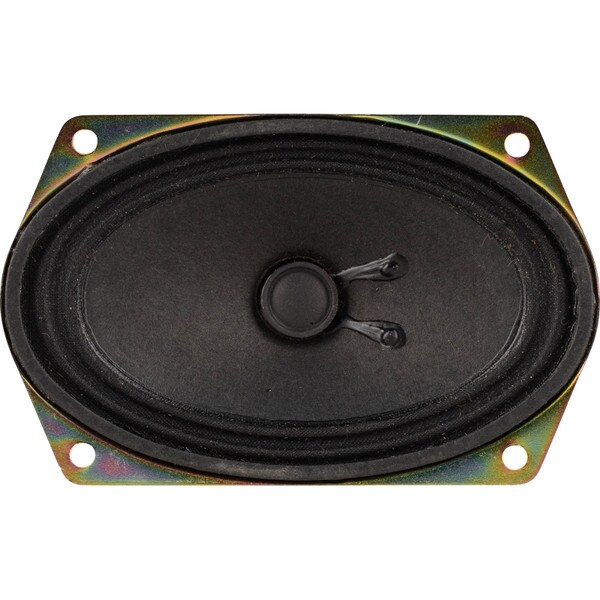

The Sharp 1208PB158 3" x 5" Speaker uses a paper cone and cloth surround to produce natural full-range response from 150 to 15,000 Hz. Thanks to the powerful shielded motor this driver has excellent efficiency for its size.
Key Features
  • Shielded magnet assembly is suitable for use near sensitive electronics
  • High efficiency to deliver high output with little input power
  • Flat mounting flange for simple front or rear mount installation
  • Perfect for use in slim designs such as sound bars and portable speakers
BUYOUT $2.88
Bulk Pricing
Quantity:Qty: 1-29 $2.88/ea
Quantity:Qty: 30-59 $2.56/ea
Quantity:Qty: 60+$2.45/ea
Order in the next 0 hr 51 min to ship today. Details

1179In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Sharp 1208PB158 Speaker 8 Ohm

The Sharp 1208PB158 3" x 5" Speaker has a 5" x 3" mounting flange allowing it to easily fit in slim speaker designs. This driver uses a fully shielded motor for use near devices that are sensitive to stray magnetic fields. With over 86 dB efficiency, this driver can produce an impressive amount of output for its size making it perfect for designs such as speaker bars, TV speakers, and portable Bluetooth enabled projects.

Product Details

BrandFactory Buyouts
ModelEAS14PL327A6
Part Number299-4142
UPC848864072203
Unit of MeasureEach
Weight0.76

Product Specifications

Power Handling (RMS)4 Watts
Power Handling (MAX)8 Watts
Impedance8Ω
Frequency Response150-15,000Hz
Sensitivity86.24dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)143.7Hz
DC Resistance (Re)6.499Ω
Voice Coil Inductance (Le)0.1599mH
Mechanical Q (Qms)4.98
Electromagnetic Q (Qes)2.552
Total Q (Qts)1.688
Compliance Equivalent Volume (Vas)0.0826ft³
Diaphragm Mass Inc. Airload (Mms)2.053g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)52.81cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Depth1.75"
# Mounting Holes4
