BUYOUT Sharp 1206PB22WA 2-5/16" x 5-1/8" Full-Range Replacement Speaker 16 Ohm

Factory Buyouts
Part #299-4135

BUYOUT Sharp 1206PB22WA 2-5/16" x 5-1/8" Full-Range Replacement Speaker 16 Ohm

Factory Buyouts
Part #299-4135
Model: 1206PB22WA
The Sharp 1206PB22WA 2-5/16" x 5-1/8" 16 ohm full-range replacement driver uses a paper cone and voice coil former with cloth surround ensure that this driver will produce smooth frequency response with minimal resonances.
Key Features
  • Paper cone and voice coil former with foam surround for minimal resonance
  • Ideal for small line array designs thanks to its low cost
  • Shielded magnet for use near sensitive electronic devices
BUYOUT $2.88
MSRP: $6.99
Save $4.11 (59%)
Bulk Pricing
Quantity:Qty: 1-29 $2.88/ea
Quantity:Qty: 30-59 $2.56/ea
Quantity:Qty: 60+$2.45/ea
Order in the next 3 hr 49 min to ship today. Details

2869In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Sharp 1206PB22WA 2-5/16" x 5-1/8" Full-Range Replacement Speaker 16 Ohm

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 2-1/4" x 5"speaker, which is part of a massive TV speaker factory buyout.

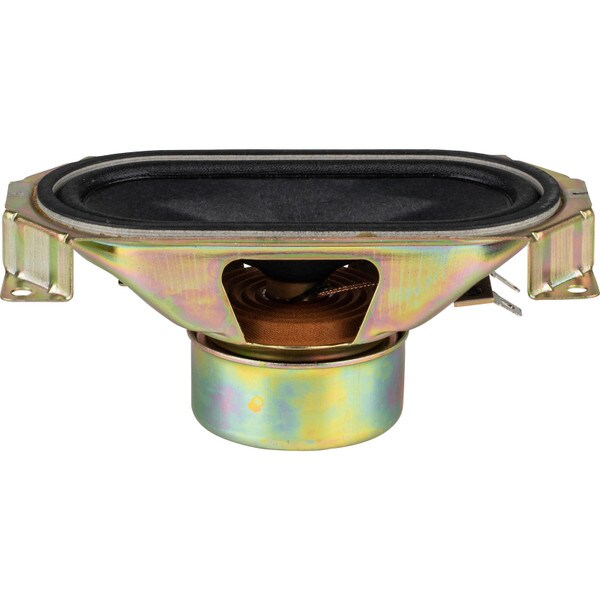

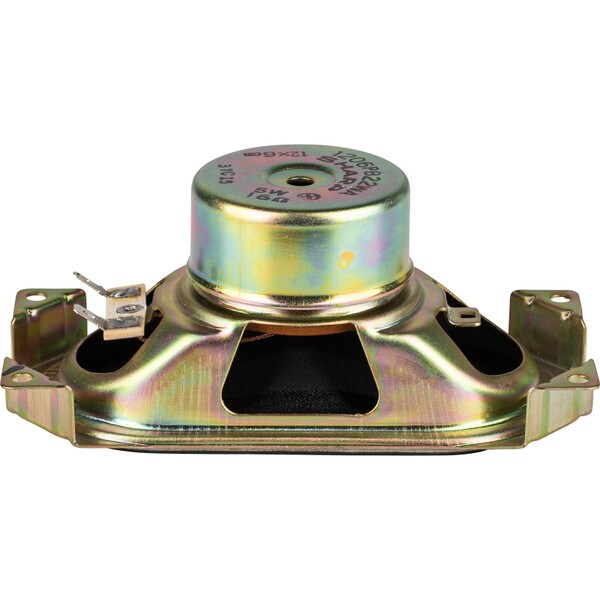

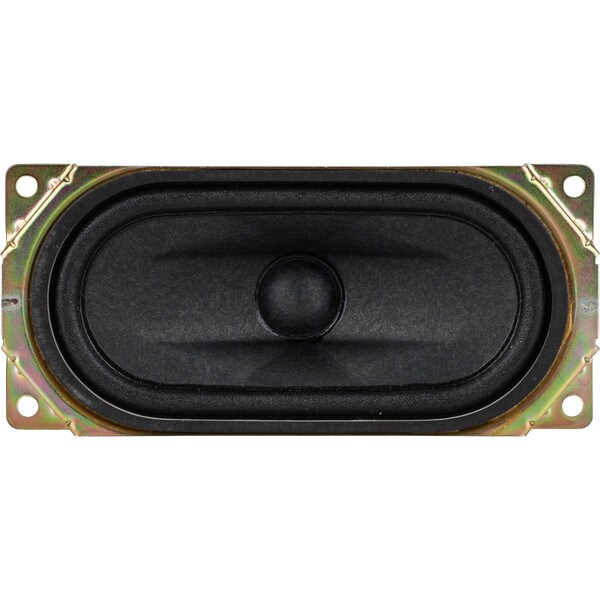

This speaker features a rectangular design with a rigid stamped steel basket. On this driver, the mounting tabs sit 1/2" behind the mounting flange, but thanks to the front mounted foam gasket this driver could easily be installed on the back of your baffle. The magnet is fully shielded allowing you to use this driver near any electronics that are sensitive to stray magnet fields.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
Model1206PB22WA
Part Number299-4135
UPC848864072142
Unit of MeasureEach
Weight0.5

Product Specifications

Power Handling (RMS)2.5 Watts
Power Handling (MAX)5 Watts
Impedance16Ω
Frequency Response250-10,000Hz
Sensitivity83.24dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)248.2Hz
DC Resistance (Re)14.77Ω
Mechanical Q (Qms)6.481
Electromagnetic Q (Qes)8.6
Total Q (Qts)3.696
Compliance Equivalent Volume (Vas)0.0271ft³
Diaphragm Mass Inc. Airload (Mms)1.469g
Maximum Linear Excursion (Xmax)0.5mm

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Depth2.125"
# Mounting Holes4
