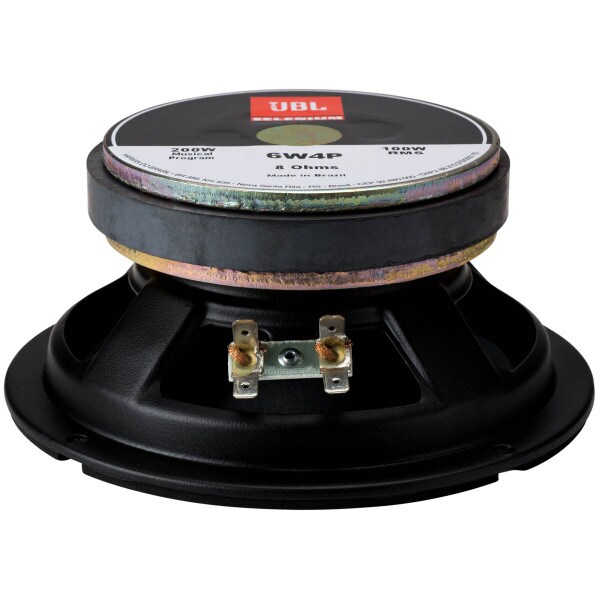

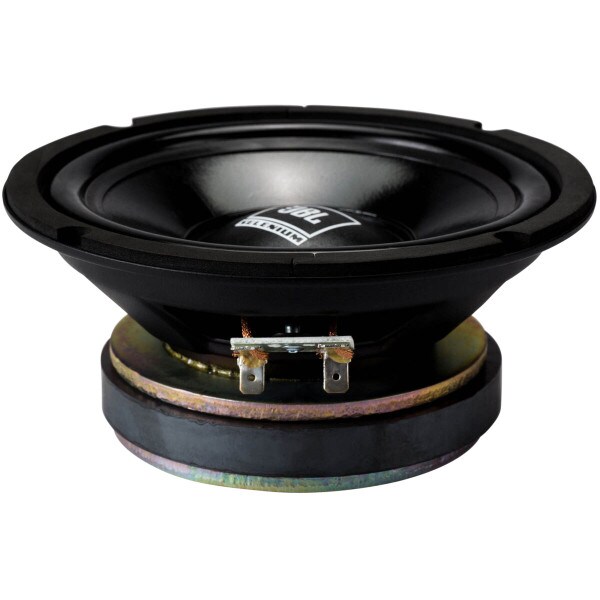

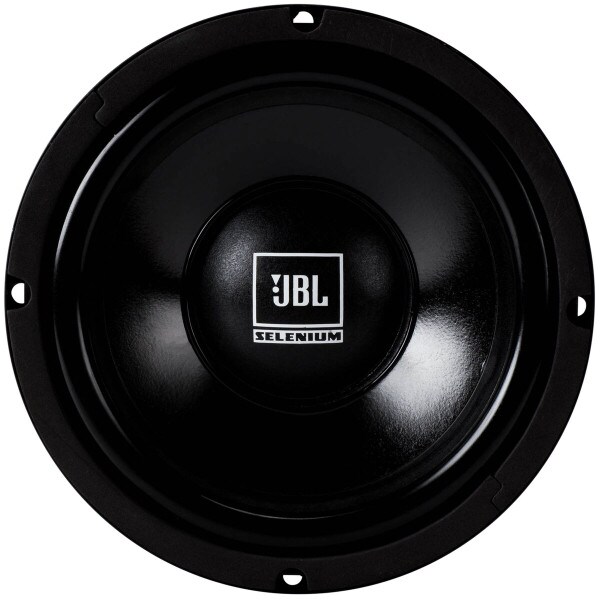

This woofer offers excellent performance in the mid frequency range and is great for sound reinforcement in nightclubs, dancing halls, auditoriums, bands, or for use in studio monitors. Features epoxy painted reinforced steel frame, impregnated foam surround, and impregnated long fiber paper cone.
Product Details | |
|---|---|
| Brand | Selenium |
| Model | 6W4P |
| Part Number | 264-422 |
| Unit of Measure | Each |
| Weight | 3.96 |
Product Specifications | |
|---|---|
| Nominal Diameter | 6" |
| Power Handling (RMS) | 100 Watts |
| Power Handling (MAX) | 200 Watts |
| Impedance | 8Ω |
| Frequency Response | 80 to 9,000Hz |
| Sensitivity | 91dB 2.83V/1m |
| Voice Coil Diameter | 1.25" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 76Hz |
| DC Resistance (Re) | 5.9Ω |
| Voice Coil Inductance (Le) | 0.57mH |
| Mechanical Q (Qms) | 6.7 |
| Electromagnetic Q (Qes) | 0.95 |
| Total Q (Qts) | 0.83 |
| Compliance Equivalent Volume (Vas) | 0.28ft³ |
| Mechanical Compliance of Suspension (Cms) | 0.32mm/N |
| BL Product (BL) | 6.34T·m |
| Diaphragm Mass Inc. Airload (Mms) | 16.9g |
| Maximum Linear Excursion (Xmax) | 2.3mm |
| Surface Area of Cone (Sd) | 238cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Kapton® / Polyimide |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 6.54" |
| Baffle Cutout Diameter | 5.63" |
| Depth | 2.9" |
| # Mounting Holes | 4 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.4ft³ |
| Sealed F3 | 80.8Hz |
| Vented Volume | 0.6ft³ |
| Vented F3 | 57.1Hz |
