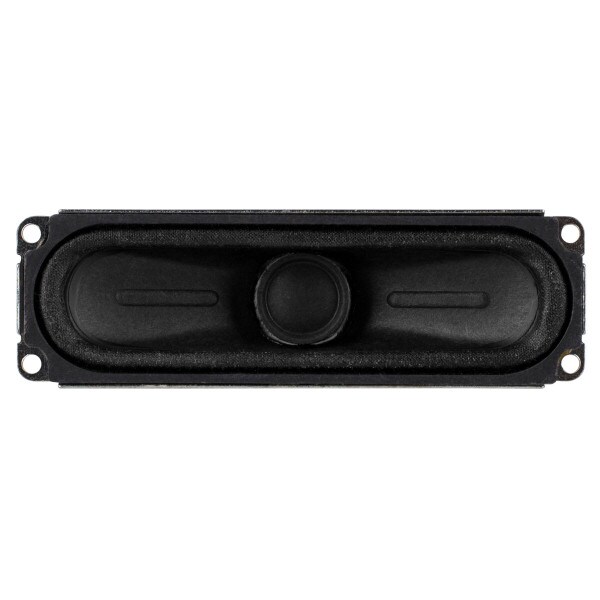

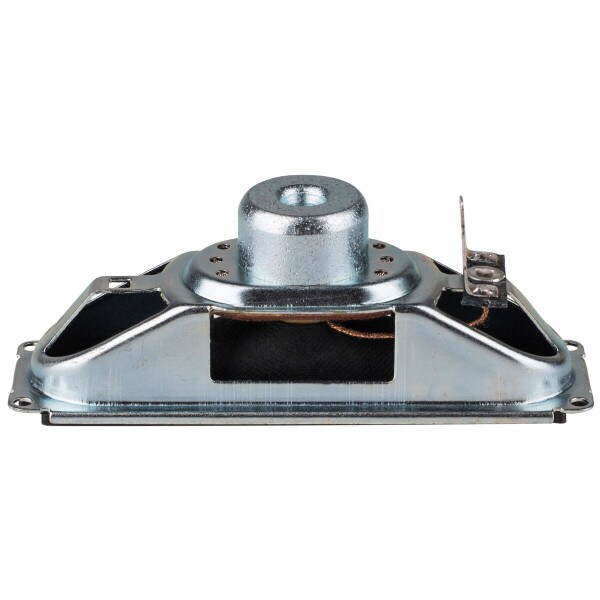

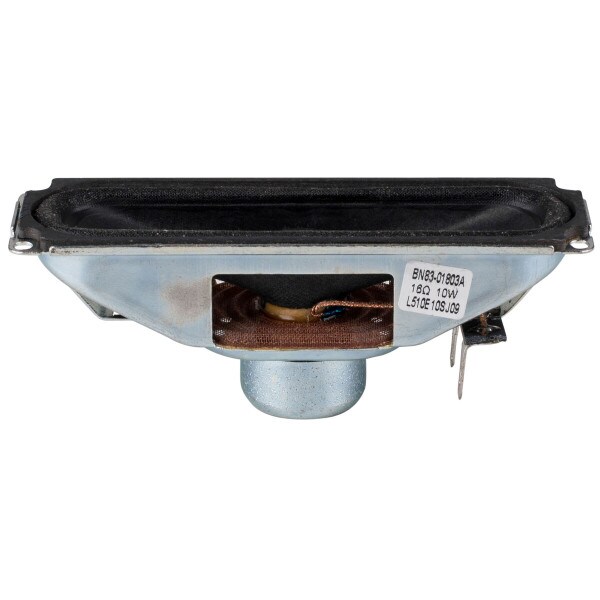

BUYOUT Samsung BN83-01803A 1" x 3-1/2" Paper Cone Full-Range Speaker 16 Ohm

Factory BuyoutsPart # 289-2168
Model: BN83-01803A
1 Question, 5 Answers or
This 16 ohm 1" x 3-1/2" full-range replacement TV speaker is an OEM replacement speaker for various Samsung LCD TVs. With a paper cone, paper voice coil former, and cloth surround this driver will produce natural frequency response with minimal resonances, perfect for the vocal range.

Key Features

  • Paper cone with cloth surround produces minimal resonances for natural response
  • Flat mounting flange make it easy to install on a standard baffle
  • Under spider venting improves voice coil cooling for higher power handling
  • Compact but powerful neodymium motor keeps weight to a minimum
BUYOUT $2.02
Bulk Pricing
Quantity:Qty: 1-9 $2.02/ea
Quantity:Qty: 10-99 $1.78/ea
Quantity:Qty: 100+ $0.98/ea
219 In Stock
Get Notified When Available

We'll send you an email when Samsung BN83-01803A 1" x 3-1/2" Paper Cone Full-Range Speaker 16 Ohm is back in stock or available for preorder.

Order in the next 7 hr 56 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Samsung BN83-01803A 1" x 3-1/2" Paper Cone Full-Range Speaker 16 Ohm

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1" x 3-1/2" speaker, which is part of a massive TV speaker factory buyout from Brazil.

Originally found in many different Samsung LED TVs, the BN83-01803A features a rectangular design with an extremely slim frame making it a great choice for narrow designs such as sound bars and portable speakers. With a paper cone and voice coil former and a cloth surround, this driver will produce smooth response with minimal resonances.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelBN83-01803A
Part Number289-2168
UPC848864048062
Unit of MeasureEach
Weight0.1

Product Specifications

Nominal Diameter1 x 5"
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance16Ω
Frequency Response100 to 15,000Hz
Sensitivity79.5dB 2.83V/1m
Voice Coil Diameter0.625"

Thiele-Small Parameters

Resonant Frequency (Fs)172Hz
DC Resistance (Re)14.53Ω
Voice Coil Inductance (Le)0.26mH
Mechanical Q (Qms)3.4
Electromagnetic Q (Qes)2.6
Total Q (Qts)1.47
Compliance Equivalent Volume (Vas)0.01ft³
Mechanical Compliance of Suspension (Cms)0.844mm/N
BL Product (BL)2.469T·m
Diaphragm Mass Inc. Airload (Mms)1.01g
Surface Area of Cone (Sd)15.9cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialCast Magnesium
Magnet MaterialAlNiCo

Mounting Information

Overall Outside Diameter3.75" x 1.1875"
Baffle Cutout Diameter3.625" x 1"
Depth1.375"
# Mounting Holes4
