The Samba speaker kit delivers reference quality sound with natural high frequency response and powerful low end capability. This premium design produces pinpoint imaging, revealing detail, and flat response with minimal distortion. This kit is ideal for woodworkers, the baffle is precut for the drivers, you just build the enclosure. This kit includes almost everything you need to build a single high-end bookshelf speaker, including: a pre-cut front baffle, drivers, crossover components, and damping material.
Key Features
The Samba speaker kit offers revealing and accurate response with incredible detail
Incredibly flat response throughout the crossover region, ±1.5 dB from 500-15,000 Hz
Full 6 dB of baffle step compensation for powerful bass response, even away from a wall
CNC cut MDF front baffle, you just build the enclosure

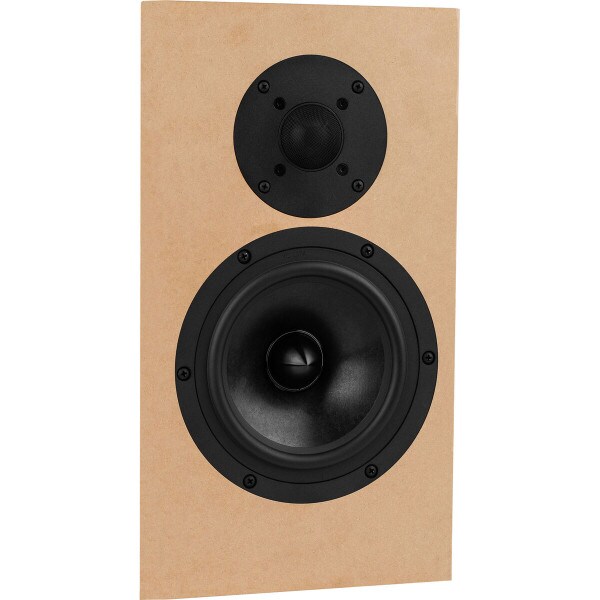

Designed by the engineers at Dayton Audio, the Samba speaker kit is a compact 2-way bookshelf speaker that provides a reference quality sound without the usual high price. The Sambas produce an extremely detailed and accurate sound while still delivering a natural and non-fatiguing quality that is perfect for long listening sessions. Both the woofer and tweeter use low distortion motors and non-resonant diaphragms to deliver accurate sound that allows the speakers seemingly disappear into your listening environment. The Samba speaker kit will be right at home in everything from a high-end recording studio to any audiophile's living room.

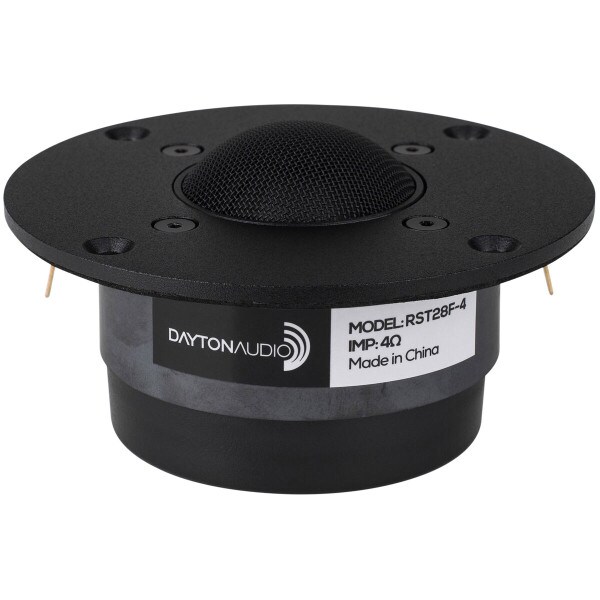

Bass and midrange frequencies are handled by the popular Dayton Audio RS180P-4 7" Reference Paper Woofer. With a reinforced paper cone and low-distortion motor system with dual shorting rings, this driver sets the standards for value in high-performance woofers. High frequency duties go to the Dayton Audio RST28F-4 1-1/8" Reference Series Fabric Dome Tweeter. Designed to be a match for the Reference Series woofers, this tweeter was the obvious choice and with a state-of-the-art Ferrofluid cooled motor system, including copper shorting rings, to ensure that high frequency content is reproduced as transparently as possible, assuring studio-quality performance.

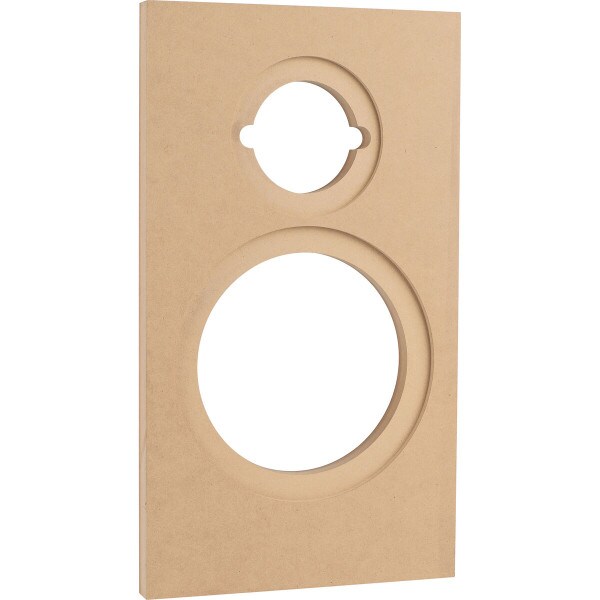

This kit is ideal for any novice woodworker. The enclosure is very easy to build, you only need to create a 8-1/2" W x 15" H x 11" D box and attach the precut baffle. The solid 3/4" MDF baffle is CNC milled to tight tolerances. Recesses for flush mounting the drivers are pre-cut making assembly a snap.

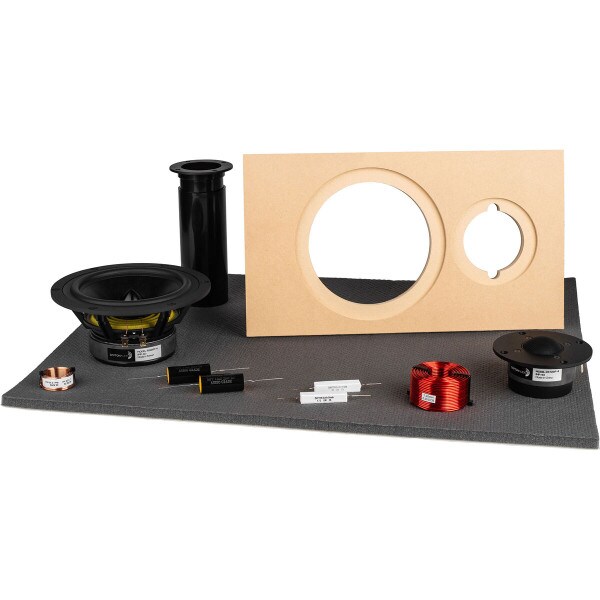

This kit includes nearly everything you need to build a top-notch speaker in no time, including: a knock-down cabinet, drivers, port, damping material, and crossover components.
This kit includes parts to build a single speaker.
Included Components:
Qty
Part Number
Description
1
295-375
Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm
1
275-141
Dayton Audio RST28F-4 1-1/8" Reference Series Fabric Dome Tweeter 4 Ohm
Note: Screws, binding posts, and speaker wire are not included.
Specifications: • Power handling: 70 watts RMS/140 watts max • Frequency response: 40-20,000 Hz • Impedance: 4 ohms • Sensitivity: 87 dB 1W/1m • Dimensions: 15" H x 8.5" W x 11-3/4" D
Note: Crossover components may be substituted with parts of equal or higher quality depending on available inventory.
Samba Speaker Kit Assembly Manual
