  • SPST Round Rocker Switch with Red Illumination 13A 125VAC

SPST Round Rocker Switch with Red Illumination 13A 125VAC

Parts ExpressPart # 060-716

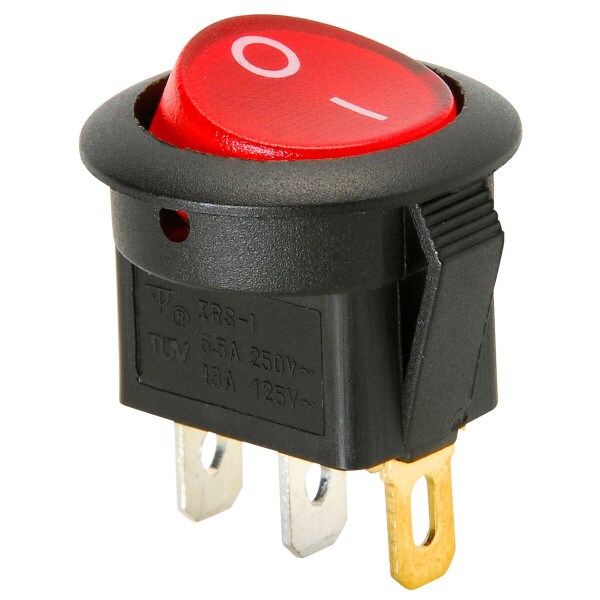

Round illuminated SPST 125 VAC rocker switch with on/off labeling. Specifications: • Current rating: 13A @ 125 VAC, 6.5A @ 250 VAC • Shaft diameter: 20 mm (51/64") • Contacts: 3.
Your Price: $1.99
MSRP: $2.99
Save $1.00 (33%)
Bulk Pricing
Quantity:Qty: 1-9 $1.99/ea
Quantity:Qty: 10+ $1.79/ea
257 In Stock
Get Notified When Available

We'll send you an email when SPST Round Rocker Switch with Red Illumination 13A 125VAC is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

SPST Round Rocker Switch with Red Illumination 13A 125VAC

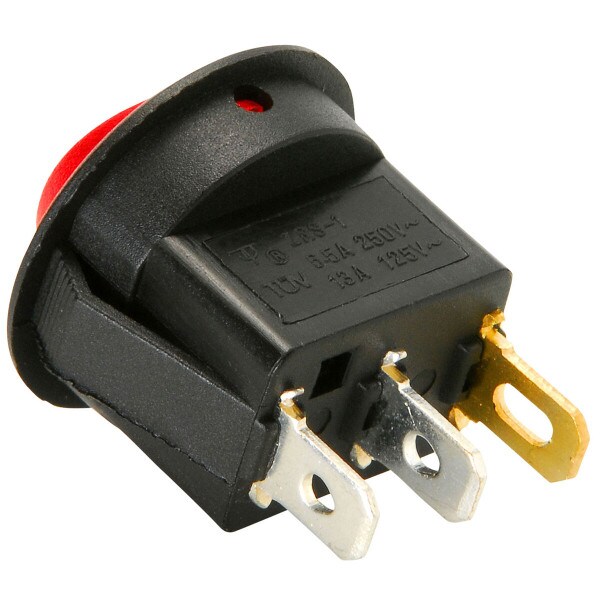

Round illuminated SPST 125 VAC rocker switch with on/off labeling. Power source goes to the silver color outside terminal. Item to be powered by the switch goes to the silver color inside or middle terminal. Bronze color terminal connects to neutral

Specifications: • Current rating: 13A @ 125 VAC, 6.5A @ 250 VAC • Shaft diameter: 20 mm (51/64") • Contacts: 3.

Product Details

BrandParts Express
Part Number060-716
UPC844632076305
Unit of MeasureEach
Weight0.01

Product Specifications

CircuitSPST
Contact Rating @ Voltage13A 125 VAC
IlluminationIlluminated
