SPST NO Momentary 19mm Stainless Steel Waterproof Raised Push Button Tamper Proof Switch 6A 125V

Parts Express
Part #060-653

SPST NO Momentary 19mm Stainless Steel Waterproof Raised Push Button Tamper Proof Switch 6A 125V

Parts Express
Part #060-653
Use this heavy duty, Stainless steel, anti-vandal raised push button momentary switch for outdoor and other extreme condition applications.
Key Features
  • Popular for use in kiosk applications, ticket dispensers, and industrial-type applications
  • Stainless steel body and IP67 rating for extreme conditions
  • Silver contacts for long-lasting connection
  • RoHS certified
  • Includes rubber washer for IP67 rating

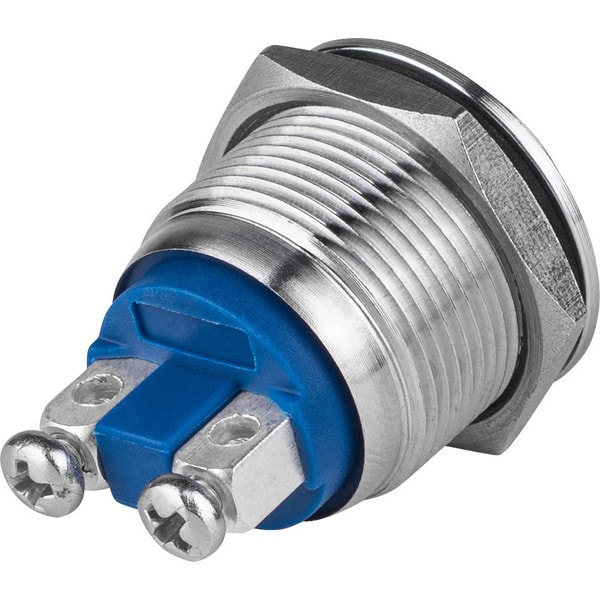

  • Screw terminals for quick connection
  • Easily mounts in a 3/4" hole with included shaft nut
Your Price: $5.49
MSRP: $7.99
Save $2.50 (31%)
Bulk Pricing
Quantity:Qty: 1-9 $5.49/ea
Quantity:Qty: 10+$4.94/ea
Order in the next 0 hr 10 min to ship today. Details

99In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

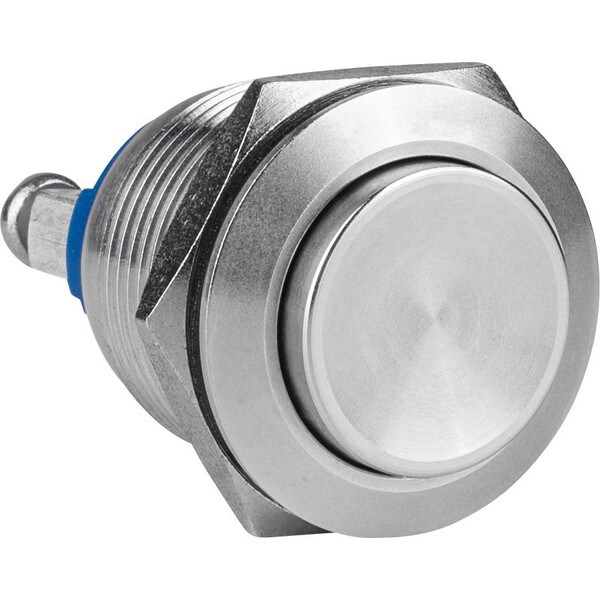

SPST NO Momentary 19mm Stainless Steel Waterproof Raised Push Button Tamper Proof Switch 6A 125V

This anti-vandal pushbutton switch is popular for use in kiosk applications, ticket dispensers and industrial-type applications. The stainless steel body and button stay looking great even with heavy duty use. The switch has an IP67 waterproof rating for extreme conditions indoors or outdoors when used with included rubber washer.

Specifications: Current rating: 3A 250 VAC/6A 125 VAC • Switch total size without screws: 1.1" L x 0.86" Dia. • Shaft size without button: 0.748" Dia. x 0.62" L • Button size: 0.05" H x 0.59" Dia.

Product Details

BrandParts Express
Part Number060-653
UPC848864058993
Unit of MeasureEach
Weight0.05

Product Specifications

CircuitN.O.
Contact Rating @ Voltage6A 125 VAC
IlluminationNon-Illuminated
