  • Spring Loaded 4-1/2" Round Terminal Cup

BUYOUT Spring Loaded 4-1/2" Round Terminal Cup

Factory BuyoutsPart # 269-2192
1 Question, 7 Answers or

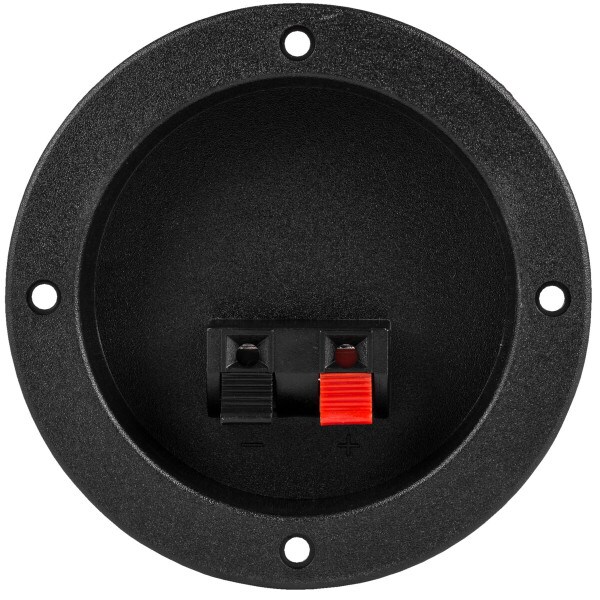

This 4-1/2" round terminal cup has spring loaded terminals for quick and easy wire connection. Thanks to the 4 mounting holes in the flange this terminal is easy install into a 3-1/2" hole.

Key Features

  • 4-1/2" terminal cup mounts in a 3-1/2" hole
  • Includes a 1.75A auto reset circuit breaker
  • High quality spring loaded terminals provides quick and easy wire connection
  • Wires terminated with 0.205" female disconnect terminals
BUYOUT $0.98
Bulk Pricing
Quantity:Qty: 1-3 $0.98/ea
Quantity:Qty: 4-49 $0.80/ea
Quantity:Qty: 50-119 $0.70/ea
Quantity:Qty: 120+ $0.60/ea
Only 9 In Stock
Get Notified When Available

We'll send you an email when Spring Loaded 4-1/2" Round Terminal Cup is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Spring Loaded 4-1/2" Round Terminal Cup

This 4-1/2" round terminal cup has spring loaded terminals for quick and easy wire connection. Thanks to the 4 mounting holes in the flange, this terminal is easy to install into a 3-1/2" hole.

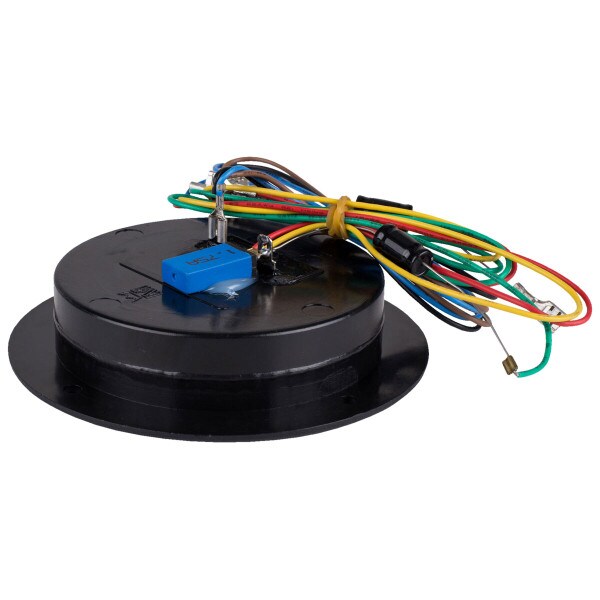

The rear of the cup includes a 1.75A (125 watt) auto reset circuit breaker, and three sets of speaker leads terminated with 0.205" female quick disconnects for easy connection to drivers. One set of leads includes a 4.7 µF 100 V capacitor creating a 6 dB per octave high pass at 4,200 Hz to an 8 ohm load. Another set of leads includes a 2.2 µF 100 V capacitor creating a 6 dB per octave high pass at 9,500 Hz to an 8 ohm load. The third set is a direct connection from the circuit breaker to the driver. All of which can easily be removed.

Dimensions : Outside diameter: 4-1/2", Cutout: 3-1/2"

Special purchase -- limited quantities available!

Product Details

BrandFactory Buyouts
Part Number269-2192
UPC848864026619
Unit of MeasureEach
Weight0.15

Product Specifications

ConfigurationIncludes Connector Dish
Crossover TypeHigh Pass
