BUYOUT Spring Loaded 4-1/2" Round Terminal Cup

Factory Buyouts
Part #269-2194

BUYOUT Spring Loaded 4-1/2" Round Terminal Cup

Factory Buyouts
Part #269-2194

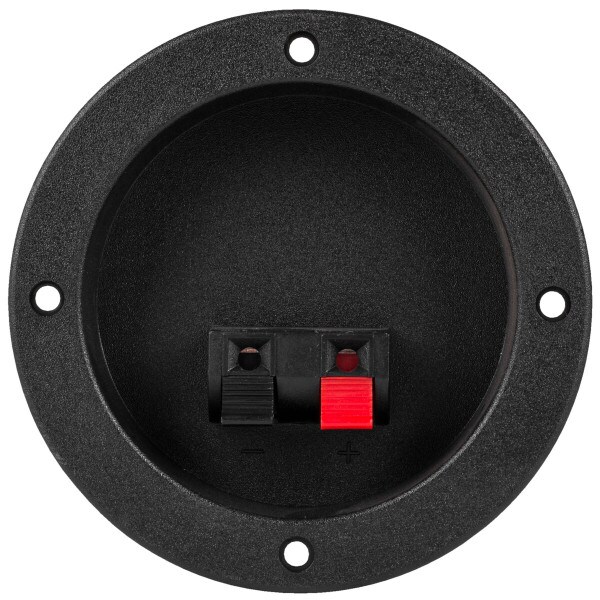

This 4-1/2" round terminal cup has spring loaded terminals for quick and easy wire connection. Thanks to the 4 mounting holes in the flange this terminal is easy to install into a 3-1/2" hole.
Key Features
  • 4-1/2" terminal cup mounts in a 3-1/2" hole
  • Includes a 1.4A auto reset circuit breaker
  • High quality spring loaded terminals provides quick and easy wire connection
  • Wires terminated with 0.205" female disconnect terminals
BUYOUT $0.98
Bulk Pricing
Quantity:Qty: 1-3 $0.98/ea
Quantity:Qty: 4-49 $0.80/ea
Quantity:Qty: 50-119 $0.70/ea
Quantity:Qty: 120+$0.60/ea
Order in the next 2 hr 16 min to ship today. Details

587In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Spring Loaded 4-1/2" Round Terminal Cup

This 4-1/2" round terminal cup has spring loaded terminals for quick and easy wire connection. Thanks to the 4 mounting holes in the flange this terminal is easy to install into a 3-1/2" hole.

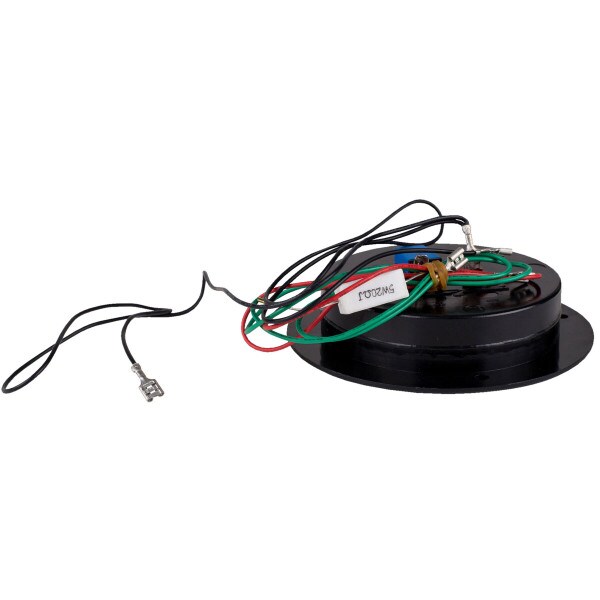

The rear of the cup includes a 1.75A (125 watt) auto reset circuit breaker, and three sets of speaker leads terminated with 0.205" female quick disconnects for easy connection to drivers. One set of leads includes a 4.7 µF 100 V capacitor creating a 6 dB per octave high pass at 4,200 Hz to an 8 ohm load. Another set of leads includes a 5 watt 20 ohm resistor which is ideal for protecting a piezo super tweeter. The third set is a direct connection from the circuit breaker to the driver. All of which can easily be removed.

Dimensions : Outside diameter: 4-1/2", Cutout: 3-1/2"

Special purchase -- limited quantities available!

Product Details

BrandFactory Buyouts
Part Number269-2194
UPC848864026626
Unit of MeasureEach
Weight0.15

Product Specifications

ConfigurationIncludes Connector Dish
Crossover TypeHigh Pass
