  • Rotary Switch 2 Pole 6 Position Shorting

CLEARANCE Rotary Switch 2 Pole 6 Position Shorting

Parts ExpressPart # 023-666
This 2 pole 6 position shorting rotary switch can be used with projects or replace damaged and warn out rotary switches. Shorting contacts rated to 125 VAC at 300 mA. Steel ball bearing control. Mounting hole cut-out: 3/8". Shaft diameter: 11/32".
Get Notified When Available

We'll send you an email when Rotary Switch 2 Pole 6 Position Shorting is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

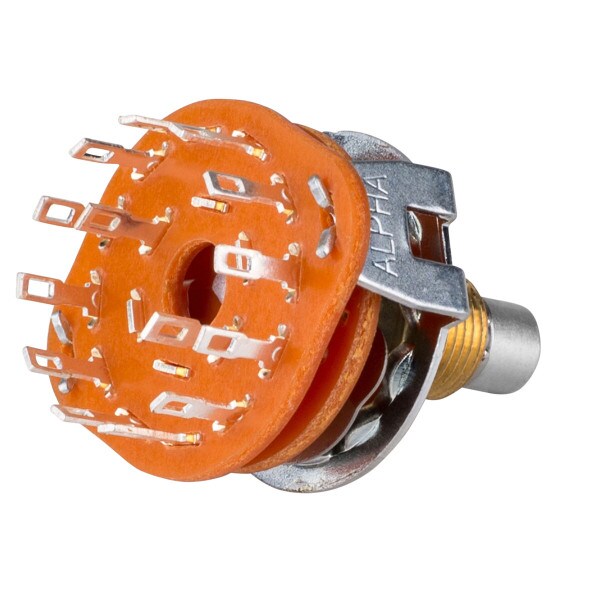

Rotary Switch 2 Pole 6 Position Shorting

This 2 pole 6 position shorting rotary switch can be used with projects or replace damaged and warn out rotary switches. Shorting contacts rated to 125 VAC at 300 mA. Steel ball bearing control. The shaft is 0.59" (15 mm) long, which includes the 0.2" x 0.25" Dia. (5 x 6.7 mm) stem, and an M8 bushing. Mounting hole cut-out: 3/8" (9.55 mm). Shaft diameter: 11/32" (8.73 mm).

Product Details

BrandParts Express
Part Number023-666
UPC844632080142
Unit of MeasureEach
Weight0.066

Product Specifications

CircuitMulti-Circuit
IlluminationNon-Illuminated
