Rolls RA2100b Power Amplifier 2U Rack Mount 2 x 100W at 4 Ohms / 200W at 70V

RollsPart # 245-1132
Model: RA2100b

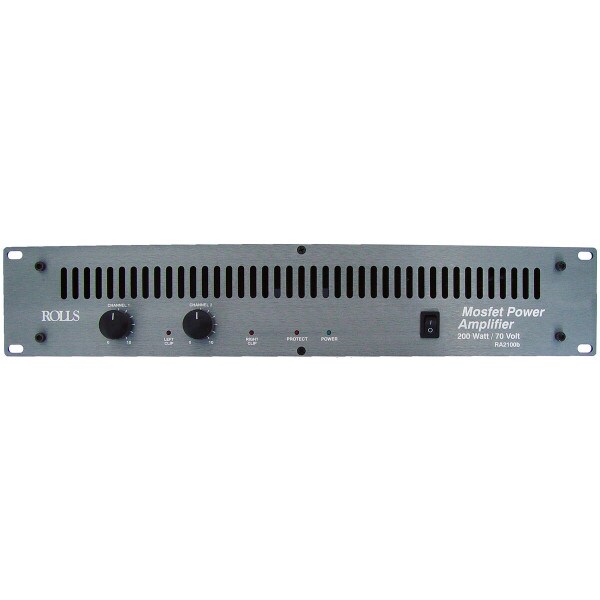

The RA2100b by Rolls is a workhorse stereo 100W/channel RMS power amplifier in a standard 2 rack space format, intended for professional audio and distributed musical applications.

Key Features

  • 1/4" or RCA inputs
  • Binding post speaker outputs
  • Fault and thermal protection circuits
  • Made in the USA
Your Price: $449.00
+ FREE SHIPPING
MSRP: $499.00
Save $50.00 (10%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Rolls RA2100b Power Amplifier 2U Rack Mount 2 x 100W at 4 Ohms / 200W at 70V is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Rolls RA2100b Power Amplifier 2U Rack Mount 2 x 100W at 4 Ohms / 200W at 70V

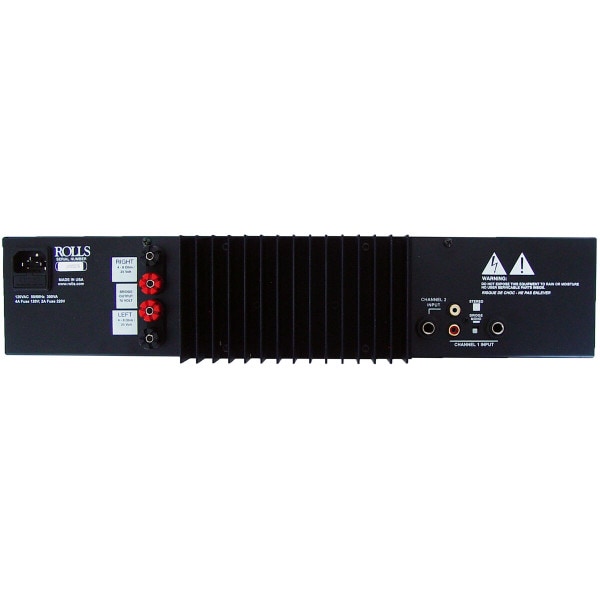

The RA2100b features 100 watts per channel RMS into four ohms, 85 Watts per channel into eight ohms, and for the contractor - 70V/eight ohms. The unit also features MOSFET drivers in a voltage and current gain circuit and a one-second input turn-on delay. The RA2100b will drive 25V speaker lines directly from each channel, or a 70V line in bridge mode. AC power adapter included. Made in the USA.

For more than two decades, those in the know have turned to Rolls for the highest quality, reliability, and value. Rolls is an innovative company specializing in domestically manufactured signal interface accessories, mixers, amplifiers, and processors for the audio professional.

Specifications: • Frequency response: 70 - 30,000 Hz • Output power: 100W RMS x 2 (@ 4 ohms); 85W RMS x 2 (@ 8 ohms); 200W RMS x 1 (bridged @ 8 ohms or 70V) • THD: <0.05% (500Hz @ 1W) • Signal-to-noise ratio: >95 dBA • Dimensions: 19" x 3.5" x 7.5" • Weight: 12 lbs.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandRolls
ModelRA2100b
Part Number245-1132
UPC675889210019
Unit of MeasureEach
Weight11.65

Product Specifications

Power Output (RMS @ 70V)101W to 200W
Weight Range10 to 19 lbs.
