Rolls MO2020 Test Oscillator Variable Frequency Sine/Square Wave Generator

RollsPart # 245-1068
Model: MO2020

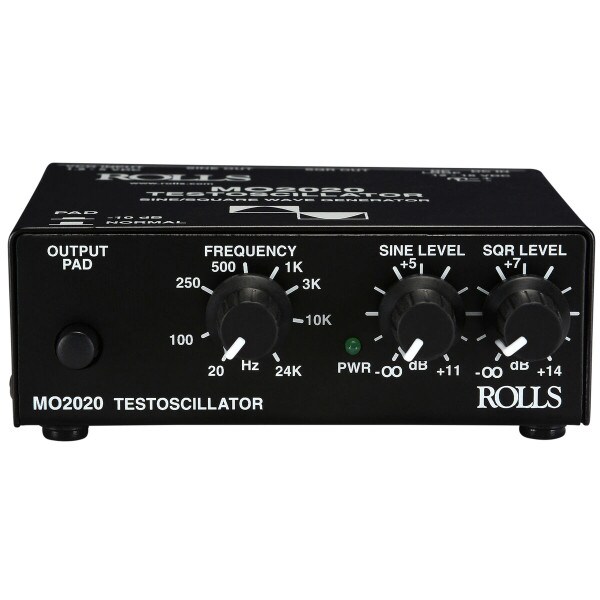

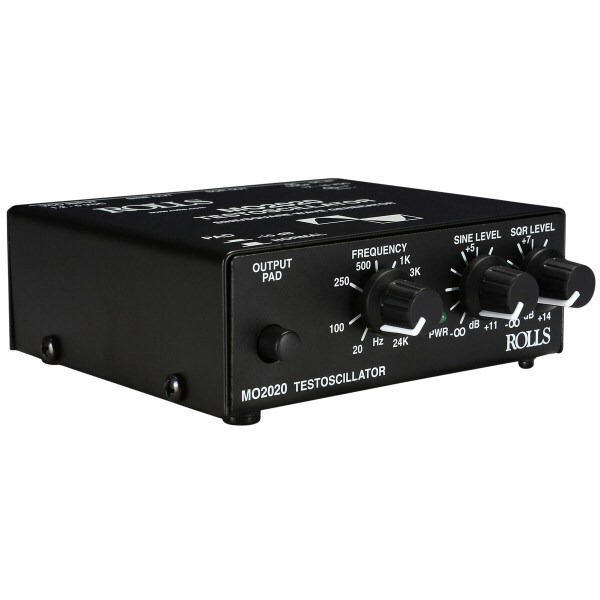

With sine and square wave capability, variable frequency, and being near pocket-sized, the MO2020 will quickly earn a spot in your toolbox -- on top, where you can reach it quickly. It's that good.

Key Features

  • Frequency range from 20 Hz to 24 kHz
  • 1/4" TS outputs
  • -10 dB pad for referencing
  • Power loop-thru for passing power to additional devices
Your Price: $109.00
+ FREE SHIPPING
MSRP: $139.00
Save $30.00 (22%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Rolls MO2020 Test Oscillator Variable Frequency Sine/Square Wave Generator is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Rolls MO2020 Test Oscillator Variable Frequency Sine/Square Wave Generator

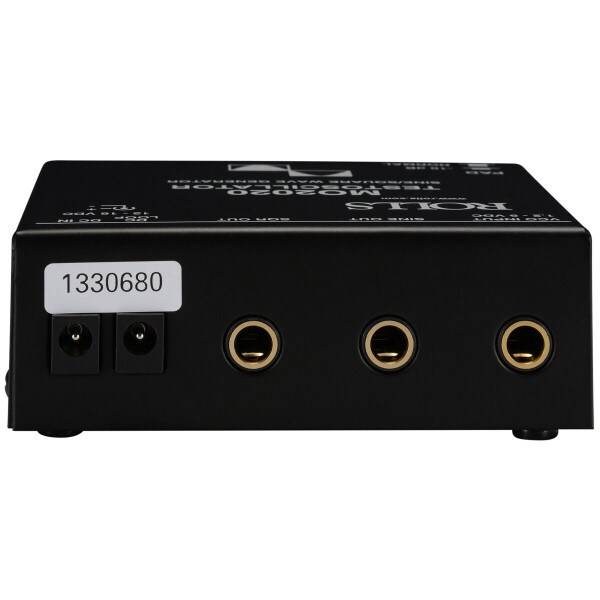

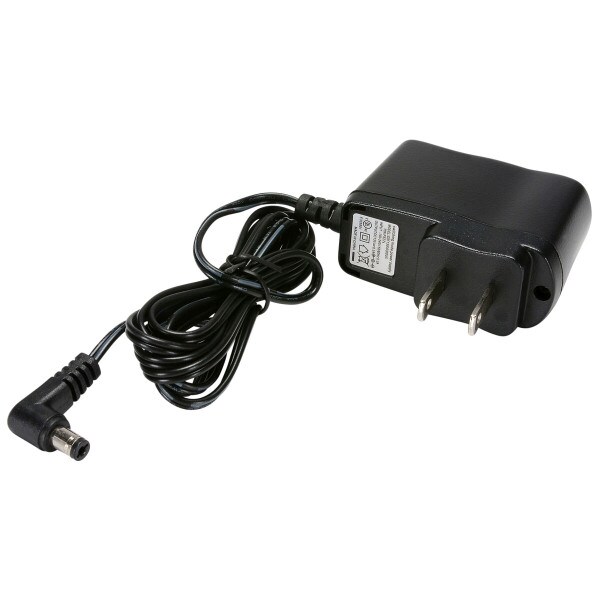

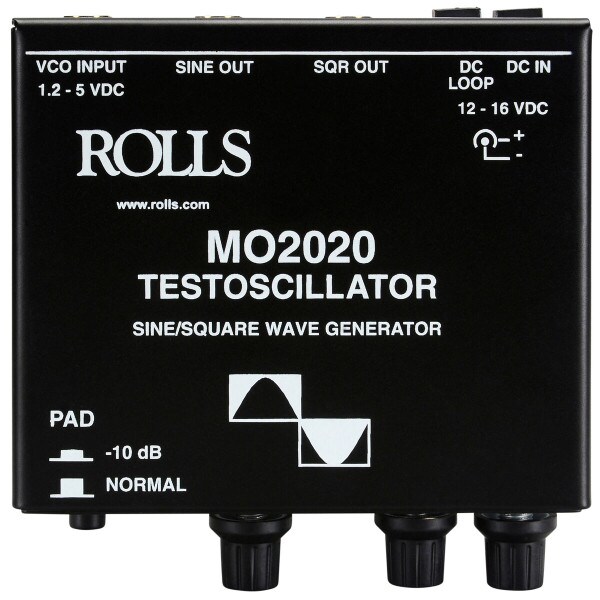

The MO2020 by Rolls provides a sine and square wave output on two 1/4" jacks. The frequency range is variable from 20 Hz to 24 kHz, it accepts a 1.2 to 5 volt DC input on a 1/4" jack for external frequency control, and a 10 dB output pad is included to provide a -10 dB reference signal. AC power adapter included. Made in the USA.

Specifications: • Output Level: +11 dB Sine, +14 dB Square • Output impedance: 100 ohms • THD (Sine): <1% • Dimensions: 4.25" x 3.75" x 1.75" • Power input: 12-16 VDC 50 mA.

For more than two decades, those in the know have turned to Rolls for the highest quality, reliability, and value. Rolls is an innovative company specializing in domestically manufactured signal interface accessories, mixers, amplifiers, and processors for the audio professional.

Product Details

BrandRolls
ModelMO2020
Part Number245-1068
UPC675889202007
Unit of MeasureEach
Weight1.5
