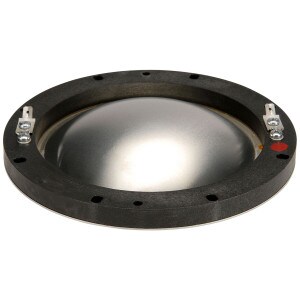

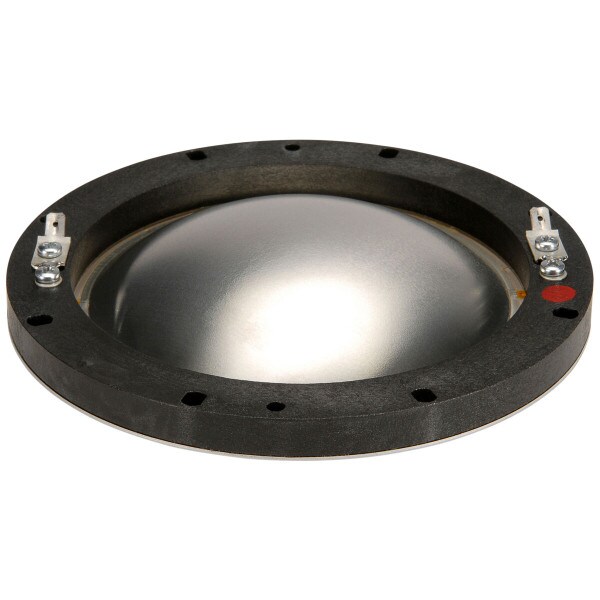

Radian 1292-8 Diaphragm Fits TAD 4001 and 4002 8 Ohm

Radian AudioPart # 294-730
Model: 41423
Radian Audio Engineering, Inc. manufactures premium replacement diaphragms for TAD 2" throat exit compression drivers. The Radian Model 1292-8 replacement diaphragm extends the usable frequency response of TAD compression drivers to a reliable full-range response of 600 Hz to 20 kHz.

Key Features

  • Precision formed from heat-treated, structural aluminum
  • Copper-clad aluminum voice coil with a Kapton&#174 former
  • Mylar&#174 surround
  • Smooth, low distortion, linear output with excellent transient response
Your Price: $309.98
+ FREE SHIPPING
MSRP: $518.99
Save $209.01 (40%)
Bulk Pricing
Quantity:Qty: 1-3 $309.98/ea
Quantity:Qty: 4+ $303.67/ea
Only 2 In Stock
Get Notified When Available

We'll send you an email when Radian 1292-8 Diaphragm Fits TAD 4001 and 4002 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Radian 1292-8 Diaphragm Fits TAD 4001 and 4002 8 Ohm

Radian Audio Engineering, Inc. manufactures premium replacement diaphragms for TAD 2” throat exit compression drivers. The Radian Model 1292-8 replacement diaphragm extends the usable frequency response of TAD compression drivers to a reliable full-range response of 600 Hz to 20 kHz. By replacing the original diaphragm, an old magnet structure can be used to rival the performance of a current TAD compression driver. Each replacement diaphragm provides high efficiency and accurate reproduction with extended bandwidth.

Compression domes are precision formed from heat-treated, structural aluminum alloy and bonded to a copper-clad aluminum voice coil with a Kapton® former utilizing proprietary tooling. Aluminum has a high strength-to- weight ratio providing low-distortion, high fidelity response that delivers clear, crisp music and speech for theatrical, auditorium, stadium and church installations.

The suspension utilizes a Mylar® surround, rather than a metal one-piece dome and surround, which enhances the replacement diaphragm’s reliability and eliminates fatigue stresses that destroy other compression driver diaphragms. The Mylar® surround also provides good dampening of the voice coil/ diaphragm assembly for smooth, low distortion, linear output with excellent transient response.

To ensure longer diaphragm life, Radian's high temperature voice coil former and advanced adhesives permit each replacement diaphragm to sustain high RMS and peak power levels, equivalent or better than the original. If necessary, the diaphragm/voice coil assembly may be rapidly replaced in the field. The self aligning diaphragm assembly assures simple installation and accurate alignment with the same polarity as the original.

As with all Radian Premium Replacement Diaphragms, the 1292 is also Ferro-Fluid compatible enabling even greater output and power handling. Unparalleled power handling, high frequency performance, reliability and low distortion make Radian premium replacement diaphragms the preferred choice for loudspeaker repair centers, consultants, sound system designers, contractors and engineers worldwide.

Product Details

BrandRadian Audio
Model41423
Part Number294-730
UPC844632053474
Unit of MeasureEach
Weight0.4
