  • RG-6/U Solid Copper 18 AWG Quad Shield CM Coax Cable Black 1 ft.

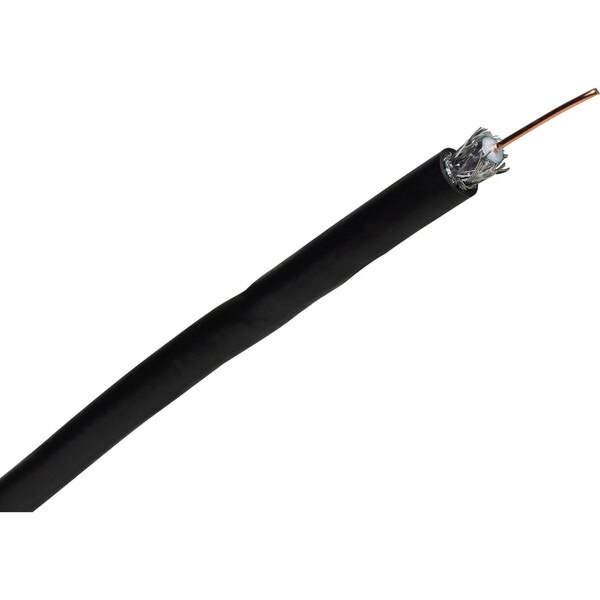

RG-6/U Solid Copper 18 AWG Quad Shield CM Coax Cable Black 1 ft.

Vertical CablePart # 102-1591
Read 3 Reviews or

The Vertical Cable RG-6/U Quad Shield coaxial cable uses a solid bare copper center conductor for maximum signal transfer, as well as quad shielding, meeting the high standards of satellite and cable companies requirements.

Key Features

  • CM rated for in-wall use
  • Fully sweep-tested to 3000mHz
  • 18 AWG bare copper core for ultimate signal transfer
  • 60% 40% aluminum braided shield for maximum interference protection
  • ETL Listed, RoHS compliant
Your Price: $0.25
MSRP: $0.39
Save $0.14 (36%)
Bulk Pricing
Quantity:Qty: 1-99 $0.25/ea
Quantity:Qty: 100+ $0.23/ea
866 In Stock
Get Notified When Available

We'll send you an email when RG-6/U Solid Copper 18 AWG Quad Shield CM Coax Cable Black 1 ft. is back in stock or available for preorder.

Order in the next 11 hr 52 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

RG-6/U Solid Copper 18 AWG Quad Shield CM Coax Cable Black 1 ft.

Many satellite and cable companies require a pure center conductor to meet their high current needs from outside to the main receiver. The Vertical Cable RG-6 quad shield coaxial cable meets these requirements. The quad shield is an added bonus keeping out stray signals from local broadcast and other transmitting devices that interfere with CATV signals. The cable's (UL) CM rating enables it to be safely installed in walls and ceilings.

Specifications: Length: • 1 ft. • Coax wire type: RG-6/U • Nominal diameter: 7.6mm • Center conductor: 18 AWG bare copper • Shielding: One Aluminum/PET-foil Bonded layer, one Aluminum Braid Wire layer 0.16x4x16 60% braid, one Aluminum/PET/Aluminum-Foil layer, and one Aluminum Wire 0.16x3x16 40% braid • Outer jacket; Black PVC • Insulation: 4.57 mm foam polyethylene • Capacitance: 52 pF/ft. (52 +/-2 pF/m) • Impedance: 75 ohms • Industry approvals: CM, ETL, and RoHS compliant.

Product Details

BrandVertical Cable
Part Number102-1591
UPC848864070247
Unit of MeasureEach
Weight0.0379

Product Specifications

Cable RatingCM Rated
Coaxial Cable TypeRG-6/U Quad Shield
Jacket ColorBlack
