The DMT-09-01-27 makes it possible to put a piezoelectric buzzer in the smallest spaces. This tiny element can be used as a speaker, but requires an external oscillating circuit for buzzer operation.
Key Features

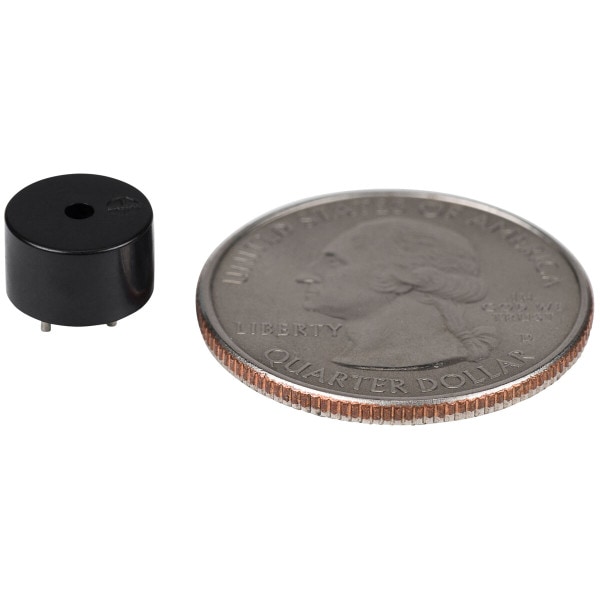

  • Less than 3/8" in diameter -- fits almost anywhere

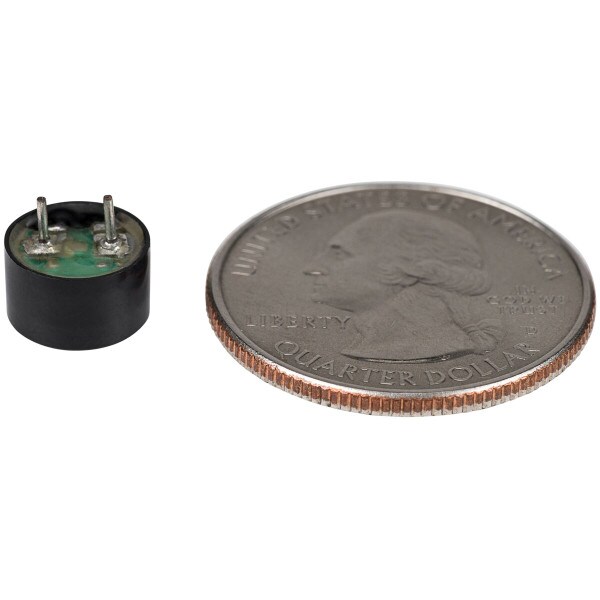

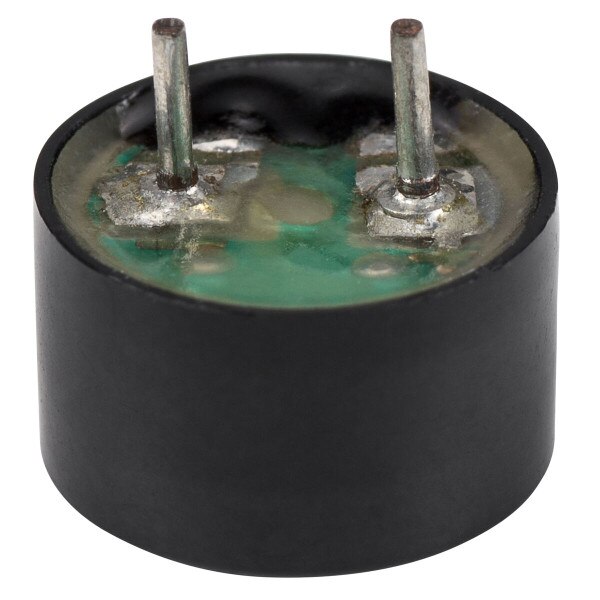

  • Solder pins make it easy to solder into your perforated PC boards
BUYOUT $1.51
MSRP: $4.99
Save $3.48 (70%)
Bulk Pricing
Quantity:Qty: 1-9 $1.51/ea
Quantity:Qty: 10-49 $1.29/ea
Quantity:Qty: 50+$0.97/ea
Order in the next 3 hr 10 min to ship today. Details

257In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

RDI Piezoelectric Sounder Buzzer Element DMT-09-01-27

The DMT-09-01-27 fits in the smallest devices such as pocket size multimeters, travel alarm clocks, cameras, and any other projects requiring a high pitched sound in a small package. Plastic enclosure protects the element against warping from outside pressure. Solid soldering pins will fit into most perforated boards, breadboards, and experimental boards. This way you can permanently mount, or plug and unplug to use repeatedly in your experimental projects.

Specifications:• Dimensions: 9.25 mm W x 5.5 mm H • Pin size 0.6 mm W x 4.5 mm L • Pin gap: 4 mm W • Element hole: 1.8 mm W • Rated voltage: 1.5 VDC • Coil resistance: 5.5 ohms • Buzzer operation requirements: External oscillating circuit.

Product Details

BrandFactory Buyouts
Part Number329-052
UPC848864025131
Unit of MeasureEach
Weight0.01
